Comprehensive Model Analysis for Car Rental Business by Monique Snoeck
undefined

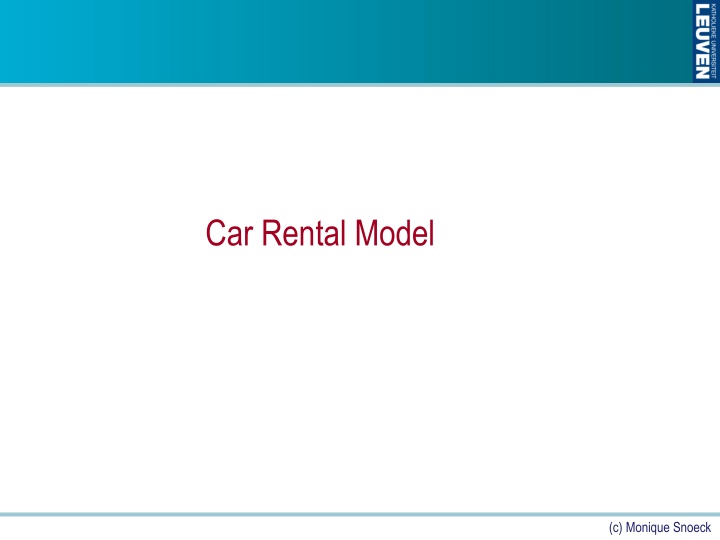

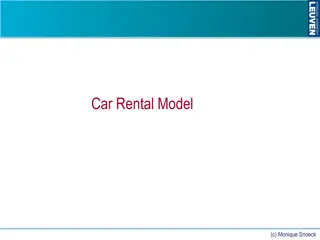

Car Rental Model
Generic Domain Model 1
(c) Monique Snoeck
Generic Domain Model 2
(c) Monique Snoeck
Business
Unit
Product
Type in
Branch
Transaction
Intention
Customer
Product
Effective
Transaction
Product
Type
Generic Domain Model 3
(c) Monique Snoeck
Business
Unit
Product
Type in
Branch
Transaction
Intention
Customer
Product
Effective
Transaction
Product
Type
Transaction
Intention Type
Effective
Transaction Type
Generic Domain Model 1
(c) Monique Snoeck
Impossible to have a single product type with
different prices per branch
Generic Domain Model 2
(c) Monique Snoeck
Business
Unit
Product
Type in
Branch
Transaction
Intention
Customer
Product
Effective
Transaction
Product
Type
Allows for different rental conditions for same type of cars in different
branches.
Problem: "Owning branch" of a car is not modelled.
Generic Domain Model 3
(c) Monique Snoeck
Business
Unit
Product
Type in
Branch
Transaction
Intention
Customer
Product
Effective
Transaction
Product
Type
Transaction
Intention Type
Effective
Transaction Type
IF no need for different types of
transactions, then this one is
overshooting ...
Exercise: Car Rental Agency (e.g. AVIS)
(c) Monique Snoeck
Business
Unit
Product
Type in
Branch
Transaction
Intention
Customer
Product
Effective
Transaction
ALLOCATION
Product
Type
CAR MODEL
IN BRANCH
BRANCH
RESER
VATION
CUSTOMER
RENTAL
CAR
CAR
MODEL
Car
Ownership
Car
Location
Price
Transaction
Type
Reuse of Behaviour (Car Rental)
E
v
e
n
t
s
(
=
R
o
w
s
i
n
t
h
e
O
E
T
)
R
e
n
a
m
e
c
r
e
a
t
e
_
p
r
o
d
u
c
t
_
t
y
p
e
c
r
e
a
t
e
_
c
a
r
_
m
o
d
e
l
,
modify_product_type
modify_car_model
....
R
e
f
i
n
e
a
b
n
o
r
m
a
l
_
r
e
t
u
r
n
t
o
t
a
l
_
l
o
s
s
return_damaged.
A
d
d
r
e
p
a
i
r
D
r
o
p
.
.
.
(c) Monique Snoeck
Refine Life cycle expressions (Car Rental)
product = create_product .
[( modify_product + allocate_product + invoice + receive_ payment +
end_usage)*
(start_usage. (modify_conditions)* . (normal _return + abnormal_return))*]
.end_product
Becomes
car = buy_car .
[( modify_car_details + allocate_car + invoice + receive_ payment +
end_rental)*
(rent . (change_return_date)* .(normal_return + return_damaged. repair))*
.(1 + (rent . (change_ return_date)* .total_loss)]
. end_car
(c) Monique Snoeck
Monique Snoeck presents a detailed analysis of generic domain models for car rental operations, highlighting key challenges and considerations. The study covers different transaction types, branch operations, and product configurations, providing insights into effective business unit strategies. The exercise on a car rental agency brings practical application to the theoretical models discussed.
