  1. Paragon: Collaborative Speculative Loop Execution on GPU and CPU Mehrzad Samadi1 Amir Hormati2 Janghaeng Lee1 and Scott Mahlke1 1University of Michigan -Ann Arbor 2Microsoft Research, Microsoft University of Michigan 1 Electrical Engineering and Computer Science

  2. Amdahls Law GPGPU may have <100x speedup but... 50% 50% NO GPU utilization GPU Executable Even 1000x here does NOT bring more than 2x in overall NO GPU utilization Execution Time University of Michigan 2 Electrical Engineering and Computer Science

  3. General Purpose Computing on GPU Limitation of Massive Data-Parallelism Linear array access NO Indirect array access NO Pointers Leaves GPUs underutilized GPUs are not so much generalized GPU Executable How can GPUs be more GENERAL? University of Michigan 3 Electrical Engineering and Computer Science

  4. Motivation More Generalization Reduce Sections Non-Linear array access Indirect array access Array access through pointers for(x=0; x<nx; x++){ xr = x % squaresize[XUP]; yr = y % squaresize[YUP]; i = xr + yr; lattice[i].x = x; lattice[i].y = y; } NO GPU utilization for(y=0; y<ny; y++) for(i=1; i<m; i++) for(j=iaL[i]; j<iaL[i+1]-1; j++) x[i] = x[i] - aL[j] * x[jaL[j]]; *c = *a + *b; a++; b++; c++; for(int i=0; i<n; i++){ Difficult for programmers to verify Loop-Carried Dependencies } University of Michigan 4 Electrical Engineering and Computer Science

  5. Motivation More Generalization Reduce Sections Non-Linear array access Indirect array access Array access through pointers NO GPU utilization Difficult for programmers to verify Loop-Carried Dependencies University of Michigan 5 Electrical Engineering and Computer Science

  6. Paragon Execution Loop 2 Sequential Loop 1 Loop 3 Sequential Sequential DO-ALL Possibly-Parallel DO-ALL Sequential CPU Sequential Sequential L2 CPU L3 L1 L2 GPU Conflict Check University of Michigan 6 Electrical Engineering and Computer Science

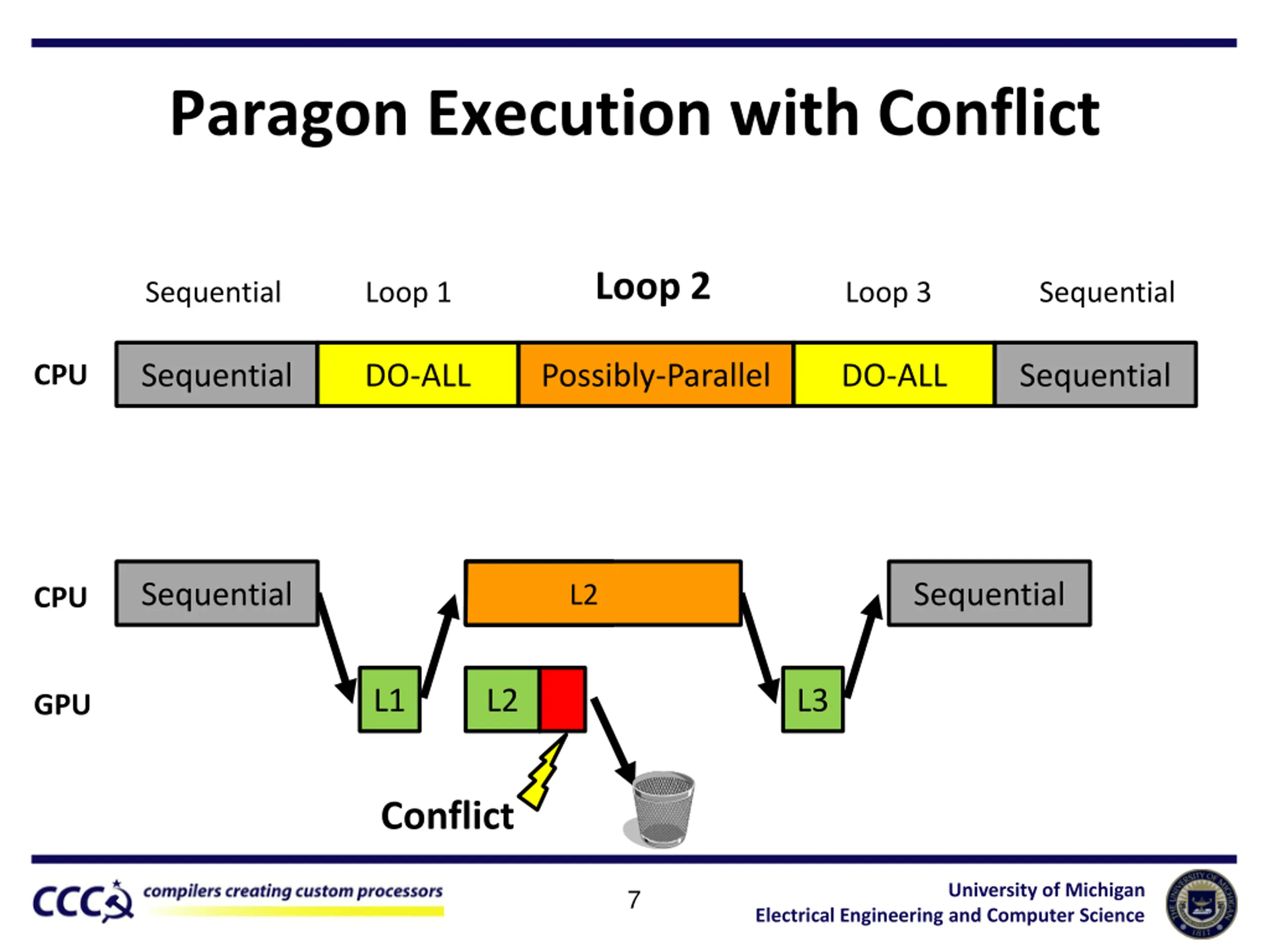

  7. Paragon Execution with Conflict Loop 2 Sequential Loop 1 Loop 3 Sequential Sequential DO-ALL Possibly-Parallel DO-ALL Sequential CPU Sequential Sequential L2 CPU L1 L2 L3 GPU Conflict University of Michigan 7 Electrical Engineering and Computer Science

  8. Paragon Process Flow Input: Sequential Code Offline Compilation Runtime Kernel Management Loop Classification Profiling Instrumentation Conflict Management Unit Execution without Profiling CUDA + pThread University of Michigan 8 Electrical Engineering and Computer Science

  9. Offline Compilation Loop classification Sequential Loops Dependence determined at compile-time Assign to CPU statically DO-ALL Loops Assign to GPU statically Possible DO-ALL Loops Dependence can be determined at RUNTIME University of Michigan 9 Electrical Engineering and Computer Science

  10. Runtime Profiling Spawns thread on CPU Sequential execution thread Monitoring thread Keeps track of memory foot print Marks loop Sequential If many conflicts Parallelizable If no/few conflicts Assigned to CPU and GPU University of Michigan 10 Electrical Engineering and Computer Science

  11. Conflict Detection - Logging Lazy conflict detection Allocate memory when executing kernel write-set for store read-set for load int C_wr_log[sizeof_C]; bool C_rd_log[sizeof_C]; for (i = tid; i < N; i += ThreadCnt){ idx = I[i]; C[idx] = A[idx] + B[idx]; for (i = 0; i < N; i++){ idx = I[i]; C[idx] = A[idx] + B[idx]; AtomicInc(C_wr_log[idx]); } } University of Michigan 11 Electrical Engineering and Computer Science

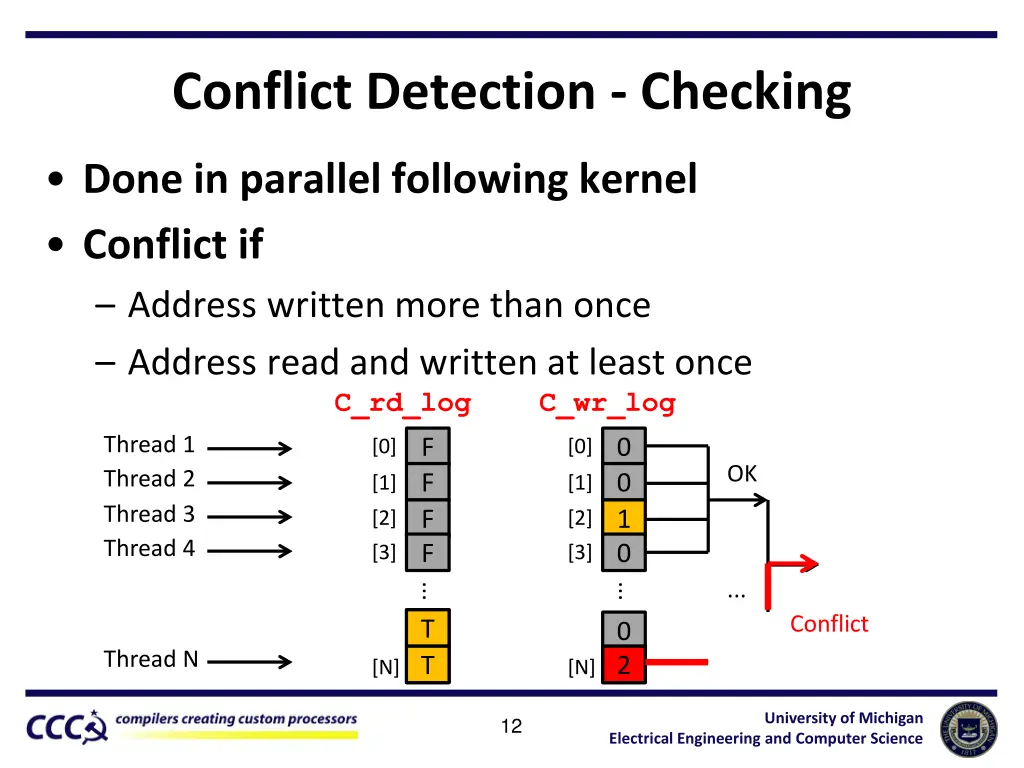

  12. Conflict Detection - Checking Done in parallel following kernel Conflict if Address written more than once Address read and written at least once C_rd_log C_wr_log Thread 1 Thread 2 Thread 3 Thread 4 F F F F 0 0 1 0 [0] [0] OK [1] [1] [2] [2] [3] [3] ... ... ... Conflict F T 0 1 2 Thread N F T [N] [N] University of Michigan 12 Electrical Engineering and Computer Science

  13. Experimental Setup CPU Intel Core i7 GPU NVIDIA GTX 560 with 2GB DDR5 Benchmark Loops with pointers FDTD, Siedel, Jacobi2d, GEMM, TMV Indirect/Non-Linear access Saxpy, House, Ipvec, Ger, Gemver, SOR, FWD University of Michigan 13 Electrical Engineering and Computer Science

  14. Results for Pointer Access GPU Paragon CPU 4 140X CPU 2 100 Speedup compared to sequential 90 80 70 60 50 36x 40 30 20 10 0 Fdtd Siedel Jacobi2d Jacobi1d Gemm Tmv Average University of Michigan 14 Electrical Engineering and Computer Science

  15. Results for Indirect Access GPU Paragon CPU 4 CPU 2 16 Speedup compared to sequential 14 12 10 8 6 3.8x 4 2 0 Saxpy House Ipvec Ger Gemver SOR FWD Average University of Michigan 15 Electrical Engineering and Computer Science

  16. Conclusion Paragon improves performance More GPU Utilization Speculatively run possibly-parallel loops on GPU No performance penalty on mis-speculation Letting CPU run sequentially at the same time Conflict checking is done in GPU University of Michigan 16 Electrical Engineering and Computer Science

  17. Q & A University of Michigan 17 Electrical Engineering and Computer Science

  18. Overhead Breakdown Checking Kernel Write-log Read-log 100 90 Paragon Overhead 80 Breakdown(%) 70 60 50 40 30 20 10 0 University of Michigan 18 Electrical Engineering and Computer Science

  19. Overhead Breakdown Checking Kernel Write-log Read-log 100 Paragon Overhead Breakdown(%) 90 80 70 60 50 40 30 20 10 0 Fdtd Siedel Jacobi2d Jacobi1d Gemm Tmv Average University of Michigan 19 Electrical Engineering and Computer Science
