  1. Zero-Trust Explainable Autonomous Networks Daniele CANAVESE (IRIT) Journ e Scientifique Annuelle du D fi Cl ICO Montpellier (France),July12, 2024

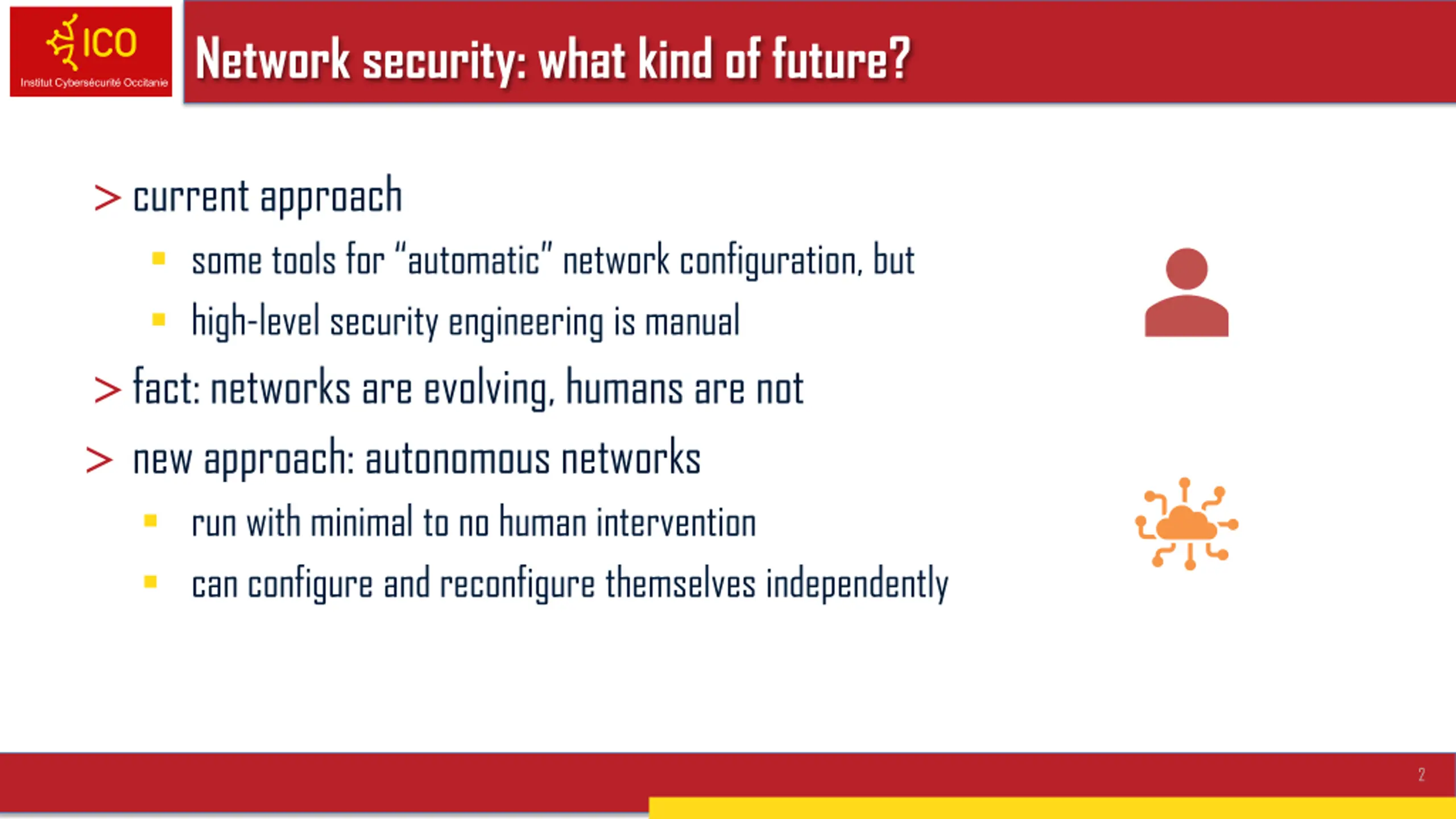

  2. Network security: what kind of future? >current approach some tools for automatic network configuration, but high-level security engineering is manual >fact: networks are evolving, humans are not > new approach: autonomous networks run with minimal to no human intervention can configure and reconfigure themselves independently 2

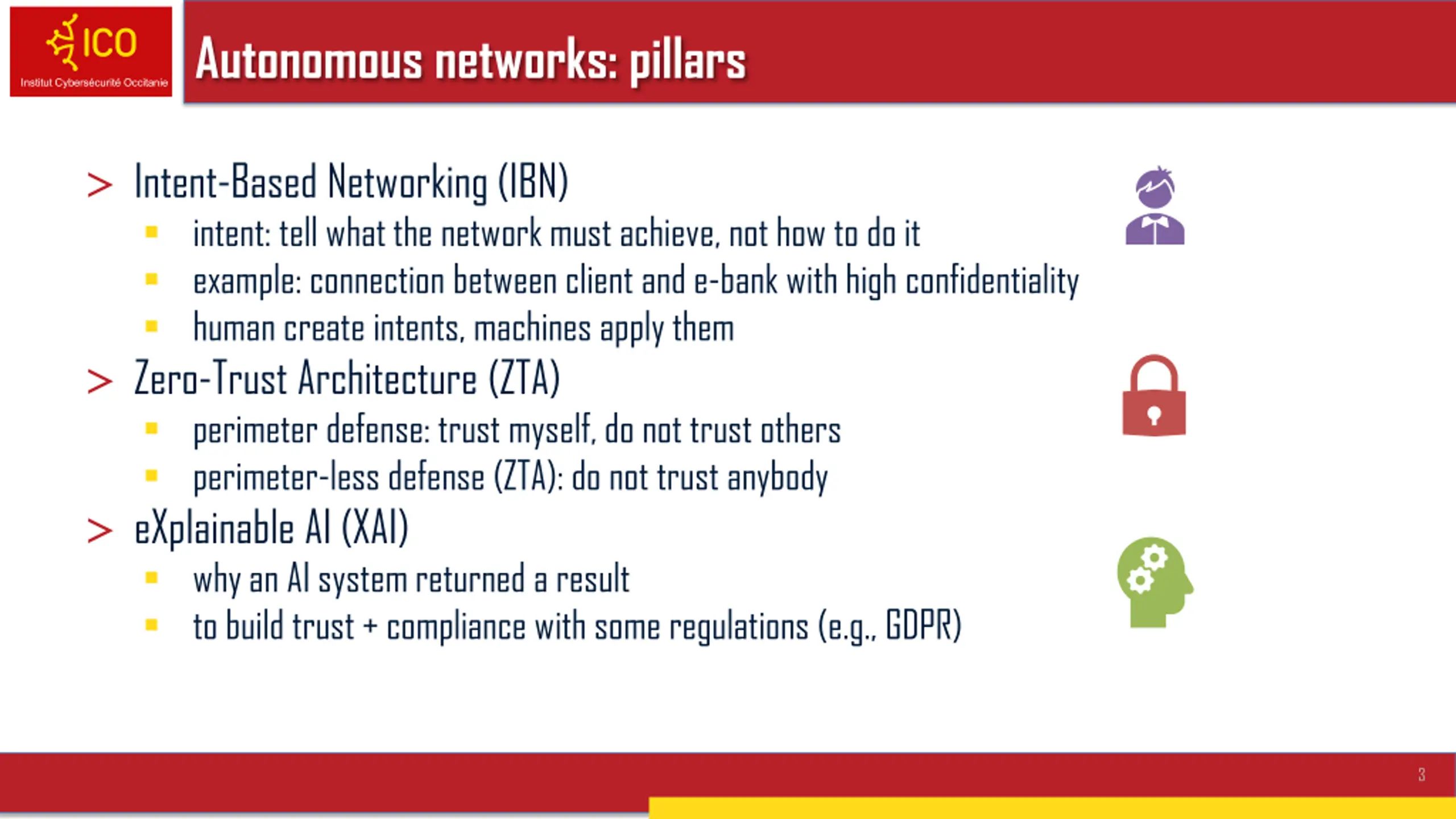

  3. Autonomous networks: pillars > Intent-Based Networking (IBN) intent: tell what the network must achieve, not how to do it example:connection between client ande-bank with high confidentiality human create intents, machines apply them > Zero-Trust Architecture (ZTA) perimeter defense:trustmyself,do not trust others perimeter-less defense (ZTA):do not trust anybody > eXplainable AI (XAI) why an AI system returned a result to build trust + compliance with some regulations (e.g., GDPR) 3

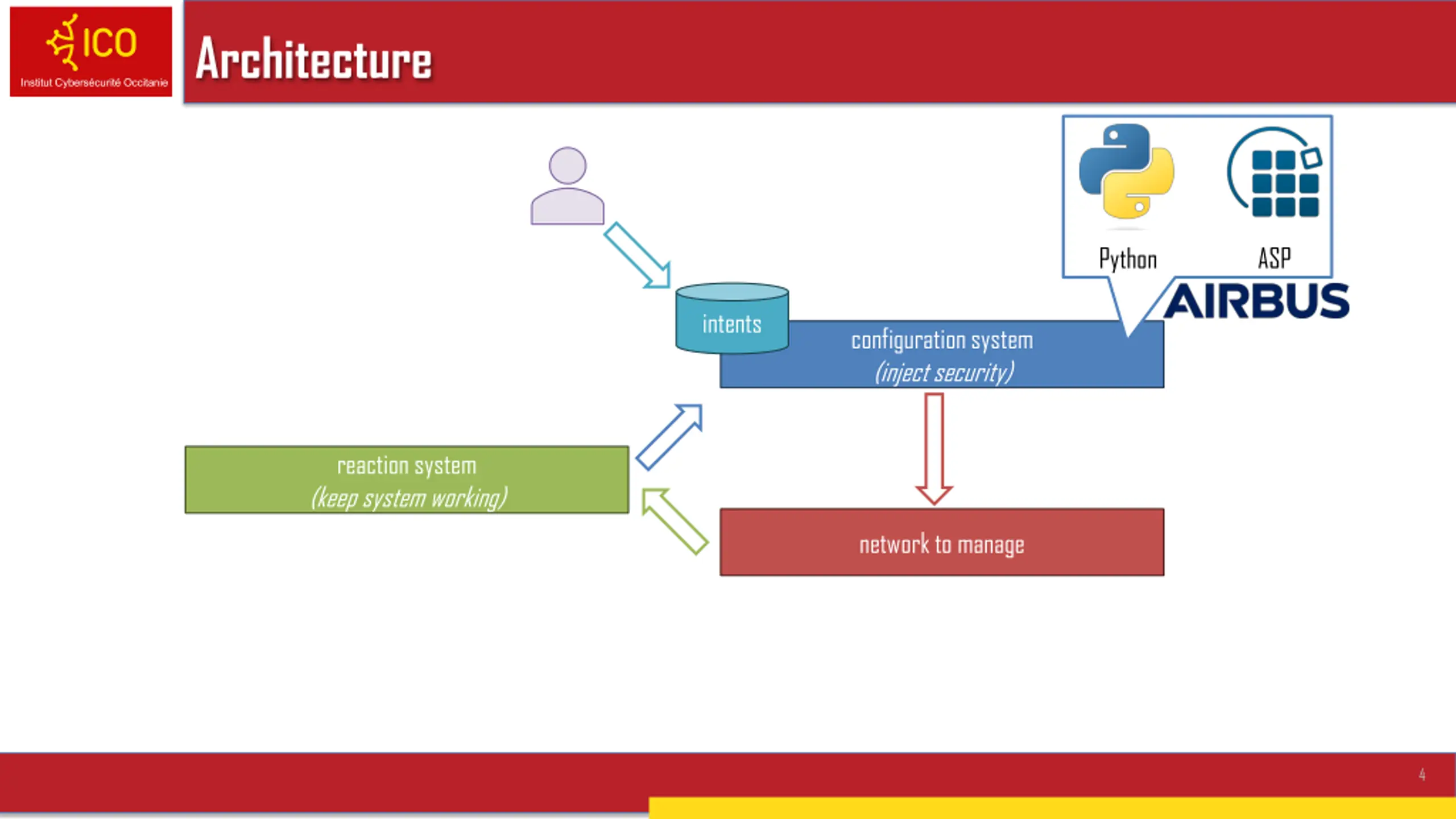

  4. Architecture Python ASP intents configurationsystem (inject security) reaction system (keep system working) network to manage 4

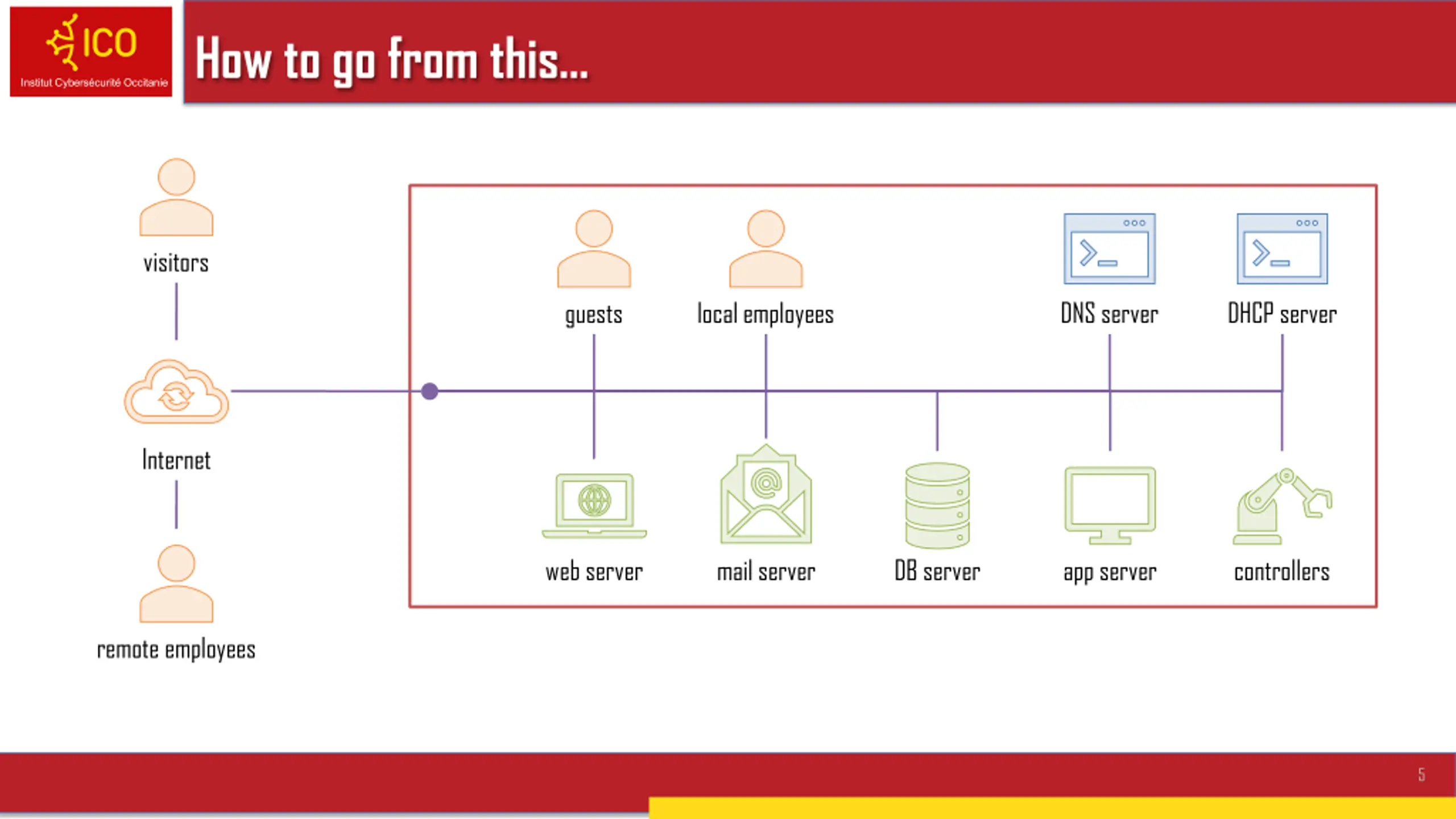

  5. How to go from this visitors guests local employees DNS server DHCP server Internet web server mail server DB server app server controllers remote employees 5

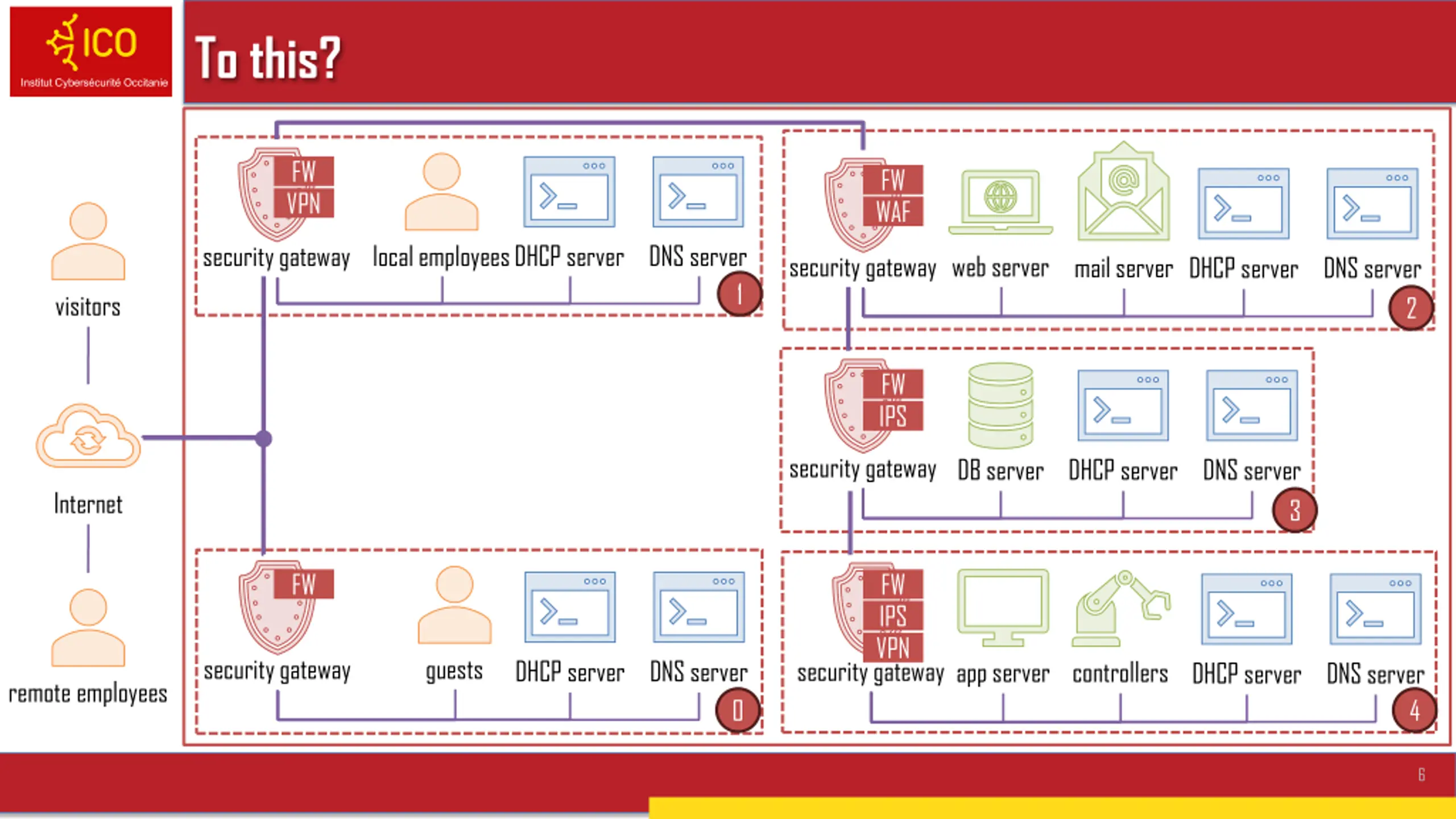

  6. To this? FW VPN FW WAF security gateway local employees DHCP server DNS server security gateway web server mail server DHCP server DNS server 1 visitors 2 FW IPS security gateway DB server DHCP server DNS server Internet 3 FW FW IPS VPN security gateway guests security gateway DHCP server DNS server app server controllers DHCP server DNS server remote employees 0 4 6

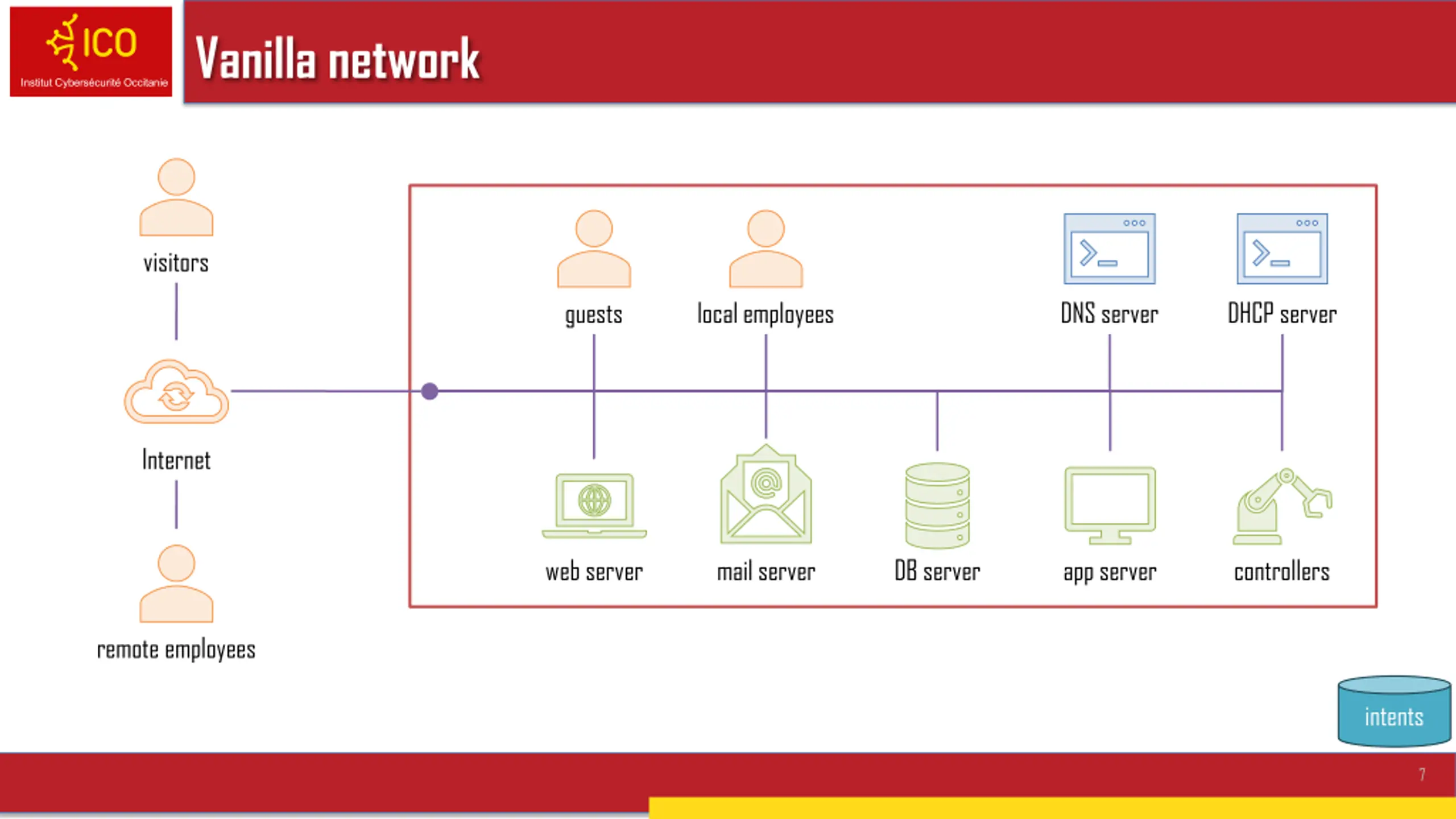

  7. Vanilla network visitors guests local employees DNS server DHCP server Internet web server mail server DB server app server controllers remote employees intents 7

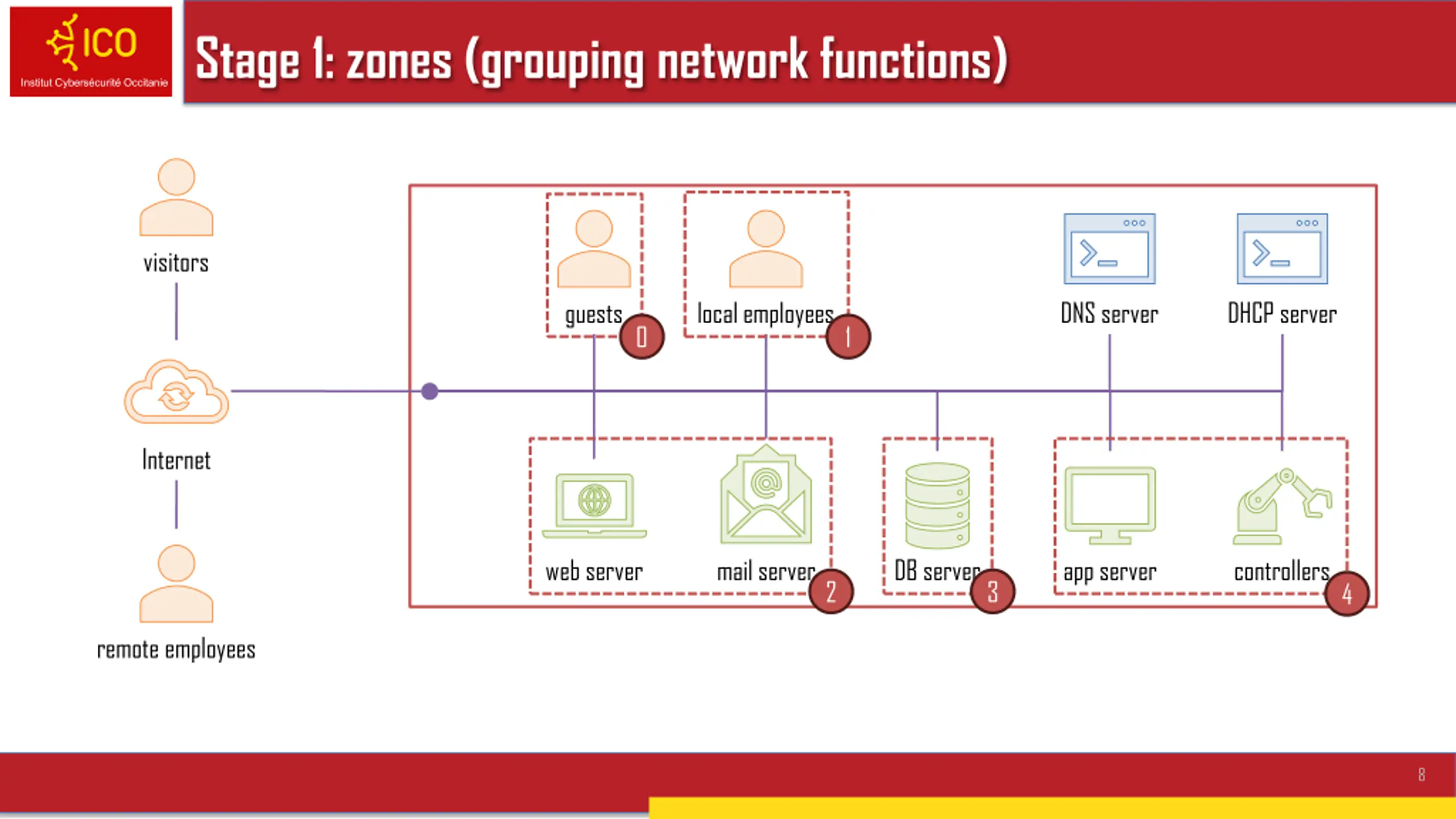

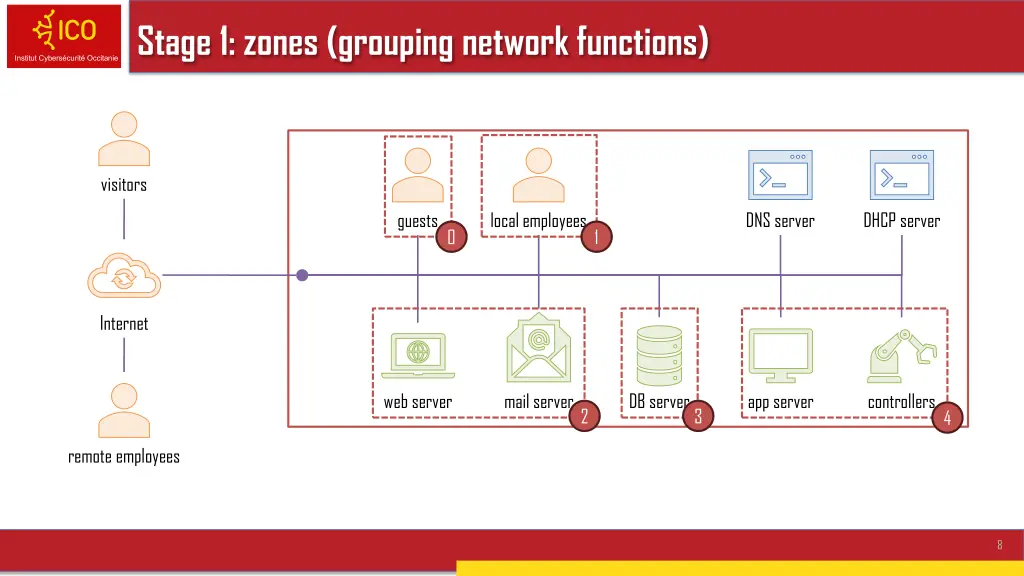

  8. Stage 1: zones (grouping network functions) visitors guests local employees DNS server DHCP server 0 1 Internet web server mail server DB server app server controllers 2 3 4 remote employees 8

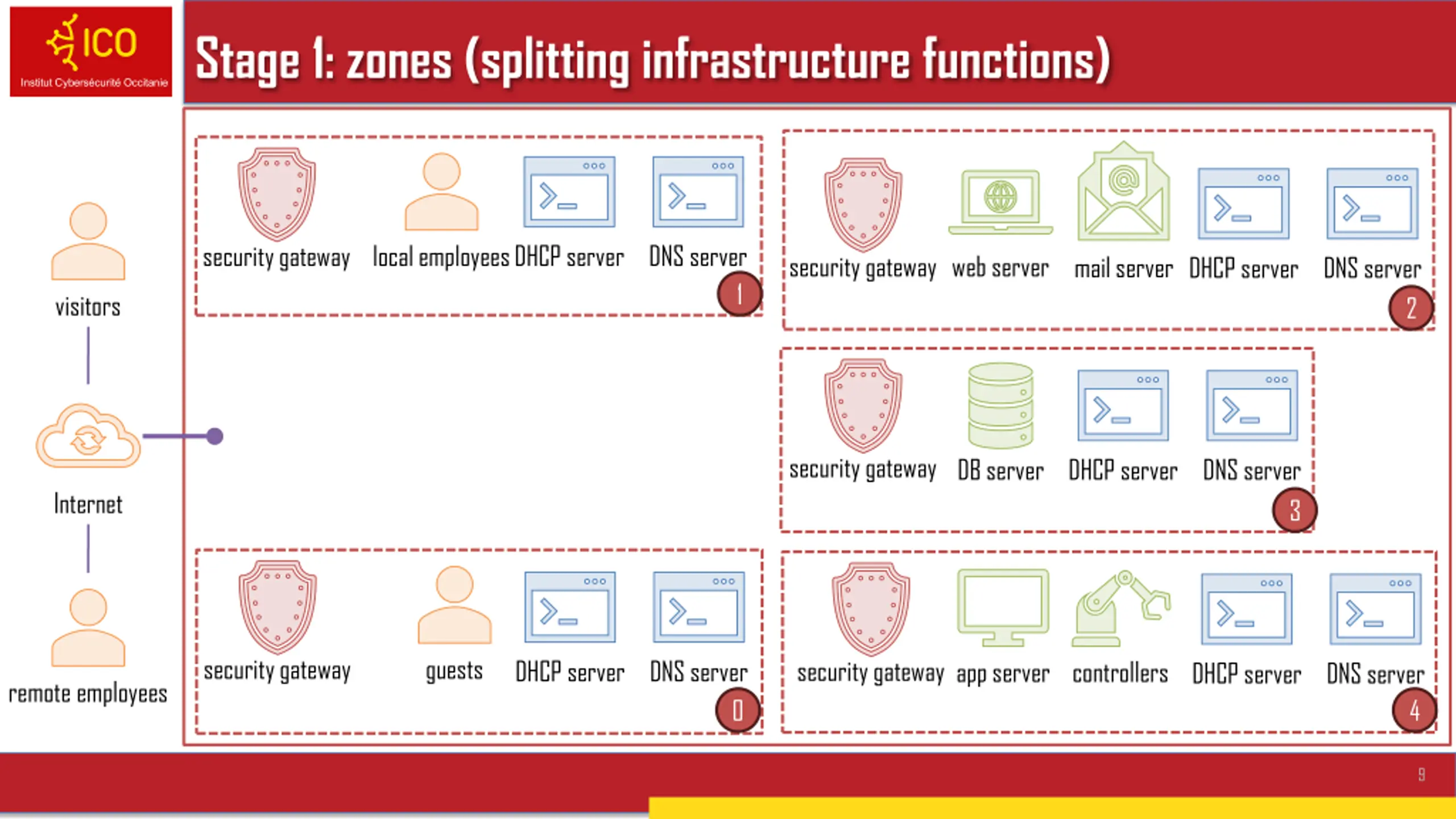

  9. Stage 1: zones (splitting infrastructure functions) security gateway local employees DHCP server DNS server security gateway web server mail server DHCP server DNS server 1 visitors 2 security gateway DB server DHCP server DNS server Internet 3 security gateway guests security gateway DHCP server DNS server app server controllers DHCP server DNS server remote employees 0 4 9

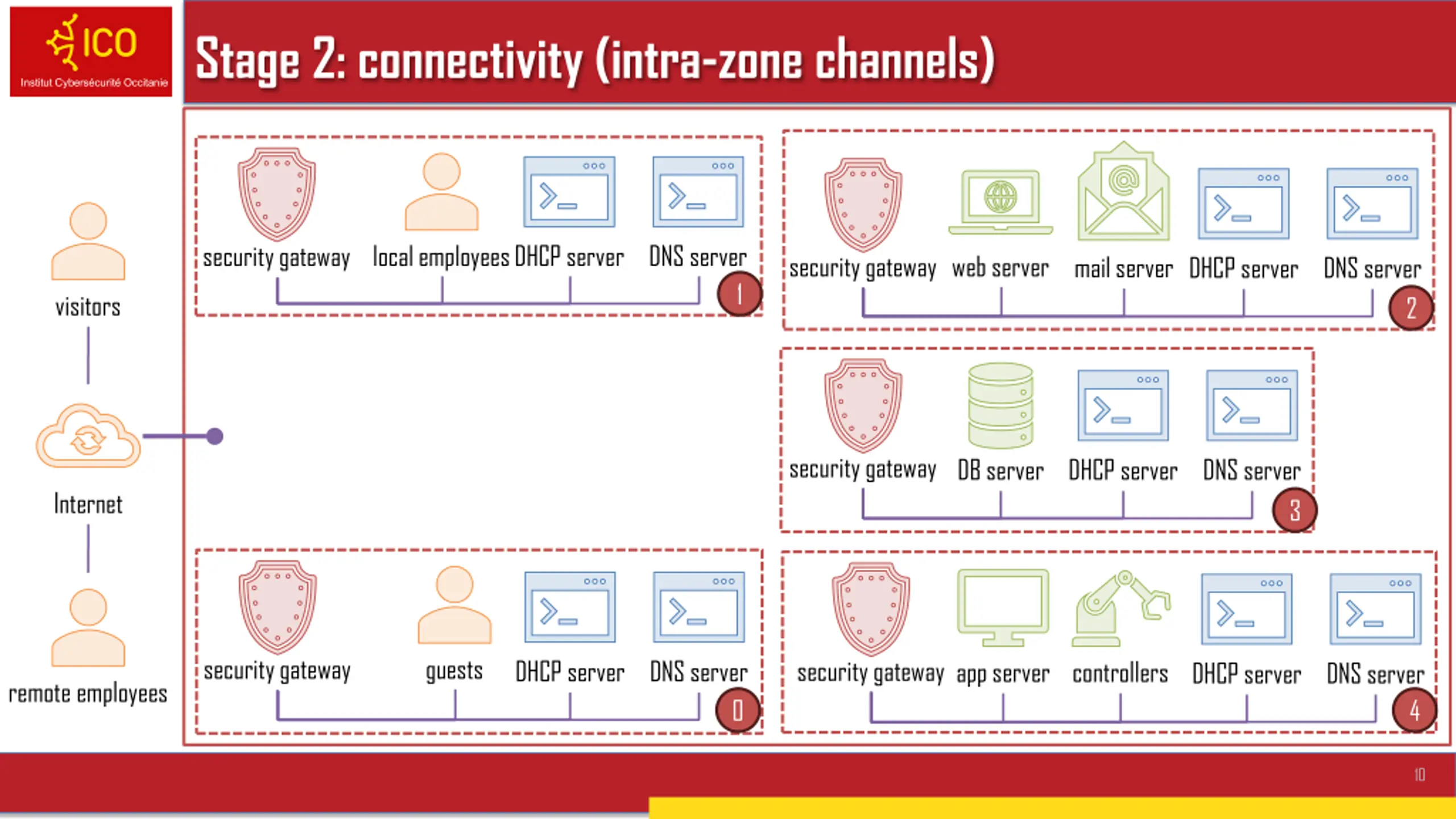

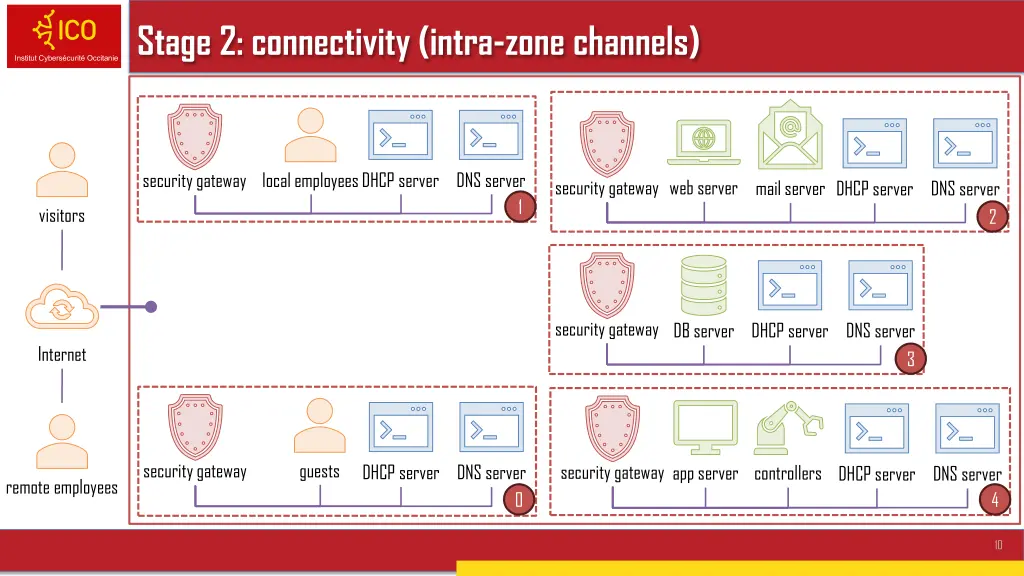

  10. Stage 2: connectivity (intra-zone channels) security gateway local employees DHCP server DNS server security gateway web server mail server DHCP server DNS server 1 visitors 2 security gateway DB server DHCP server DNS server Internet 3 security gateway guests security gateway DHCP server DNS server app server controllers DHCP server DNS server remote employees 0 4 10

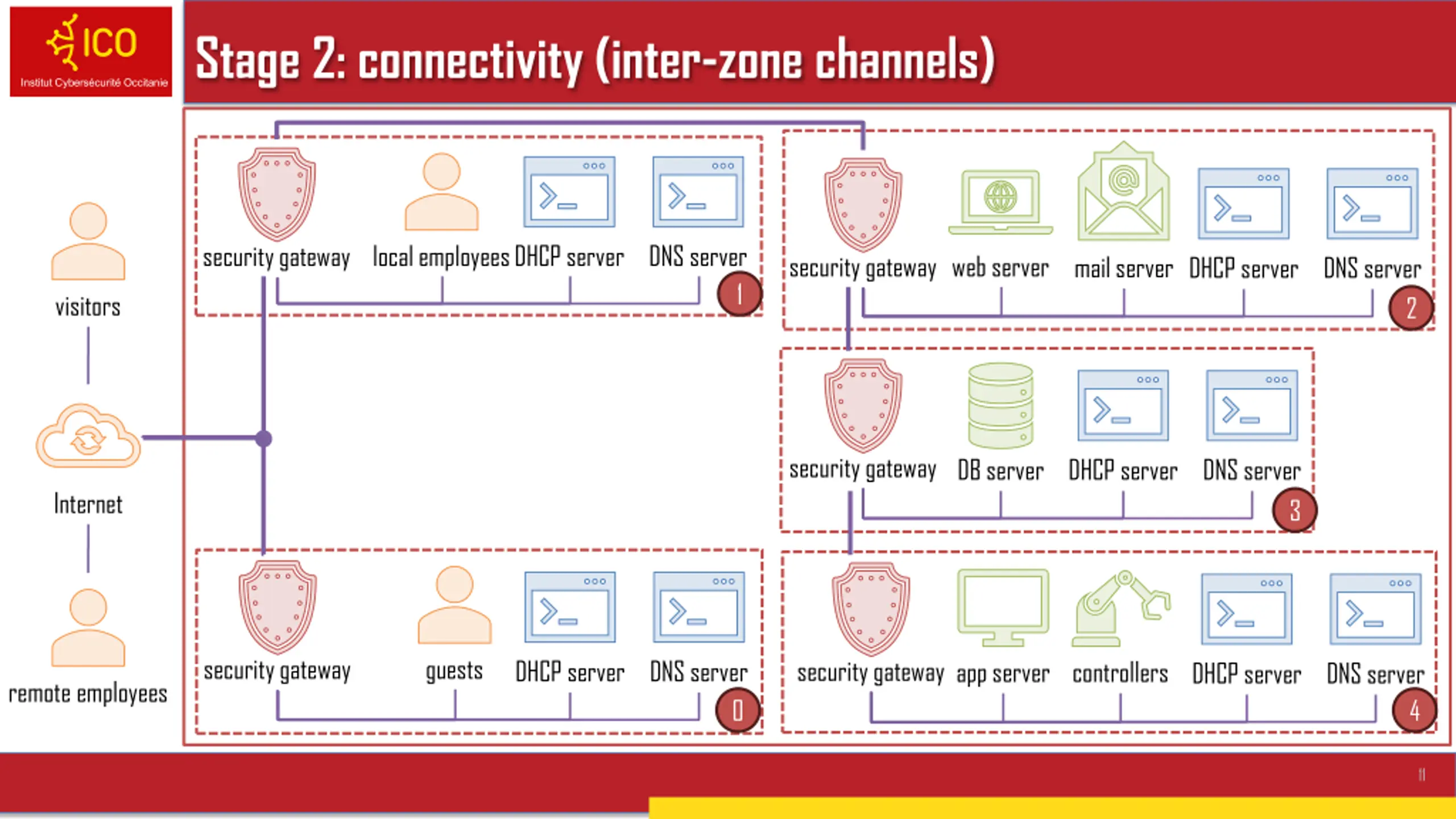

  11. Stage 2: connectivity (inter-zone channels) security gateway local employees DHCP server DNS server security gateway web server mail server DHCP server DNS server 1 visitors 2 security gateway DB server DHCP server DNS server Internet 3 security gateway guests security gateway DHCP server DNS server app server controllers DHCP server DNS server remote employees 0 4 11

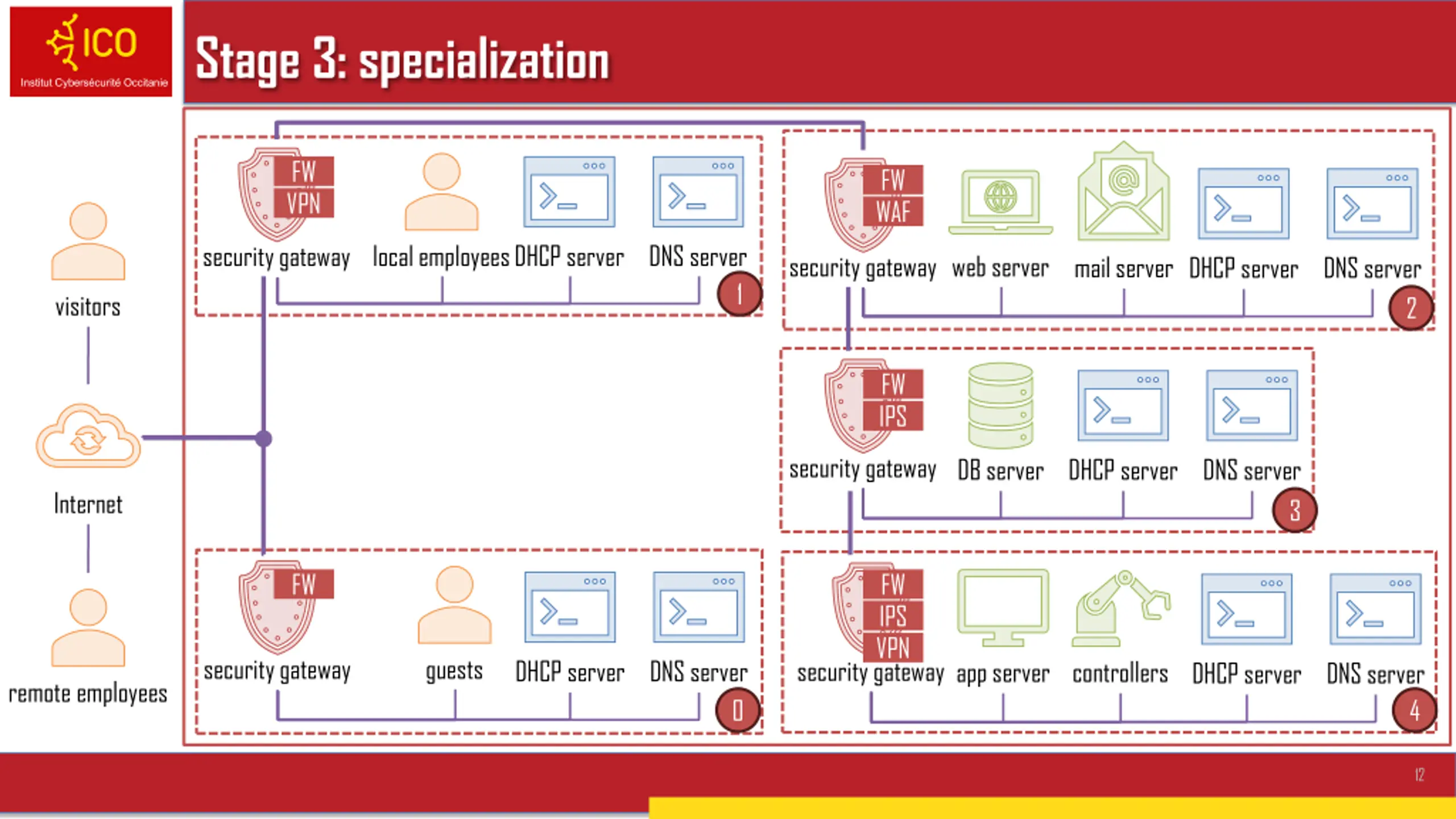

  12. Stage 3: specialization FW VPN FW WAF security gateway local employees DHCP server DNS server security gateway web server mail server DHCP server DNS server 1 visitors 2 FW IPS security gateway DB server DHCP server DNS server Internet 3 FW FW IPS VPN security gateway guests security gateway DHCP server DNS server app server controllers DHCP server DNS server remote employees 0 4 12

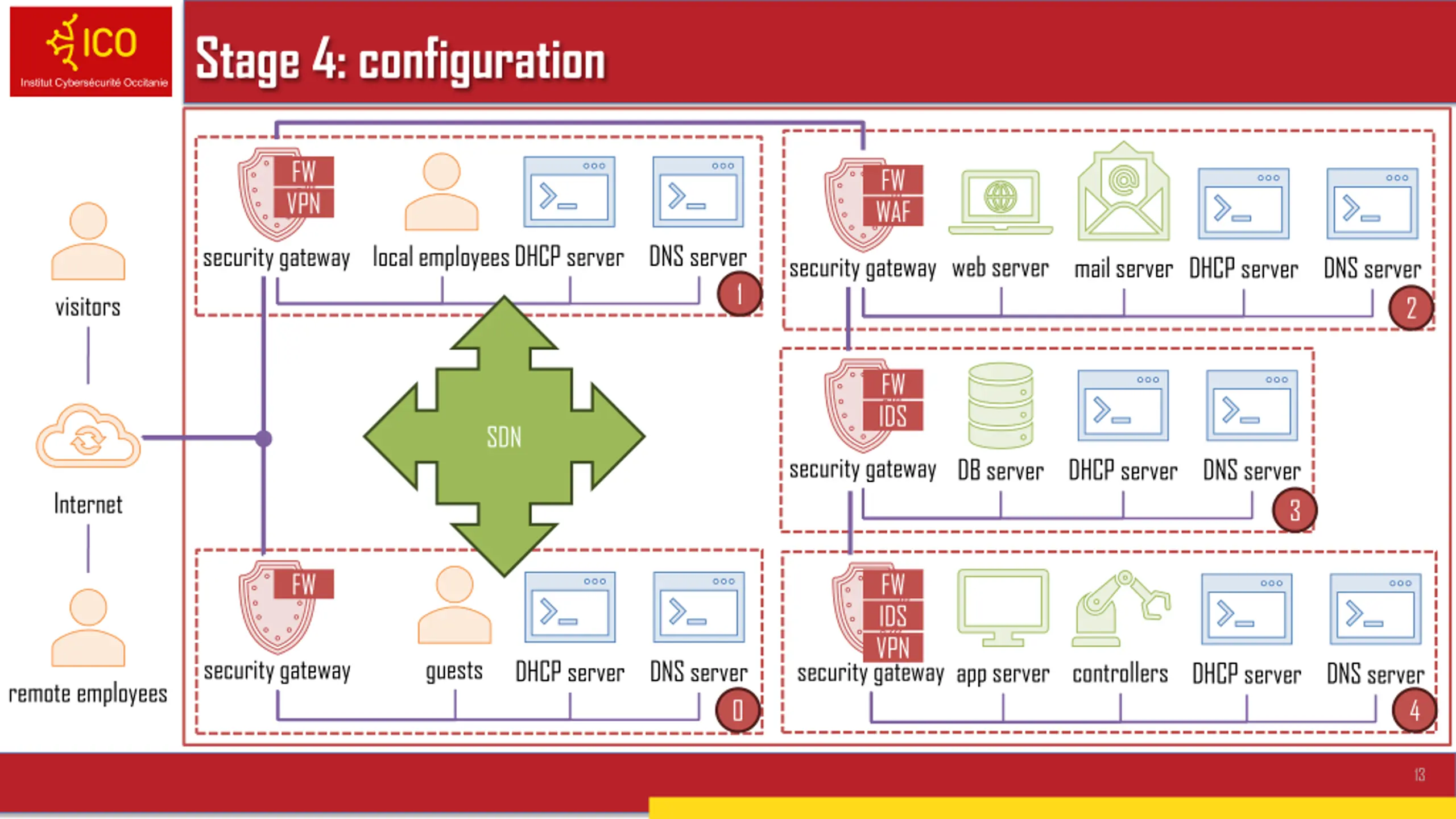

  13. Stage 4: configuration FW VPN FW WAF security gateway local employees DHCP server DNS server security gateway web server mail server DHCP server DNS server 1 visitors 2 FW IDS SDN security gateway DB server DHCP server DNS server Internet 3 FW FW IDS VPN security gateway guests security gateway DHCP server DNS server app server controllers DHCP server DNS server remote employees 0 4 13

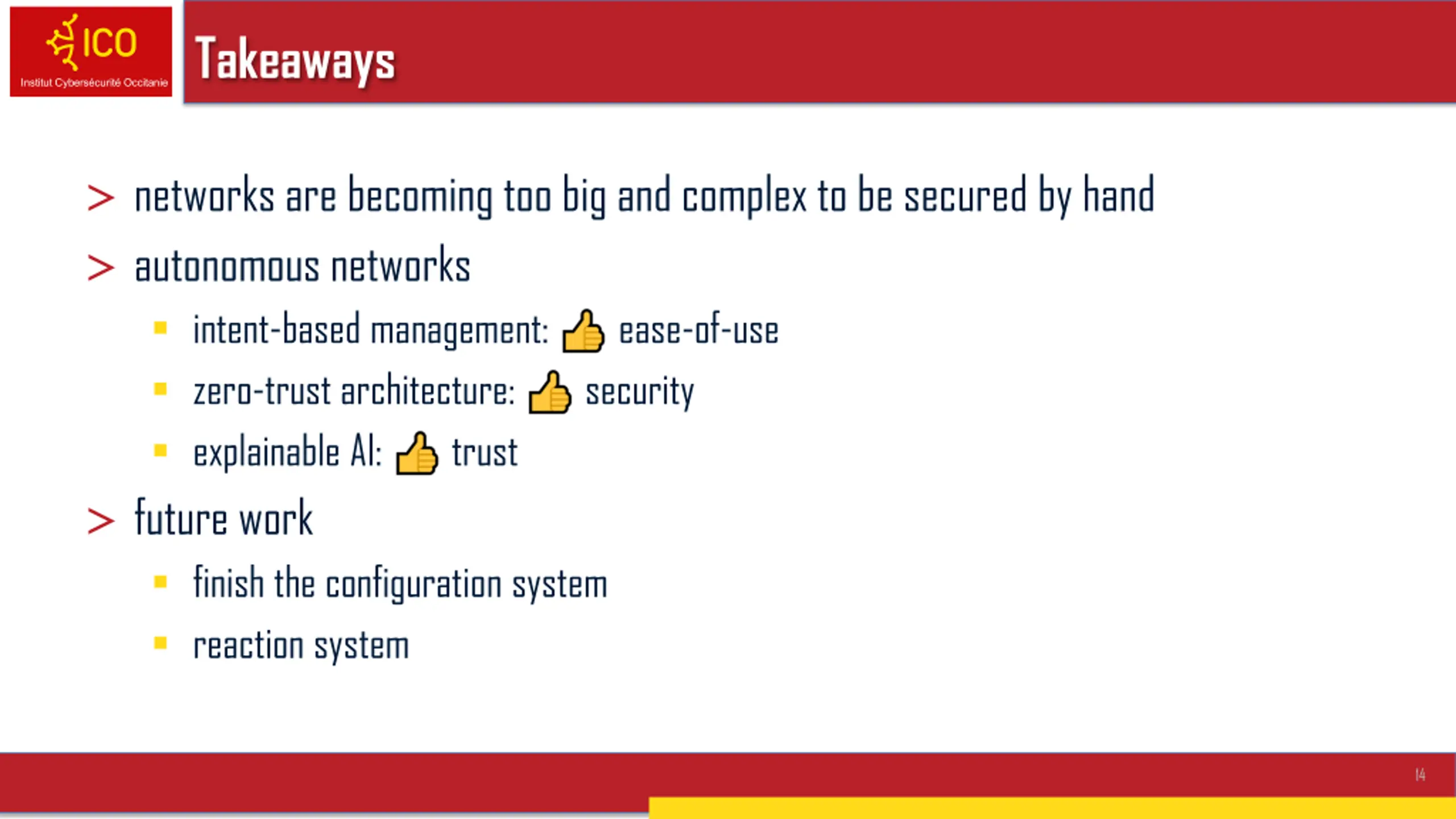

  14. Takeaways > networks are becomingtoobig and complexto be secured by hand > autonomousnetworks intent-based management: ease-of-use zero-trust architecture: security explainable AI: trust > future work finish the configuration system reaction system 14
