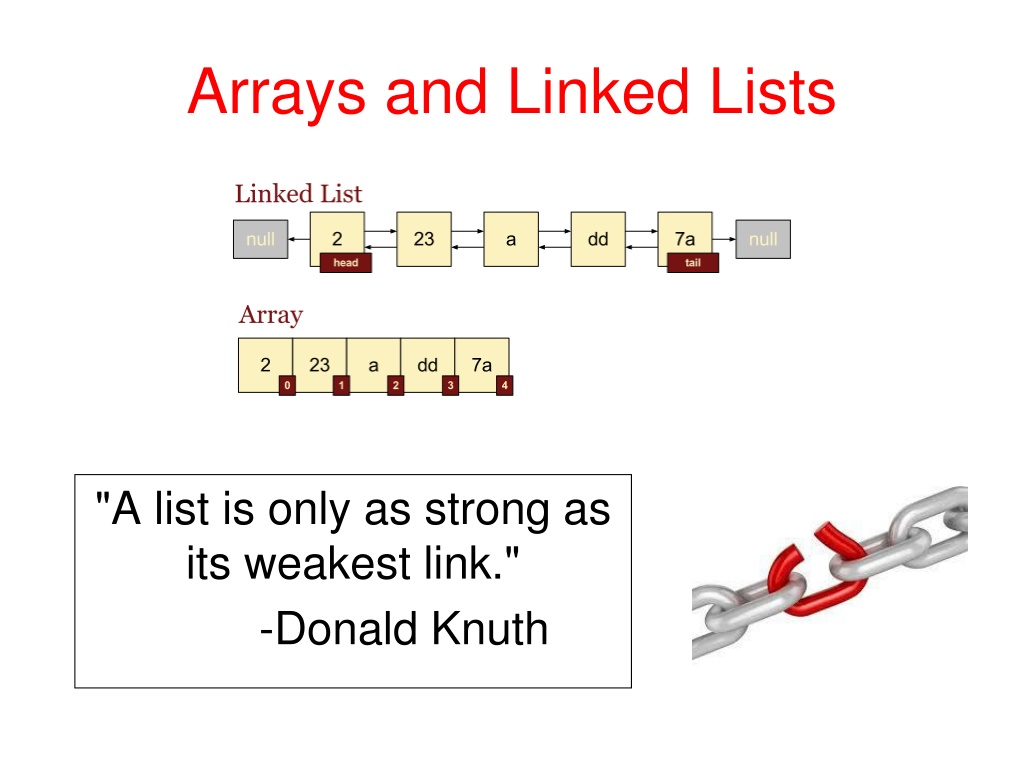

1. Arrays and Linked Lists "A list is only as strong as its weakest link." -Donald Knuth

2. Static vs Dynamic Static data structures Arrays. Fixed, predetermined capacity. If full, have to allocate more space and copy values into that space. Dynamic data structures Linked structures, like linked lists and trees. They grow / shrink one element at a time. Avoid some inefficiencies of static containers. CS 221 - Computer Science II 2

3. Efficiency of Array Operations Big-O of Array Operations To insert element at beginning of an array? Space available? No space available? While maintaining relative order? To insert element at the end of array? To insert or delete an element in the middle of the array? To access the kth element? CS 221 - Computer Science II 3

4. Advantages of Arrays Used to represent multiple data items of same type by using only single name. Can be used to implement other data structures like stacks, queues, trees, graphs, etc. 2D arrays are used to represent matrices. CS 221 - Computer Science II 4

5. Disadvantages of Arrays Array is static structure, has fixed size. Must know in advance that how many elements need to be stored. If allocate more memory than required, the memory space will be wasted. If we allocate less memory than required, it will create problem. Elements of array stored in consecutive memory locations, so insertions and deletions are time consuming. CS 221 - Computer Science II 5

6. Single-Linked List Single-linked list is implementation-dependent data structure. Not defined by set of core operations. Have to understand how to manipulate nodes. Each node stores reference to element in linked list. Nodes also maintain references to next node in the list. Create new node when add new element to list. Remove node when element is removed from list. Allow garbage collector to reclaim that memory. CS 221 - Computer Science II 6

7. Anatomy of Single-Linked List A linked list consists of: Sequence of nodes, can change during execution. Successive nodes connected by node references. Last node reference points to null. Grows / shrinks during operation. Not limit number of elements. Keep references to first / last (optional) nodes in list. head tail A B C null pointer CS 221 - Computer Science II 7

8. Terminology Node s successor is the next node in the sequence. The tail (last node) has no successor. Node s predecessor is the previous node in the sequence. The head (first node) has no predecessor. List s size is the number of elements in it. A list may be empty (i.e. contain no elements). CS 221 - Computer Science II 8

9. Single-Linked List Operations Inserting New Elements Inserting at beginning of list Inserting at end of list Inserting into middle of list Deleting Elements Deleting element from the beginning of list Deleting element from end of list Deleting element from middle of list Traversing List CS 221 - Computer Science II 9

10. Insertion: At Beginning Steps: 1. Create a new node with new element. 2. Connect new node to list. 3. Update head and count variables. Special Case: if empty Same steps but have to update tail. CS 221 - Computer Science II 10

11. Insertion: At Beginning General Case: One or more elements in list. 1. Create a new node with new element. newNode 3 count D head tail A B C CS 221 - Computer Science II 11

12. Insertion: At Beginning General Case: One or more elements in list. 2. Connect new node to list. 3 count newNode head tail D A B C CS 221 - Computer Science II 12

13. Insertion: At Beginning General Case: One or more elements in list. 3. Update head and count variables. 4 count newNode head tail D A B C CS 221 - Computer Science II 13

14. Insertion: At Beginning Special Case: Empty list. 1. Create a new node with new element. 2. Connect new node to list. newNode 0 count D head null tail CS 221 - Computer Science II 14

15. Insertion: At Beginning Special Case: Empty list. 3. Update head and count variables. 4. Update tail. Extra Step newNode 1 count head tail D CS 221 - Computer Science II 15

16. Insertion: At End Steps: 1. Create a new node with new element. 2. Connect list to new node. 3. Update tail and count variables. Special Case: if empty Most of same steps but can t connect list to new node and have to update head. CS 221 - Computer Science II 16

17. Insertion: At End General Case: One or more elements in list. 1. Create a new node with new element. newNode 3 count D head tail A B C CS 221 - Computer Science II 17

18. Insertion: At End General Case: One or more elements in list. 2. Connect list to new node. 3 count newNode tail head D A B C CS 221 - Computer Science II 18

19. Insertion: At End General Case: One or more elements in list. 3. Update tail and count variables. 4 count newNode tail head D A B C CS 221 - Computer Science II 19

20. Insertion: At End Special Case: Empty list. 1. Create a new node with new element. 2. Can t connect list to new node, because tail is null. Remove Step newNode 0 count D head null tail CS 221 - Computer Science II 20

21. Insertion: At End Special Case: Empty list. 3. Update tail and count variables. 4. Update head. Extra Step newNode 1 count head tail D CS 221 - Computer Science II 21

22. Deletion: At Beginning Steps: 1. Remove deleted node from list, have to use temporary variable. 2. Update head variable. 3. Update count variable. Special Case: if only one node left Most of same steps but don t need temporary variable and have to update tail. CS 221 - Computer Science II 22

23. Deletion: At Beginning General Case: Two or more elements in list. 1. Remove deleted node from list, have to use temporary variable. 4 count next head tail A B C D CS 221 - Computer Science II 23

24. Deletion: At Beginning General Case: Two or more elements in list. 2. Update head variable. 4 count head next tail A B C D CS 221 - Computer Science II 24

25. Deletion: At Beginning General Case: Two or more elements in list. 3. Update count variable. 3 head count next tail B C D CS 221 - Computer Science II 25

26. Deletion: At Beginning Special Case: One node left. 1. Remove deleted node from list. 2. Update head variable. 3. Update count variable. 4. Update tail. Extra Step 0 count A head null tail CS 221 - Computer Science II 26

27. Deletion: At End To delete last element, have to update link from node previous to last node. In order to update this link, have to traverse nodes to that node. CS 221 - Computer Science II 27

28. List Traversal Steps: 1. Initialize temporary variable to head. 2. Advance temporary variable until find element or position. CS 221 - Computer Science II 28

29. List Traversal 1. Initialize temporary variable to head. current tail head D A B C target 4 count CS 221 - Computer Science II 29

30. List Traversal 2. Advance temporary variable until find element or position. current tail head D A B C target 4 count CS 221 - Computer Science II 30

31. List Traversal 2. Advance temporary variable until find element or position. current tail head D A B C target 4 count CS 221 - Computer Science II 31

32. Deletion: At End Steps: 1. Use temporary variable to traverse nodes until reach node before last one. 2. Remove deleted node from list. 3. Update tail variable. 4. Update count variable. Special Case: if only one node left Most of same steps but don t have to traverse nodes and have to update head. CS 221 - Computer Science II 32

33. Deletion: At End General Case: Two or more elements in list. 1. Use temporary variable to traverse nodes until reach node before last one. 4 count current tail head A B C D CS 221 - Computer Science II 33

34. Deletion: At End General Case: Two or more elements in list. 1. Use temporary variable to traverse nodes until reach node before last one. 4 count current tail head A B C D CS 221 - Computer Science II 34

35. Deletion: At End General Case: Two or more elements in list. 1. Use temporary variable to traverse nodes until reach node before last one. 4 count tail current head A B C D CS 221 - Computer Science II 35

36. Deletion: At End General Case: Two or more elements in list. 2. Remove deleted node from list. 4 count tail current head A B C D CS 221 - Computer Science II 36

37. Deletion: At End General Case: Two or more elements in list. 3. Update tail variable. 4 count tail current head A B C D CS 221 - Computer Science II 37

38. Deletion: At End General Case: Two or more elements in list. 4. Update count variable. 3 count tail current head A B C CS 221 - Computer Science II 38

39. Deletion: At End Special Case: One node left. 1. Remove deleted node from list. 2. Update tail variable. 3. Update count variable. 4. Update head. Extra Step 0 count D head null tail CS 221 - Computer Science II 39

40. Advantages of Linked Lists Insertions / deletions don t require shifting. No wasted space. Size is not fixed, can be extended or reduced. Elements do not have to be stored in consecutive memory. CS 221 - Computer Science II 40

41. Disadvantages of Linked Lists Requires more space need references to successor and stored elements. No direct access to elements by position. To find a particular element, have to go through all those elements that come before that element. We can only traverse from the beginning. Sorting the elements stored in linked list are more difficult and inefficient. CS 221 - Computer Science II 41

42. CS 221 - Computer Science II 42
