COM101B LECTURE 3: EXPRESSIONS & STATEMENTS ASST. PROF. DR. HACER YALIM KELE REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

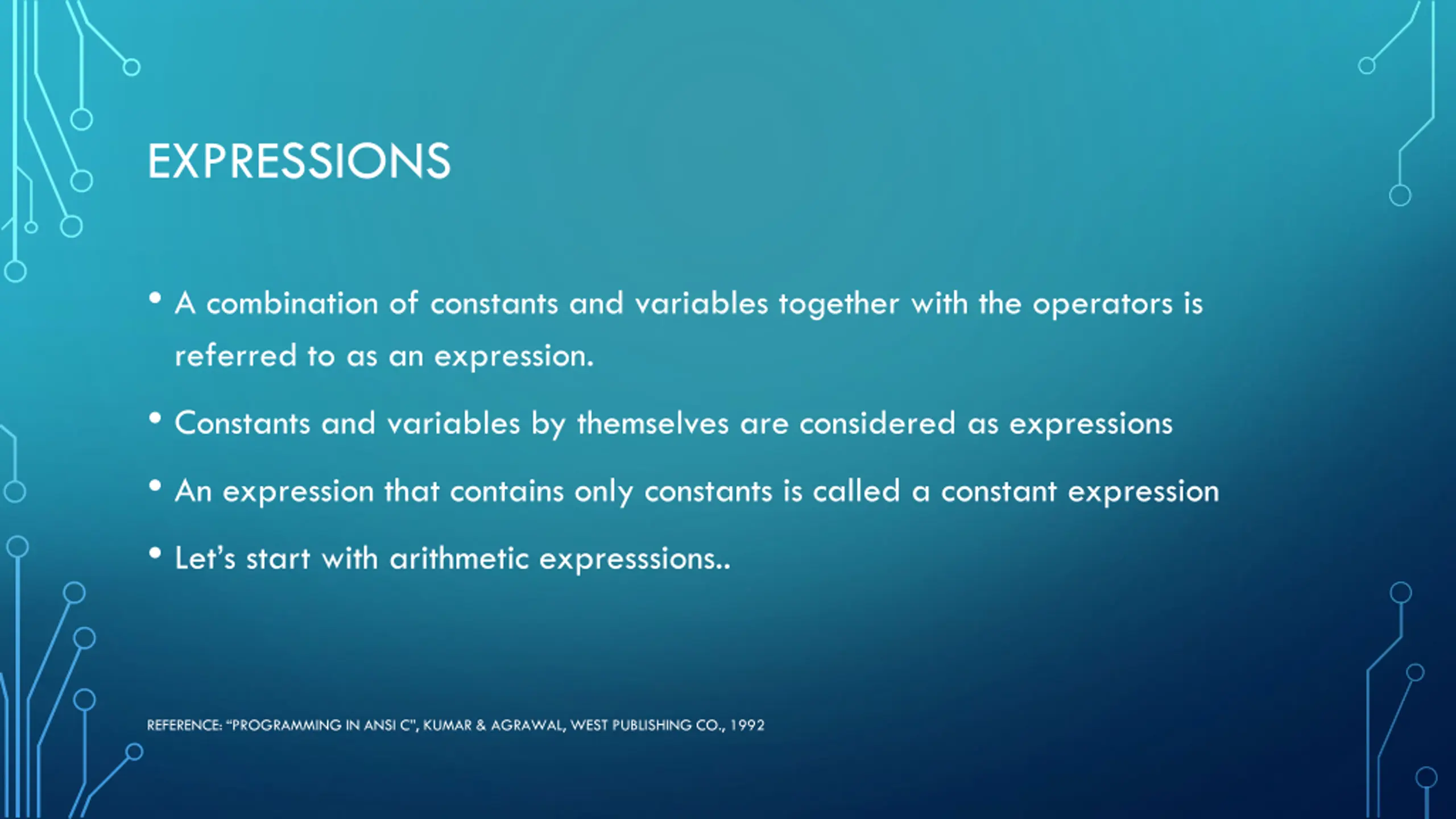

EXPRESSIONS A combination of constants and variables together with the operators is referred to as an expression. Constants and variables by themselves are considered as expressions An expression that contains only constants is called a constant expression Let s start with arithmetic expresssions.. REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

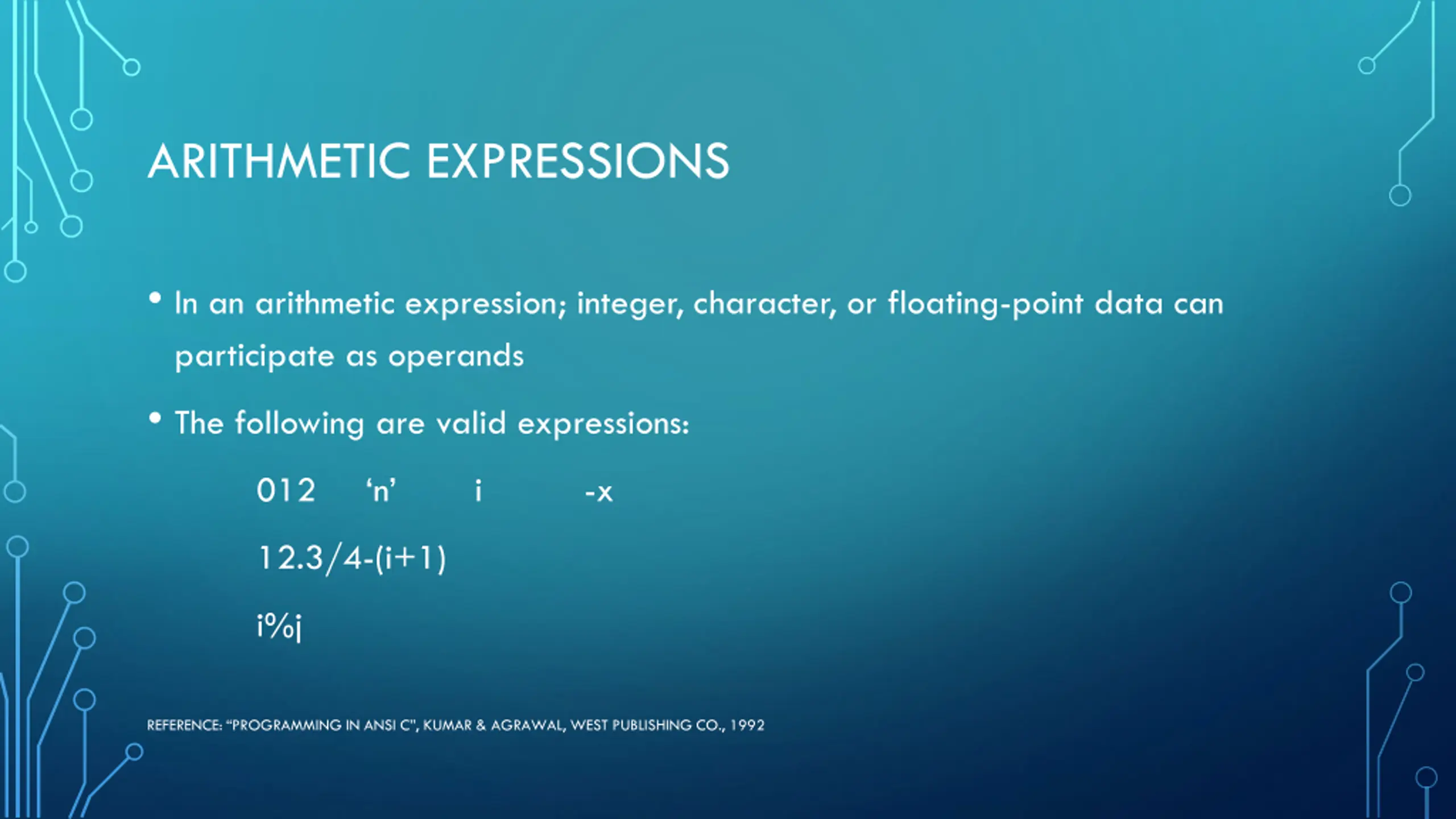

ARITHMETIC EXPRESSIONS In an arithmetic expression; integer, character, or floating-point data can participate as operands The following are valid expressions: 012 n i -x 12.3/4-(i+1) i%j REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

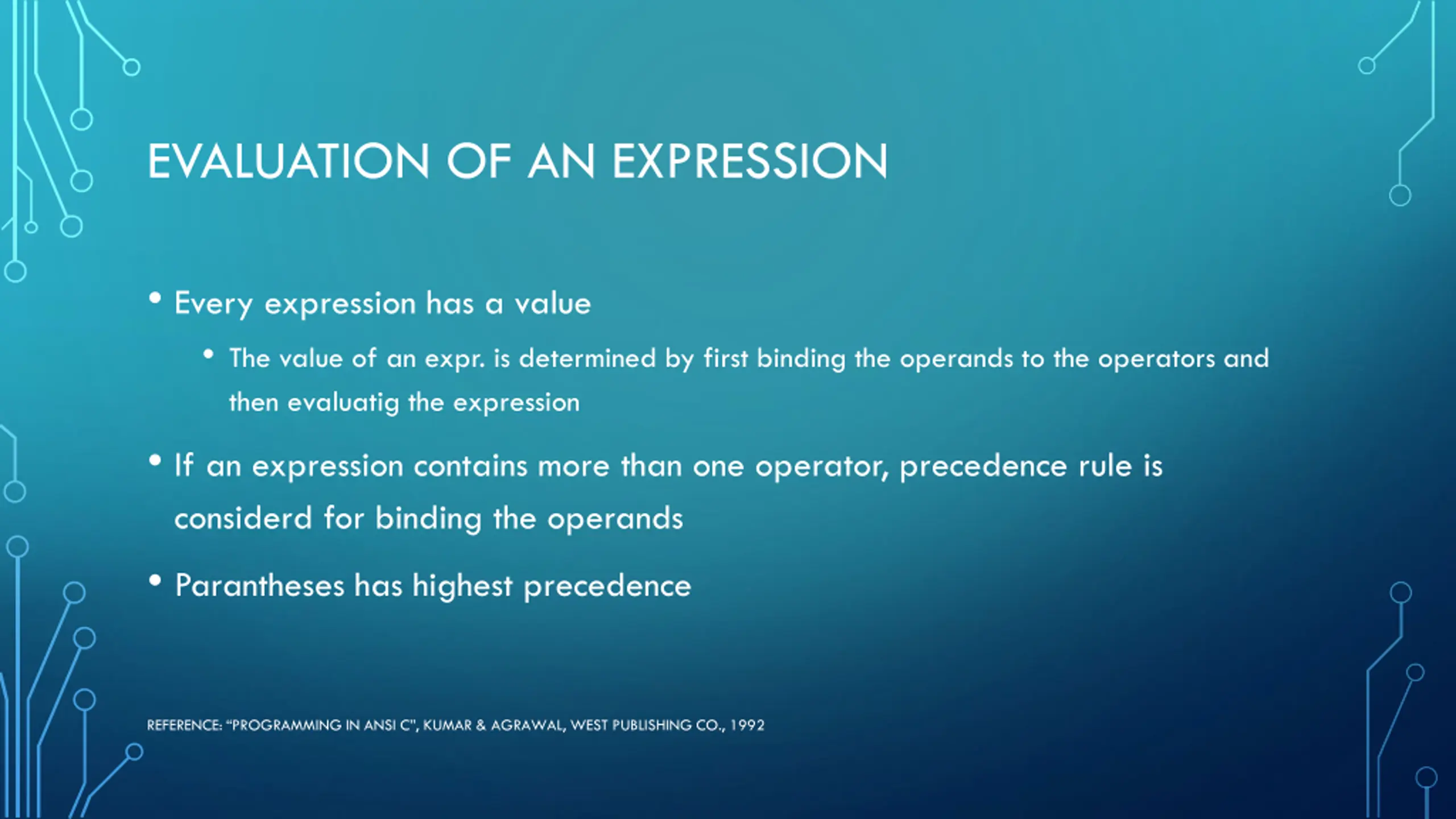

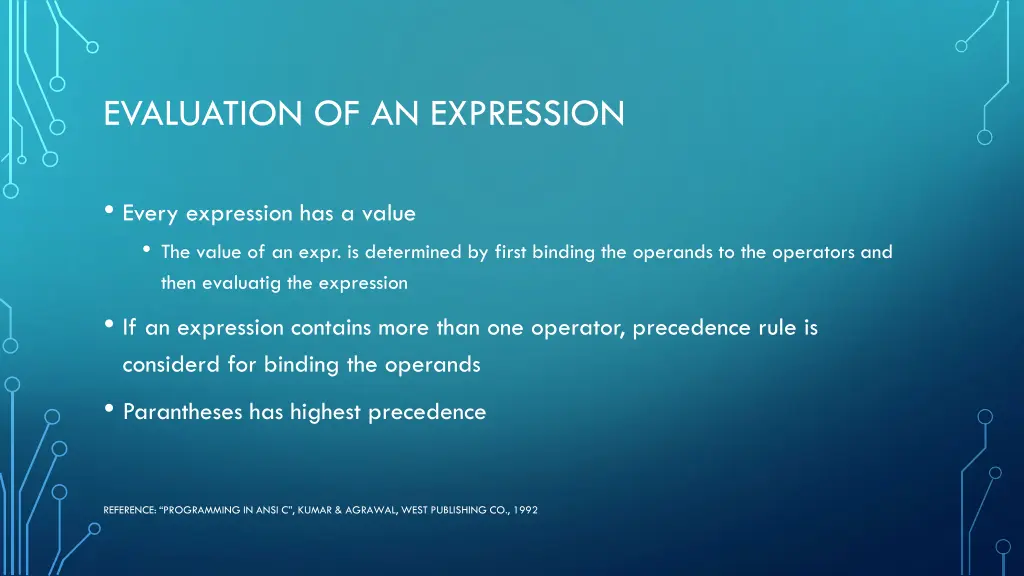

EVALUATION OF AN EXPRESSION Every expression has a value The value of an expr. is determined by first binding the operands to the operators and then evaluatig the expression If an expression contains more than one operator, precedence rule is considerd for binding the operands Parantheses has highest precedence REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

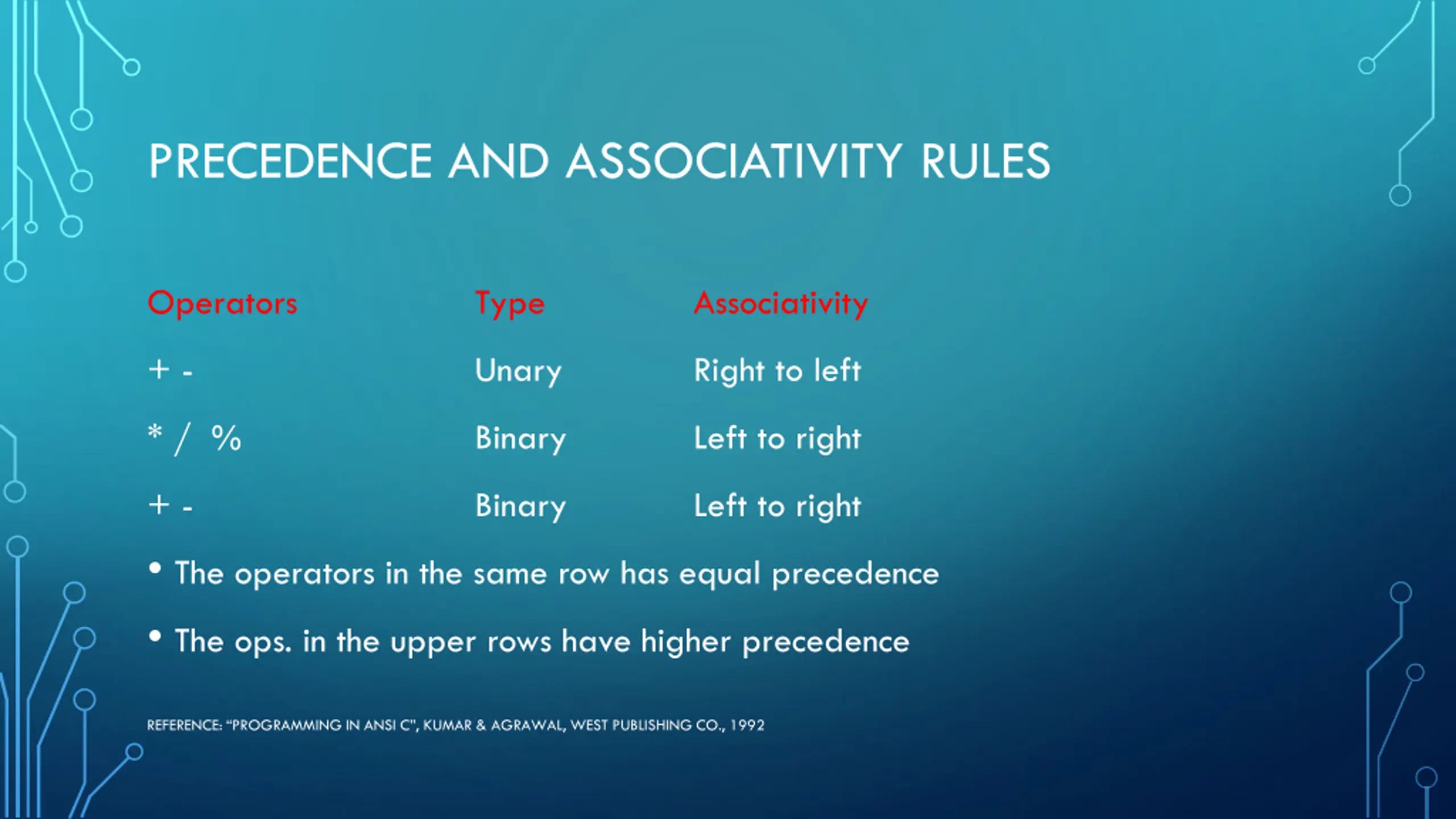

PRECEDENCE AND ASSOCIATIVITY RULES Operators Type Associativity + - Unary Right to left * / % Binary Left to right + - The operators in the same row has equal precedence The ops. in the upper rows have higher precedence Binary Left to right REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

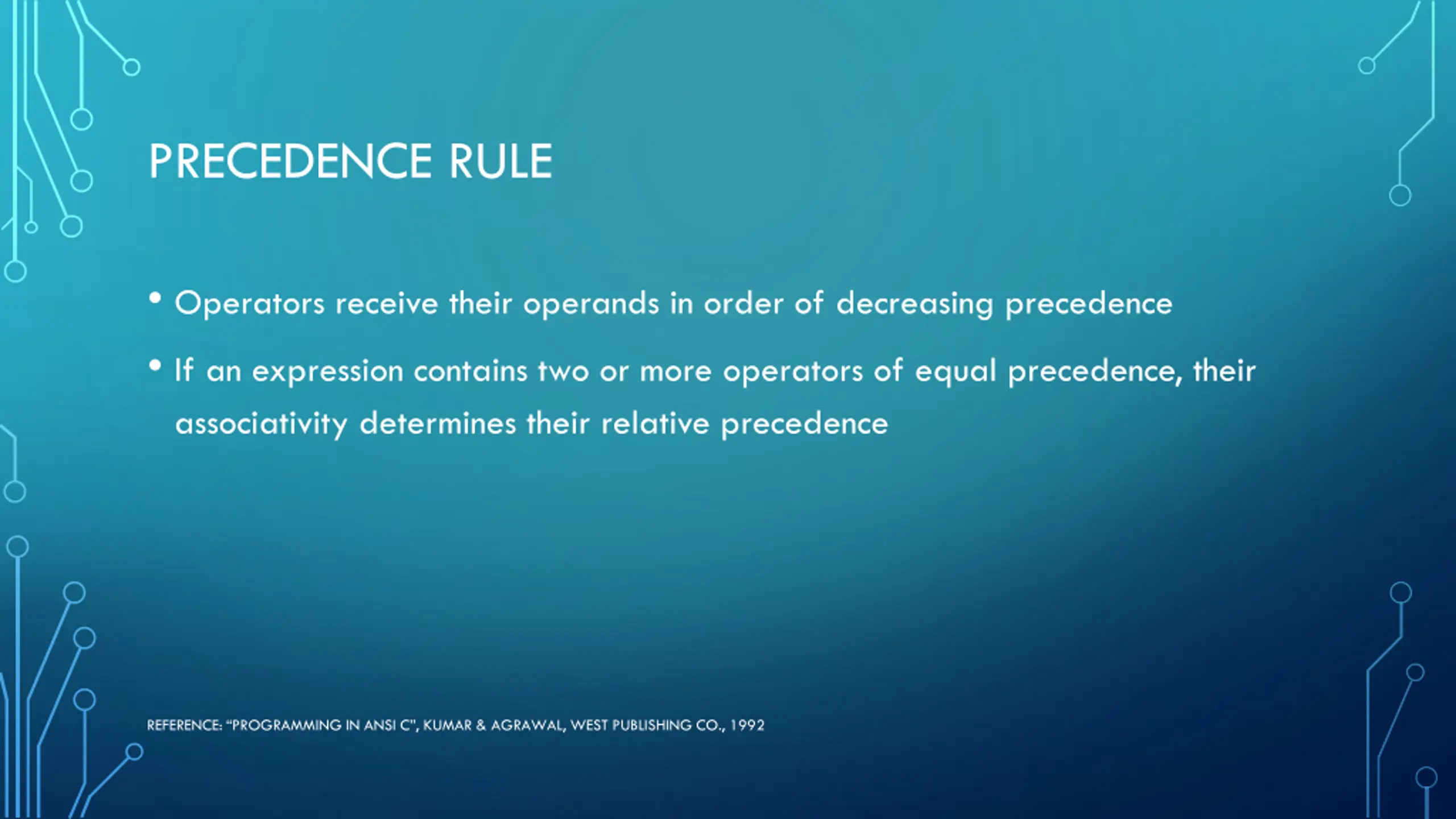

PRECEDENCE RULE Operators receive their operands in order of decreasing precedence If an expression contains two or more operators of equal precedence, their associativity determines their relative precedence REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

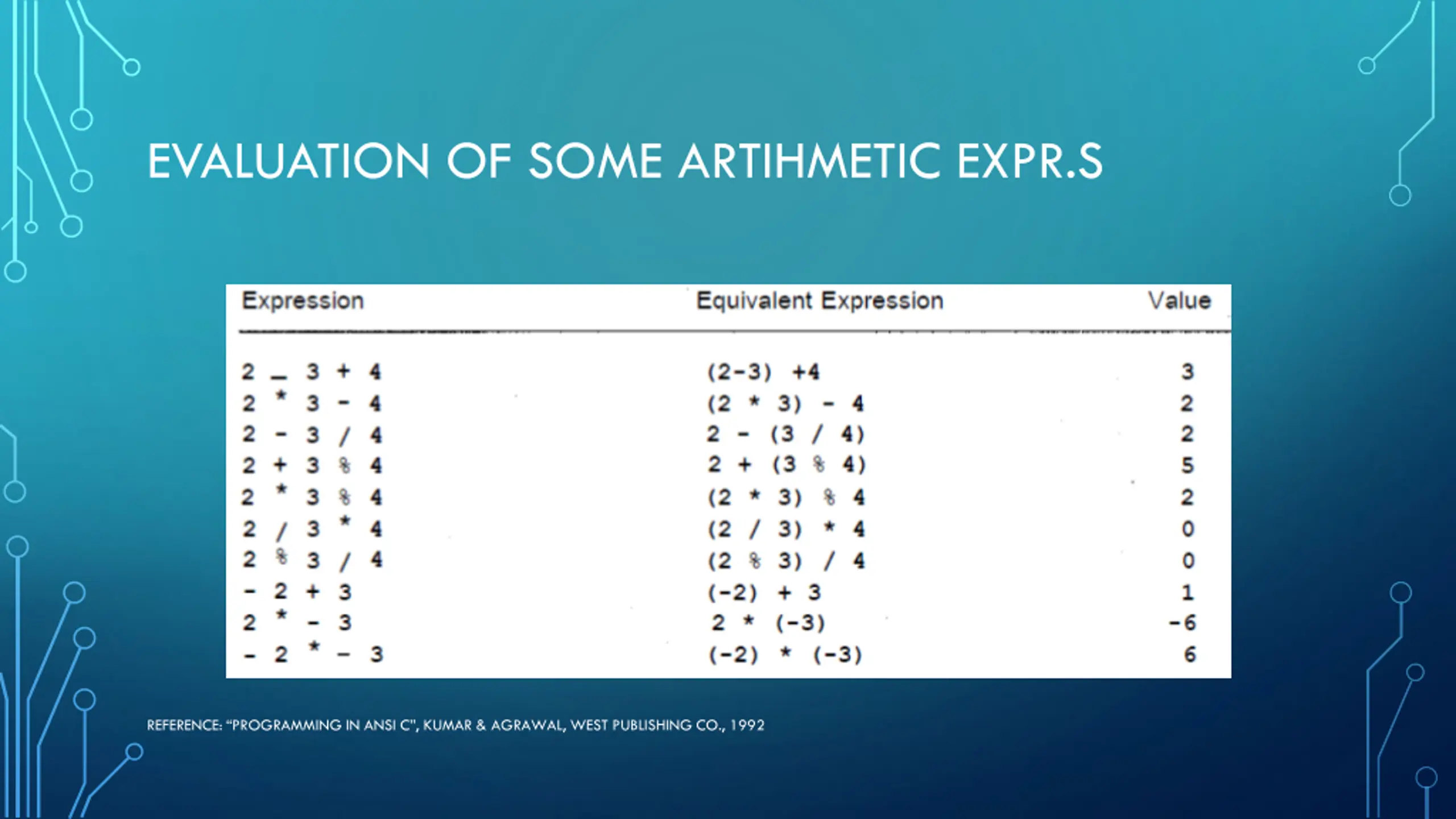

EVALUATION OF SOME ARTIHMETIC EXPR.S REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

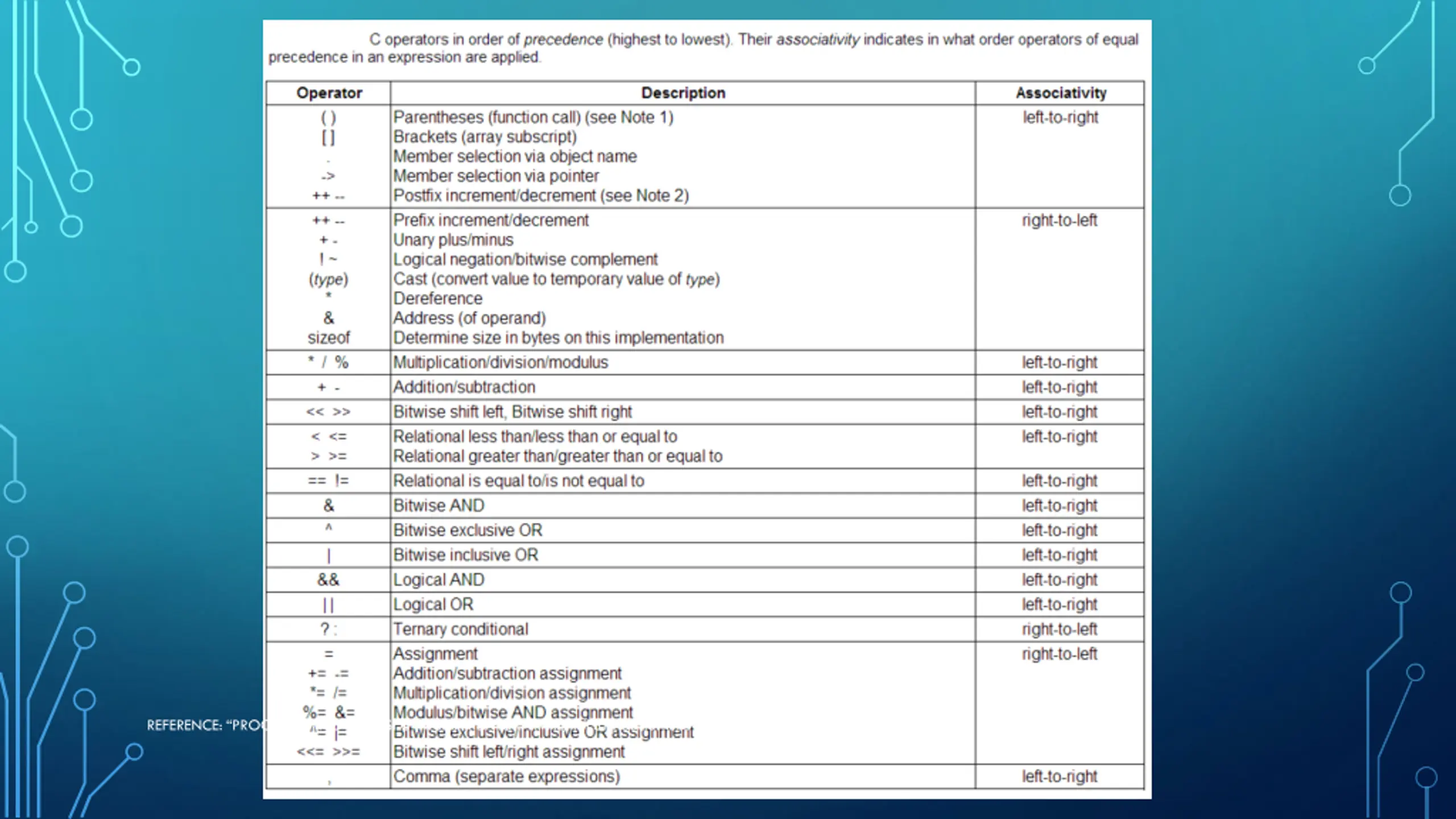

REFERENCE: PROGRAMMING IN ANSI C, KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

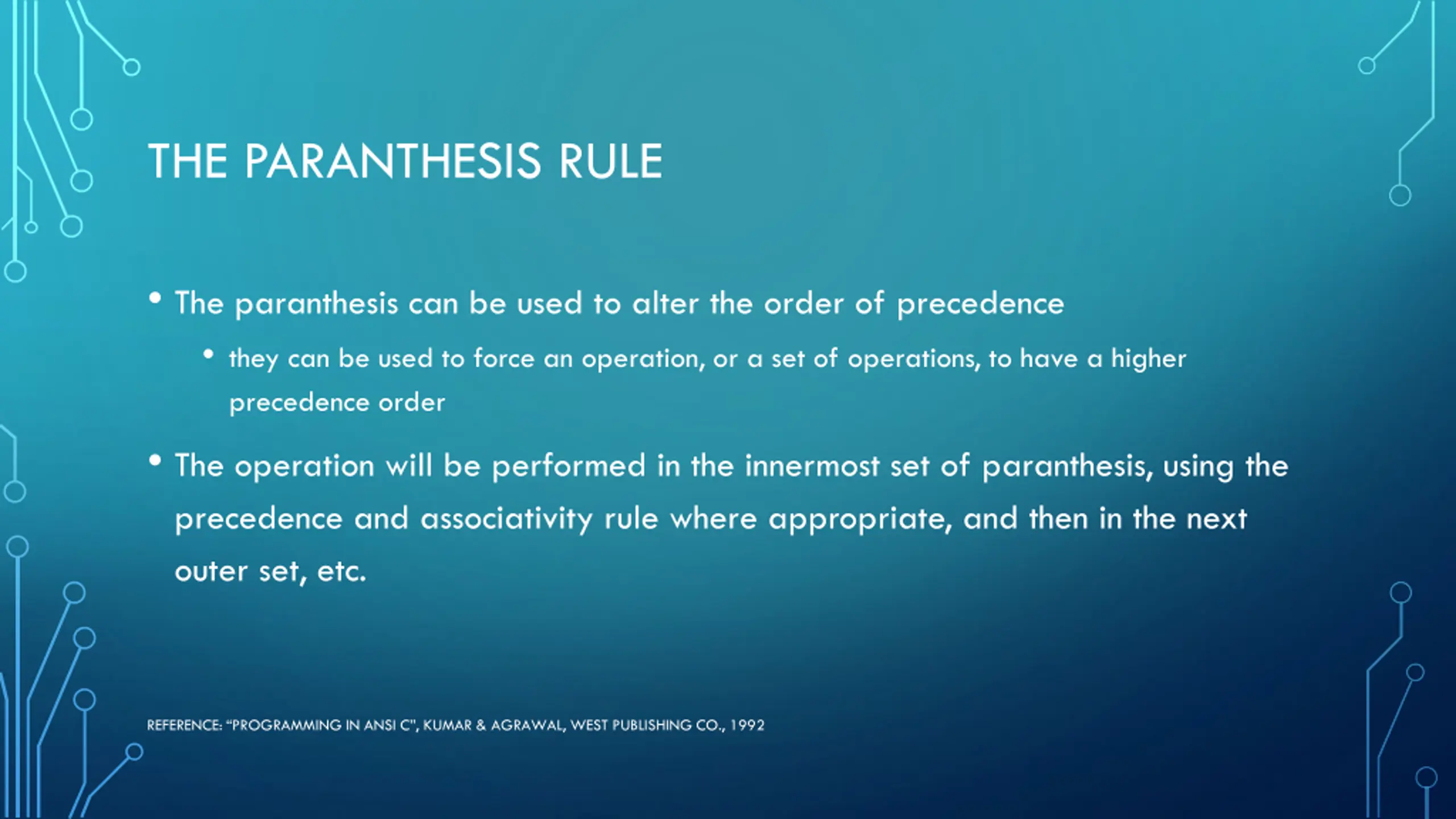

THE PARANTHESIS RULE The paranthesis can be used to alter the order of precedence they can be used to force an operation, or a set of operations, to have a higher precedence order The operation will be performed in the innermost set of paranthesis, using the precedence and associativity rule where appropriate, and then in the next outer set, etc. REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

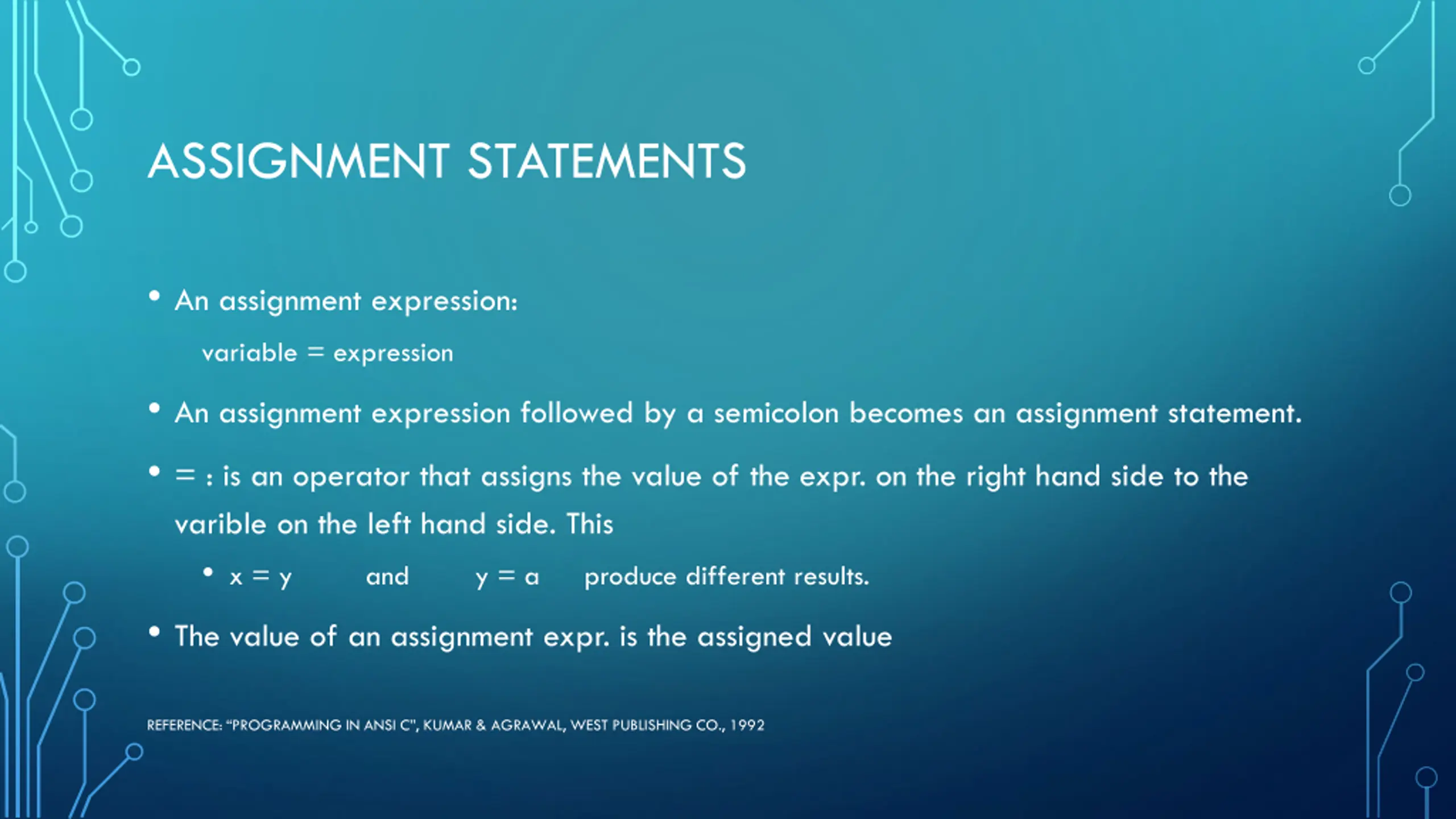

ASSIGNMENT STATEMENTS An assignment expression: variable = expression An assignment expression followed by a semicolon becomes an assignment statement. = : is an operator that assigns the value of the expr. on the right hand side to the varible on the left hand side. This x = y and y = a produce different results. The value of an assignment expr. is the assigned value REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

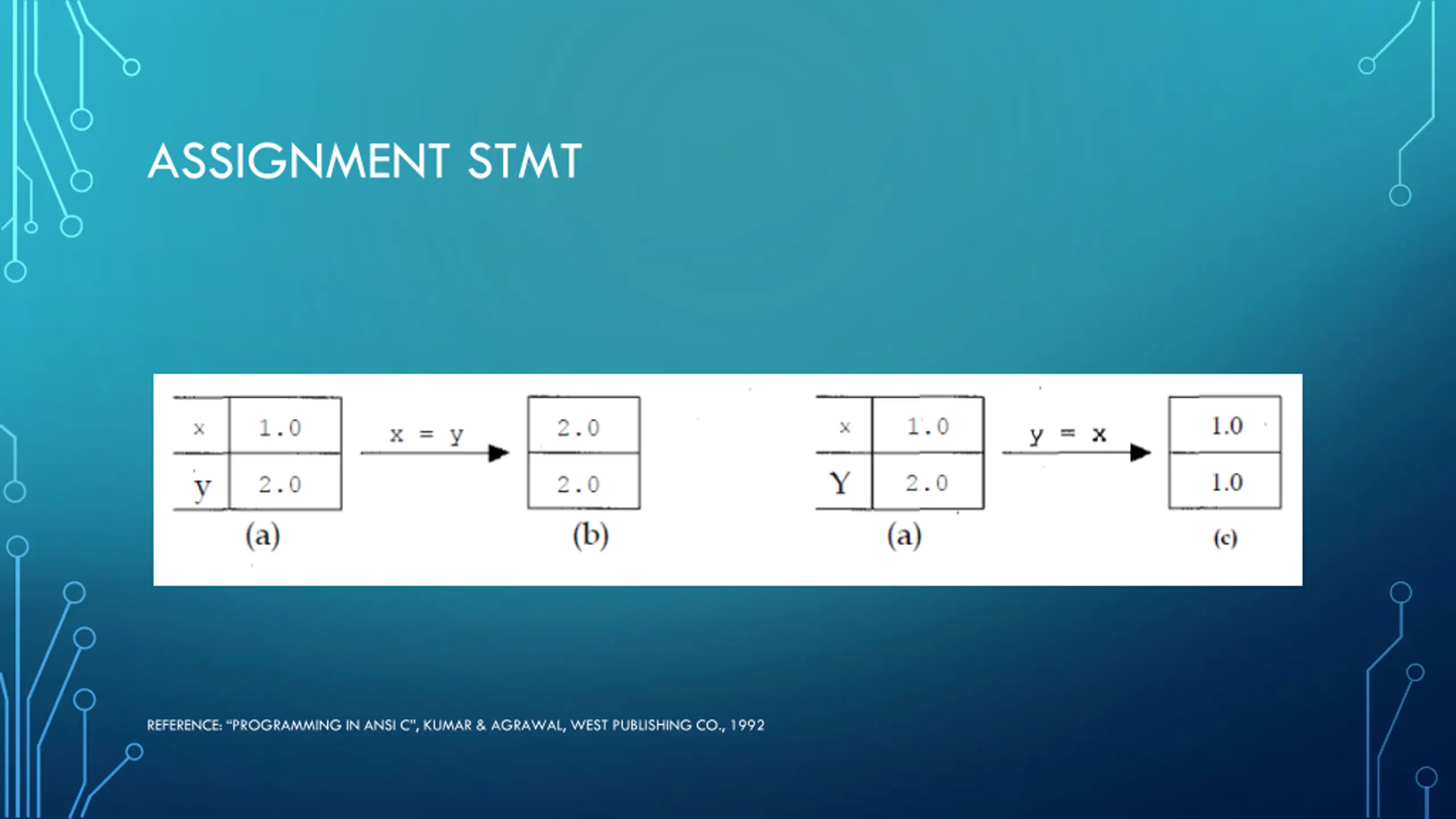

ASSIGNMENT STMT REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

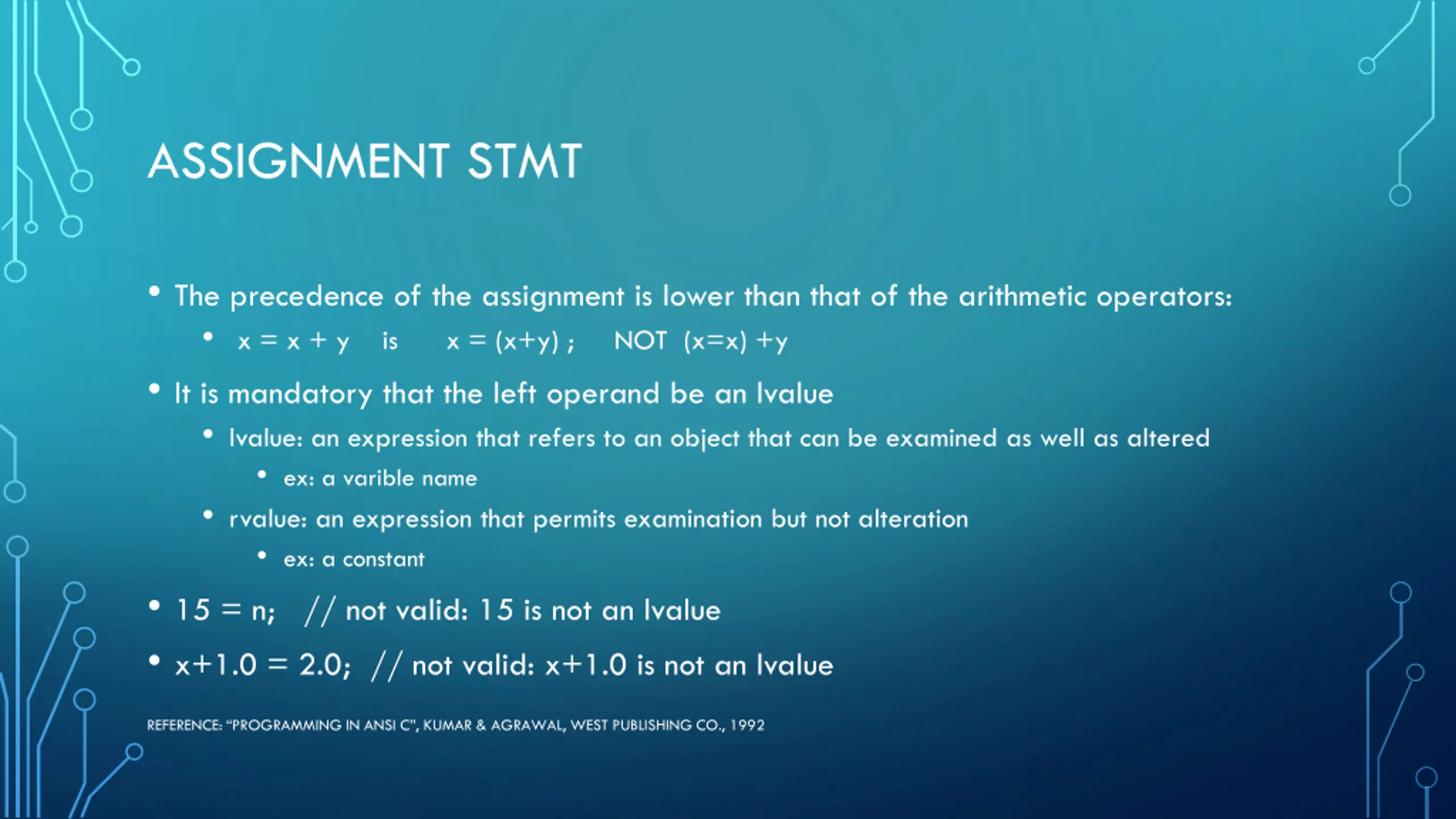

ASSIGNMENT STMT The precedence of the assignment is lower than that of the arithmetic operators: x = x + y is x = (x+y) ; NOT (x=x) +y It is mandatory that the left operand be an lvalue lvalue: an expression that refers to an object that can be examined as well as altered ex: a varible name rvalue: an expression that permits examination but not alteration ex: a constant 15 = n; // not valid: 15 is not an lvalue x+1.0 = 2.0; // not valid: x+1.0 is not an lvalue REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

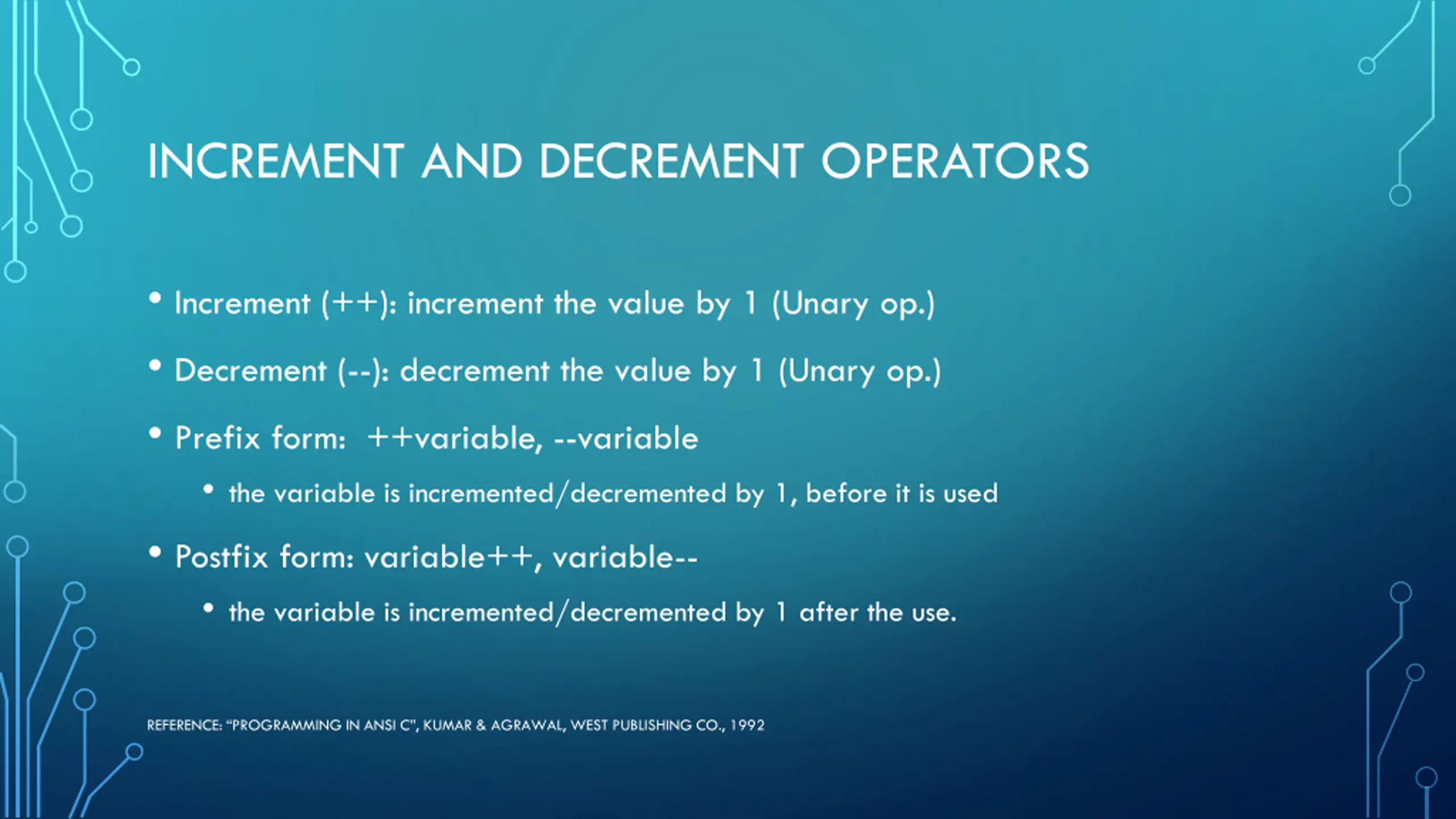

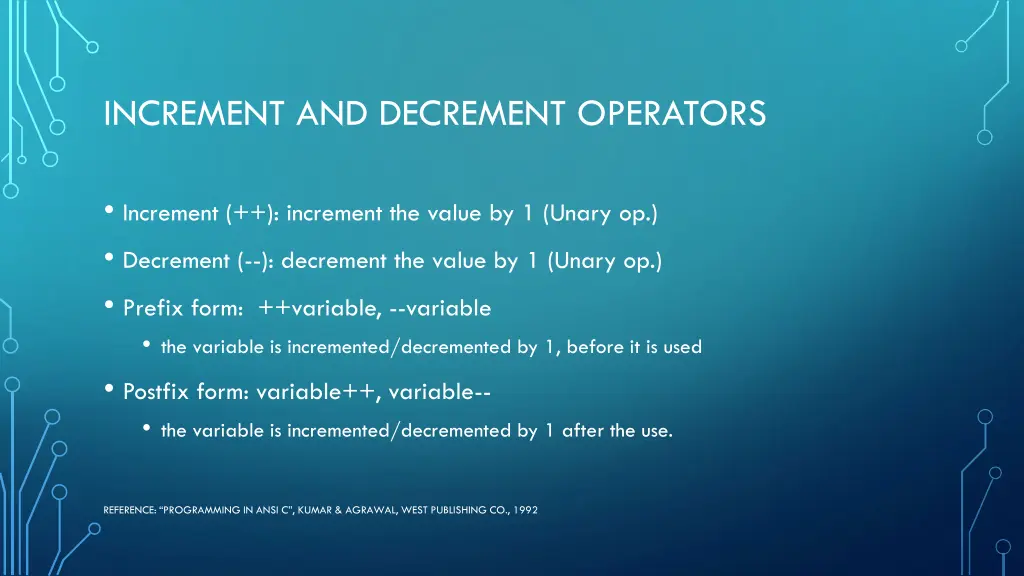

INCREMENT AND DECREMENT OPERATORS Increment (++): increment the value by 1 (Unary op.) Decrement (--): decrement the value by 1 (Unary op.) Prefix form: ++variable, --variable the variable is incremented/decremented by 1, before it is used Postfix form: variable++, variable-- the variable is incremented/decremented by 1 after the use. REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

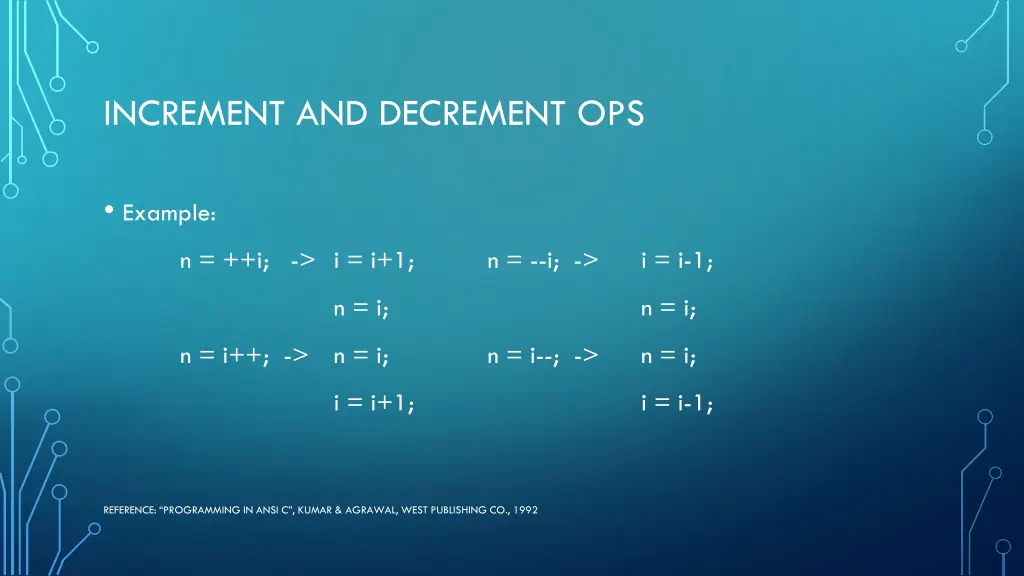

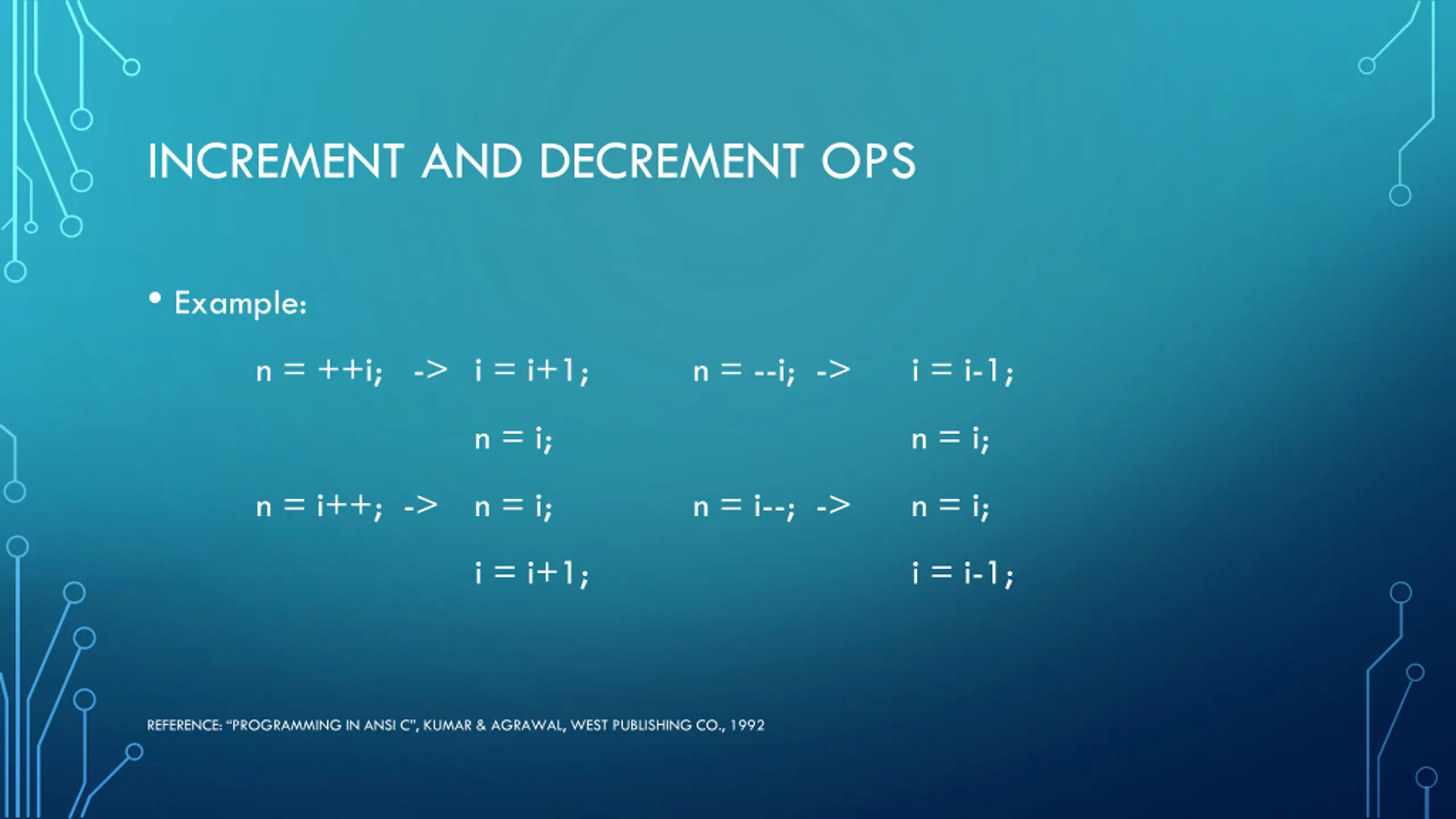

INCREMENT AND DECREMENT OPS Example: n = ++i; -> i = i+1; n = --i; -> i = i-1; n = i; n = i; n = i++; -> n = i; n = i--; -> n = i; i = i+1; i = i-1; REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

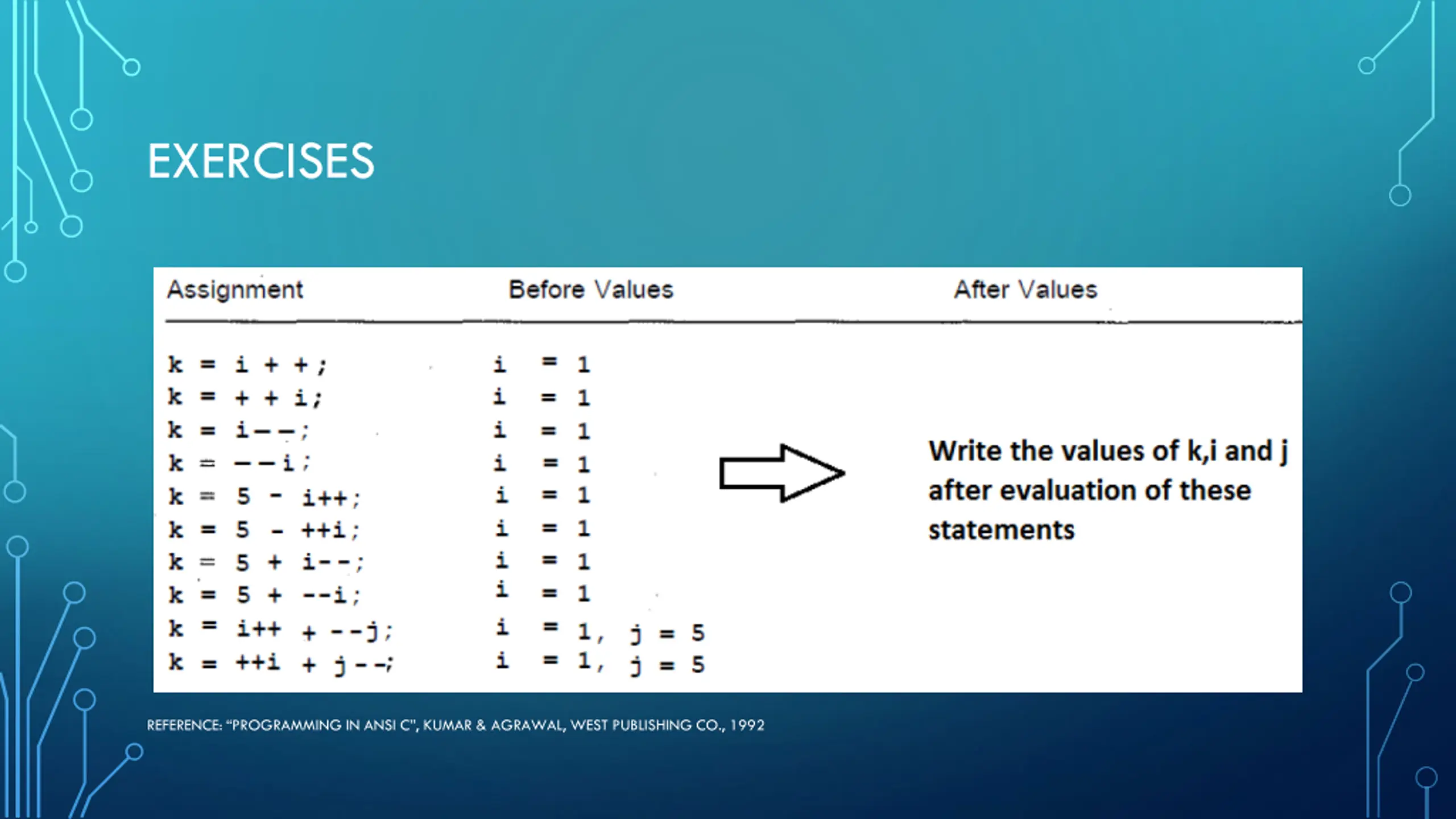

EXERCISES REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

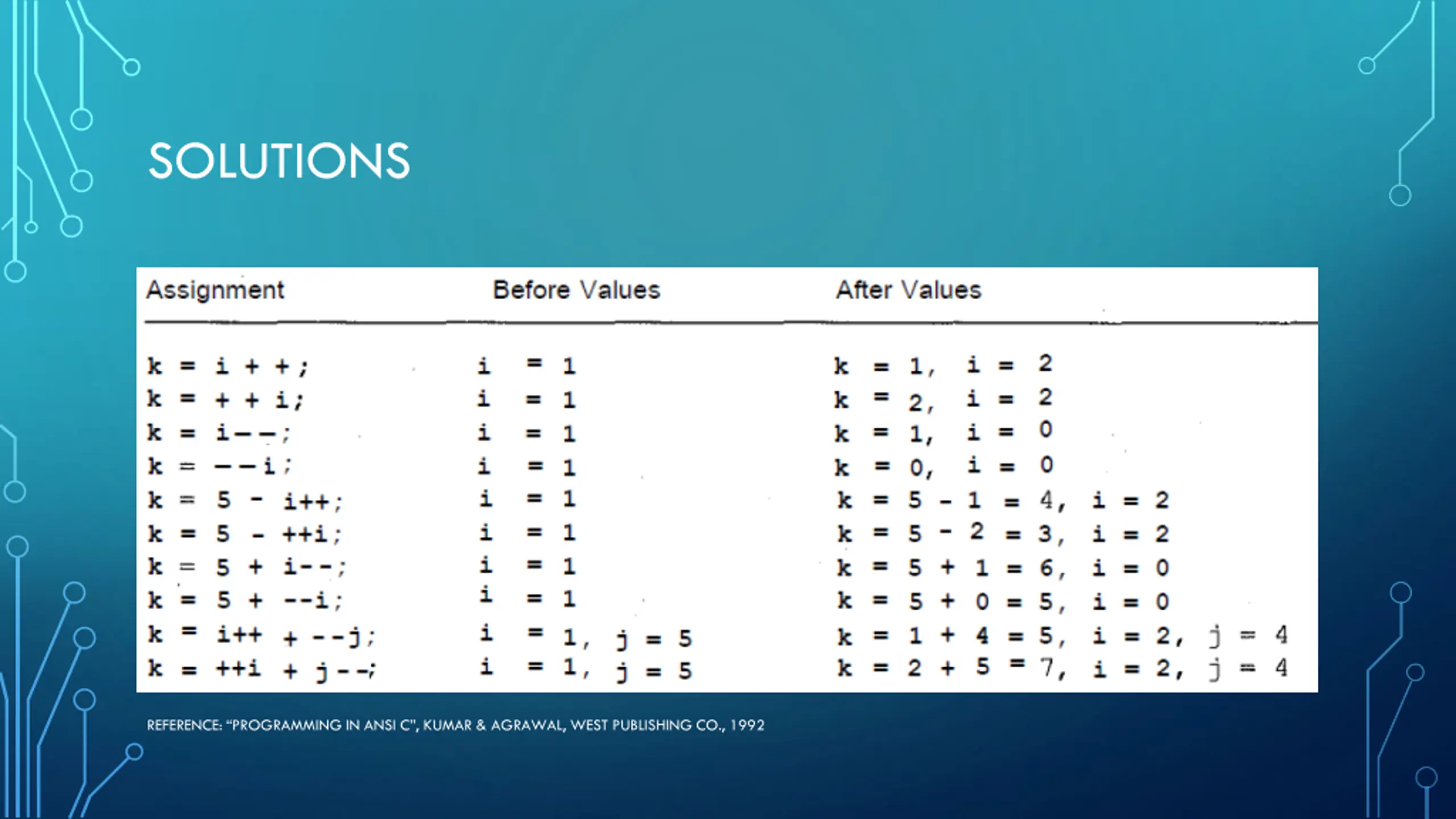

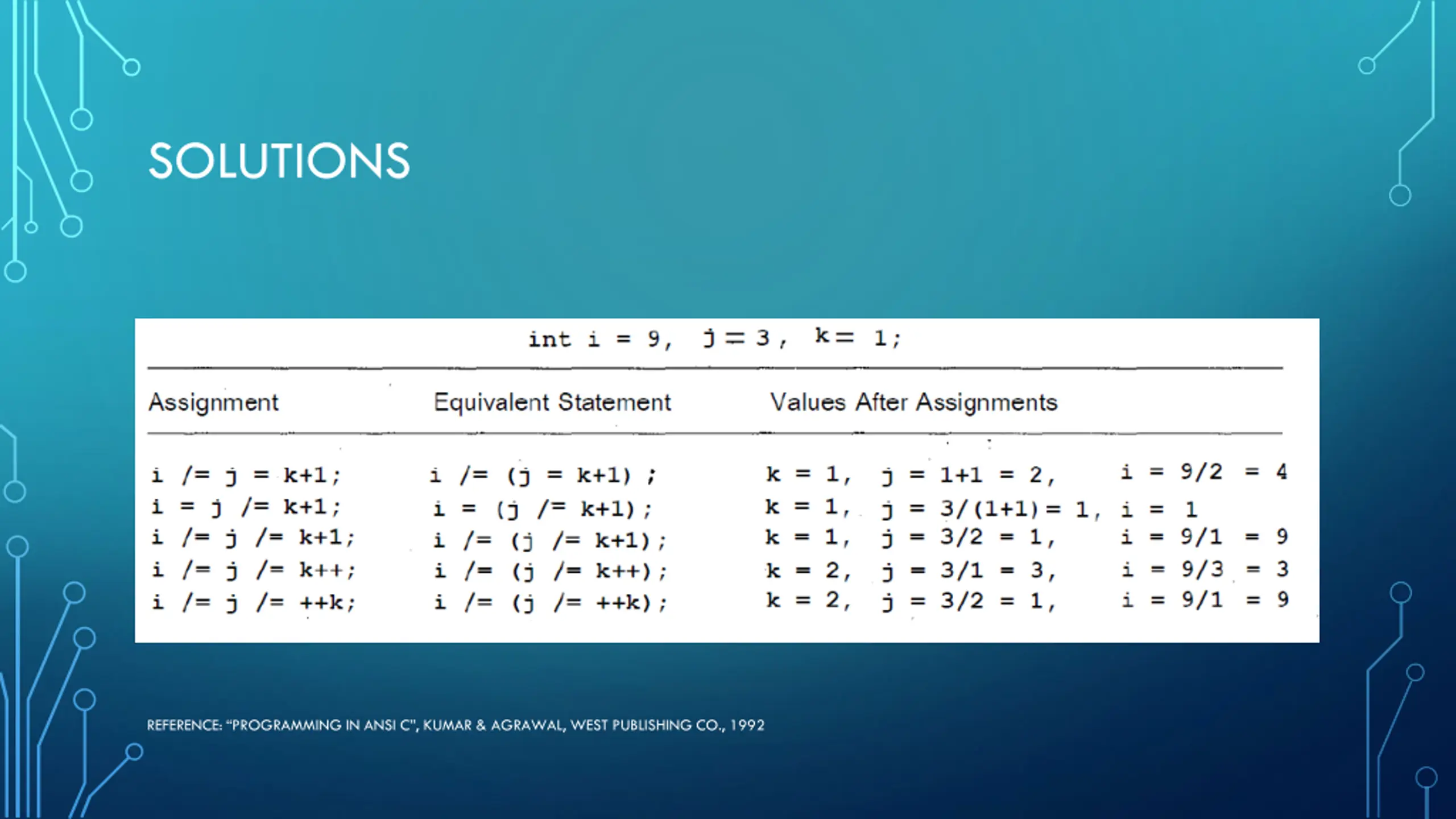

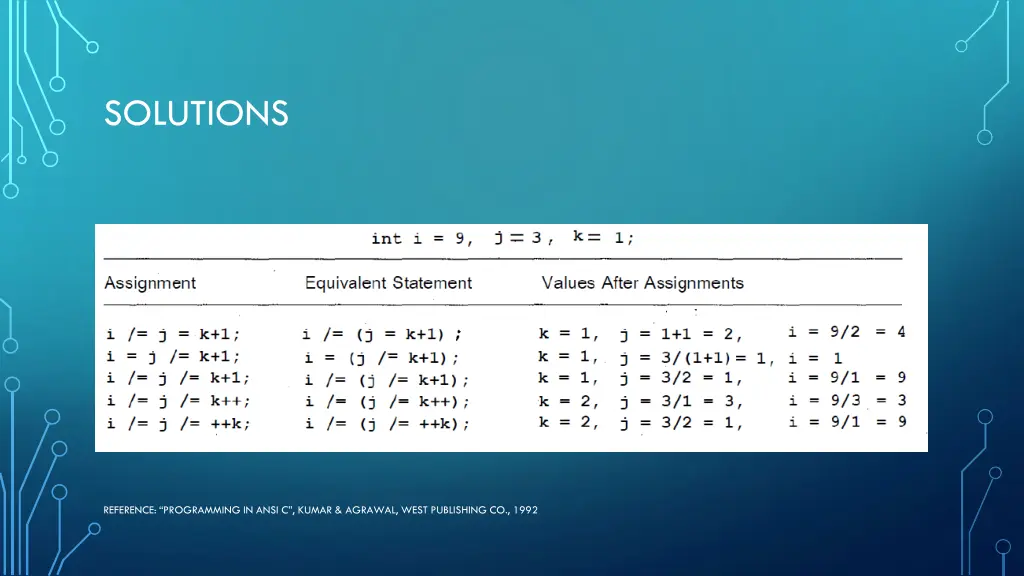

SOLUTIONS REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

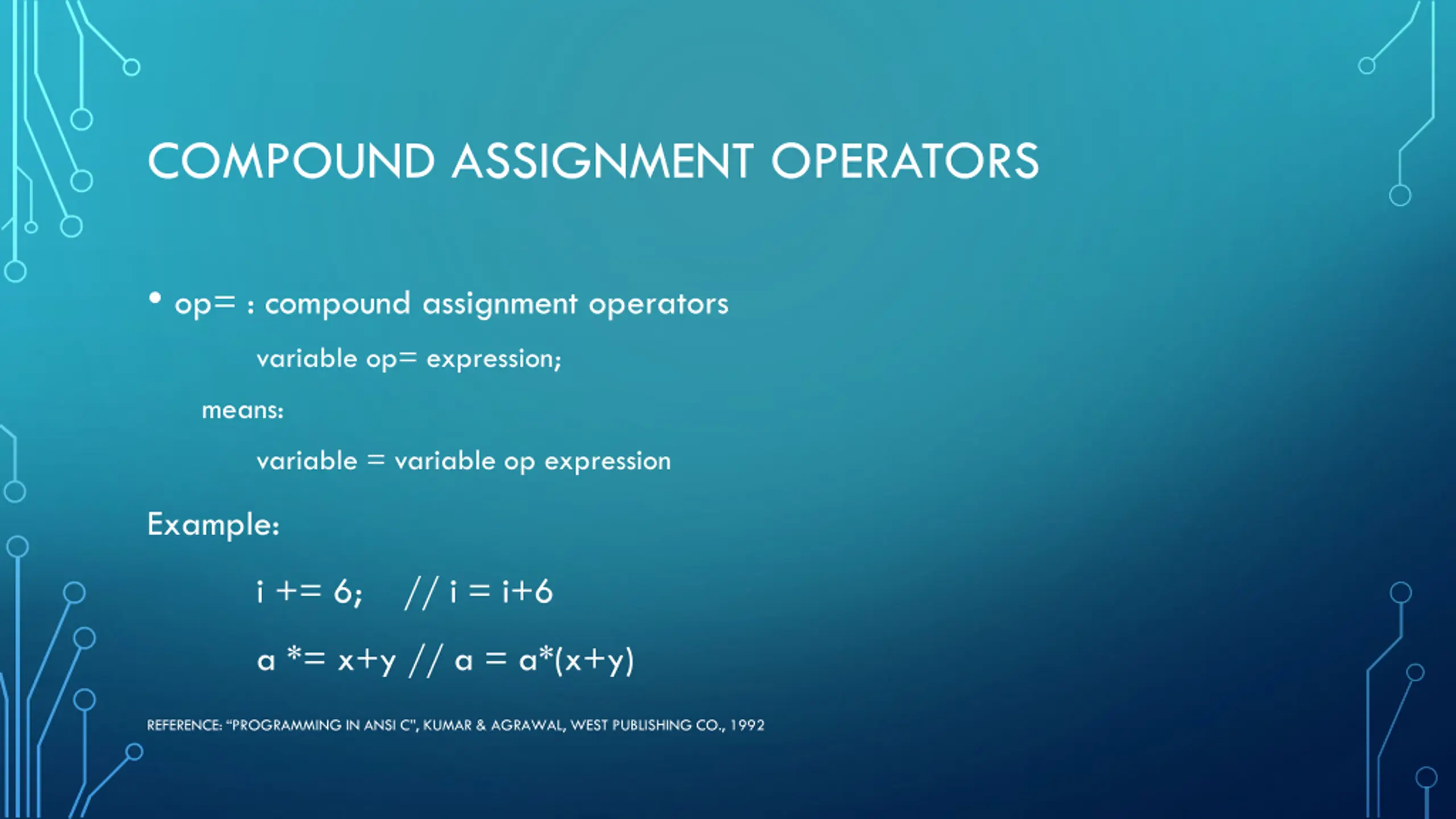

COMPOUND ASSIGNMENT OPERATORS op= : compound assignment operators variable op= expression; means: variable = variable op expression Example: i += 6; // i = i+6 a *= x+y // a = a*(x+y) REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992

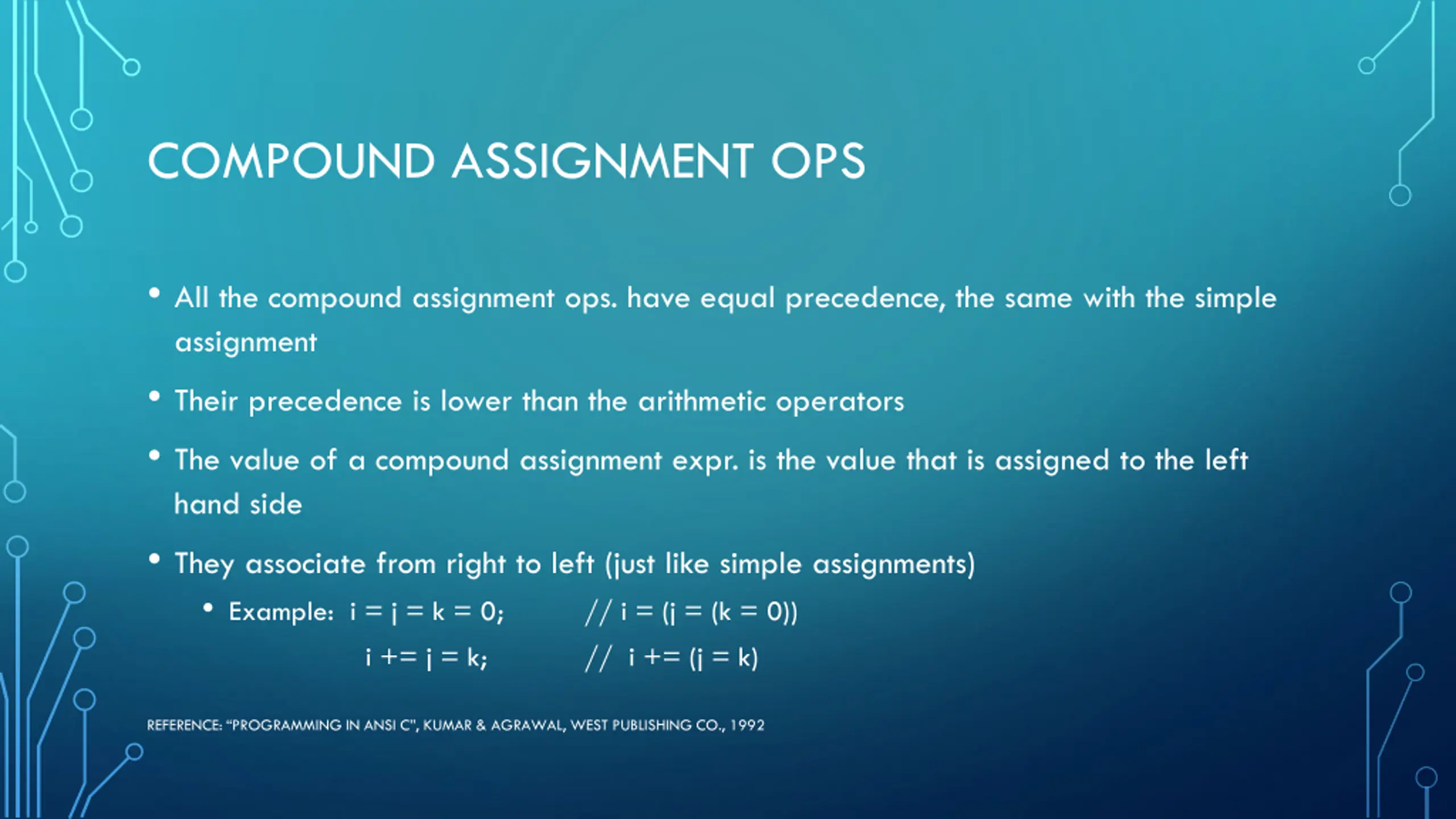

COMPOUND ASSIGNMENT OPS All the compound assignment ops. have equal precedence, the same with the simple assignment Their precedence is lower than the arithmetic operators The value of a compound assignment expr. is the value that is assigned to the left hand side They associate from right to left (just like simple assignments) Example: i = j = k = 0; // i = (j = (k = 0)) i += j = k; // i += (j = k) REFERENCE: PROGRAMMING IN ANSI C , KUMAR & AGRAWAL, WEST PUBLISHING CO., 1992
