CMPT 405/705 Design & Analysis of Algorithms March 14, 2022

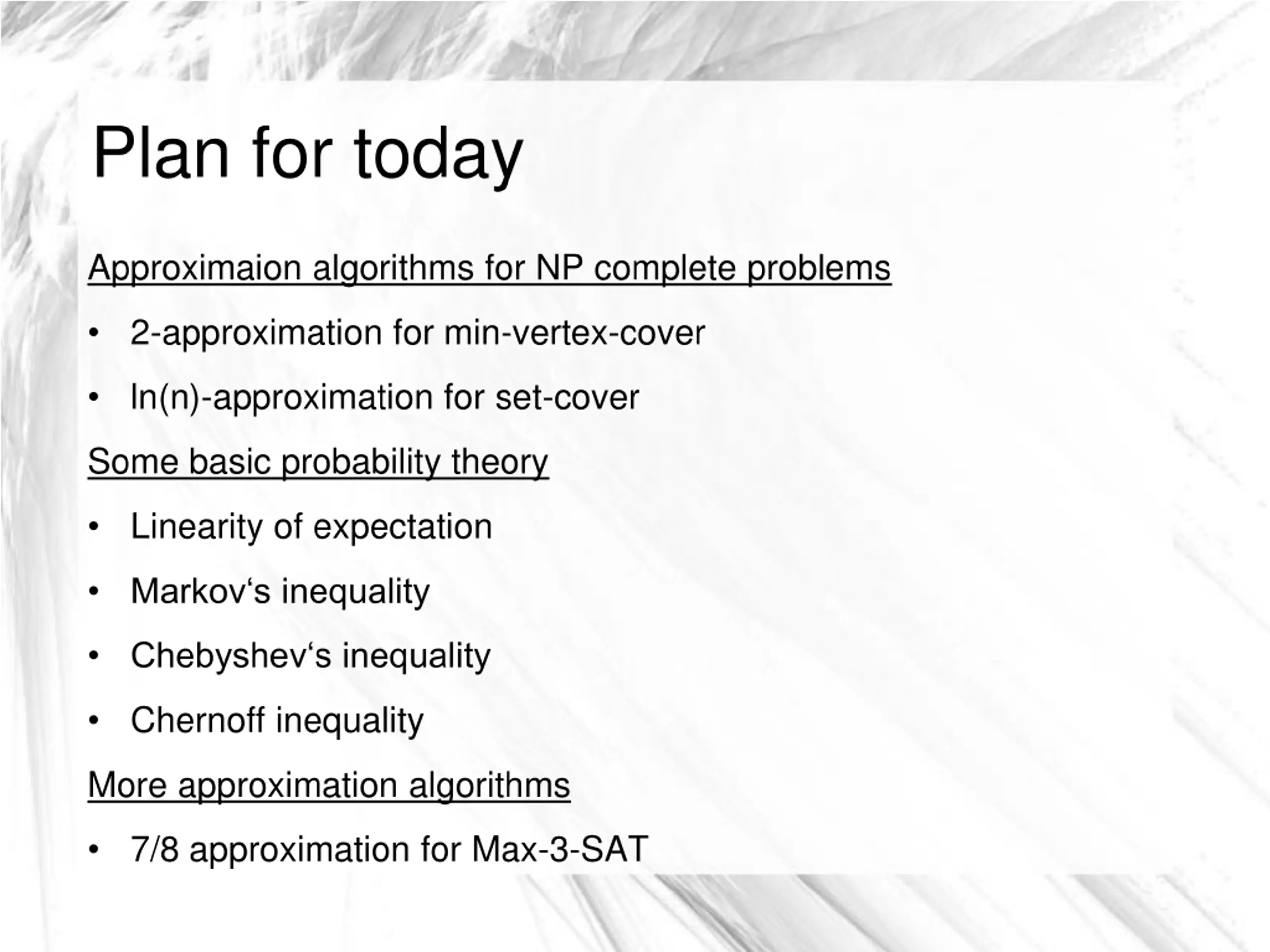

Plan for today Approximaion algorithms for NP complete problems 2-approximation for min-vertex-cover ln(n)-approximation for set-cover Some basic probability theory Linearity of expectation Markov s inequality Chebyshev s inequality Chernoff inequality More approximation algorithms 7/8 approximation for Max-3-SAT

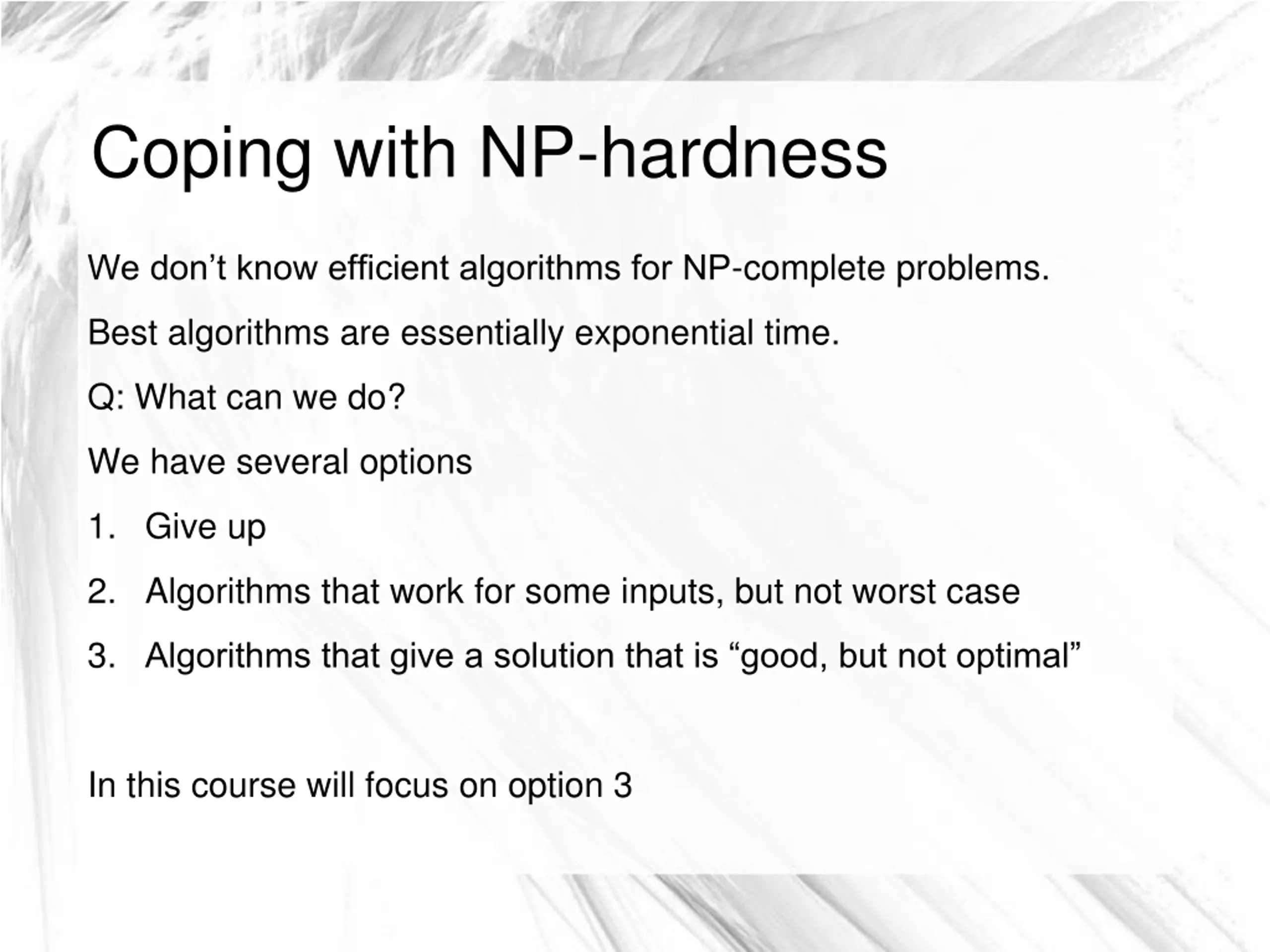

Coping with NP-hardness We don t know efficient algorithms for NP-complete problems. Best algorithms are essentially exponential time. Q: What can we do? We have several options 1. Give up 2. Algorithms that work for some inputs, but not worst case 3. Algorithms that give a solution that is good, but not optimal In this course will focus on option 3

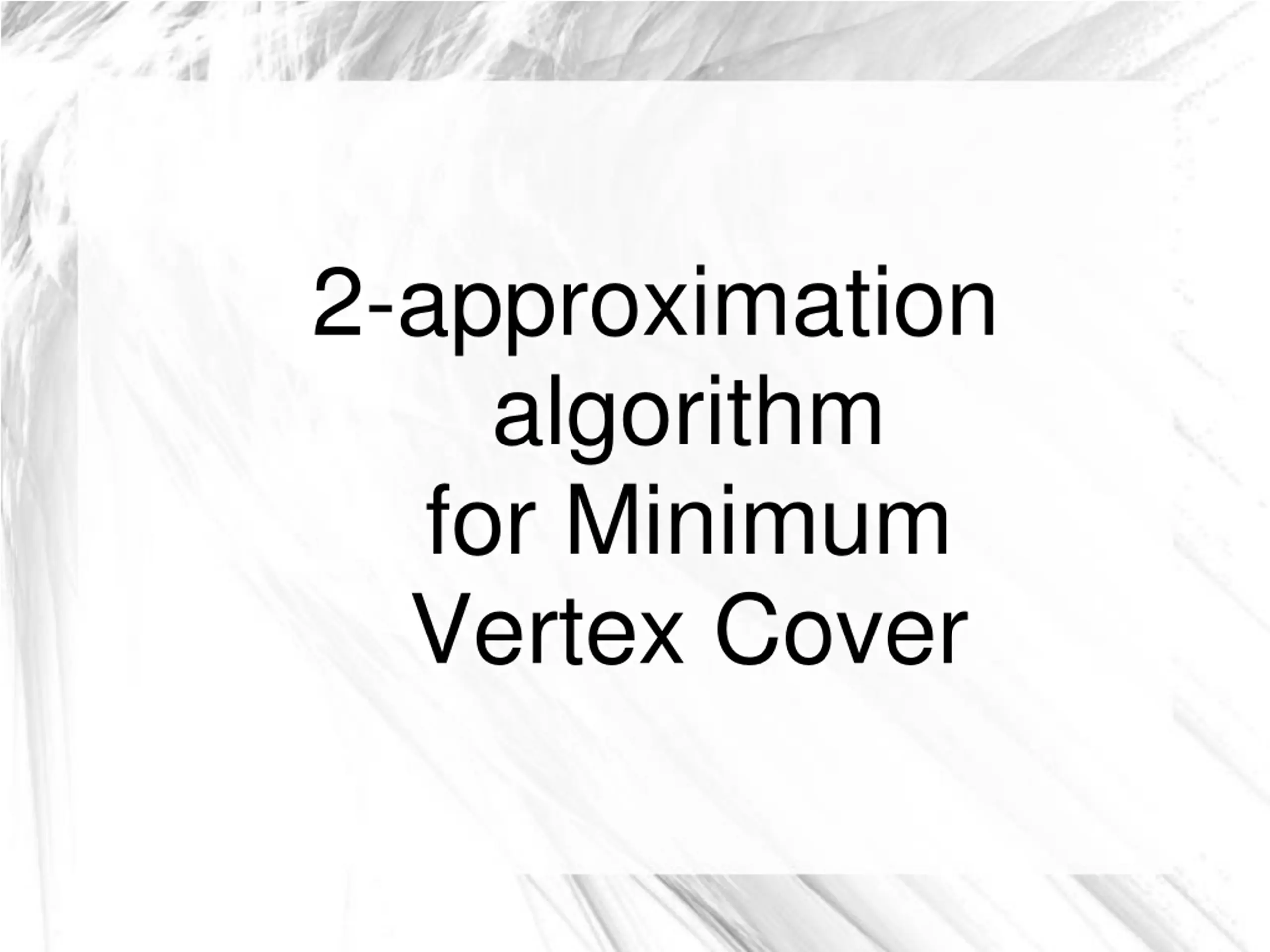

2-approximation algorithm for Minimum Vertex Cover

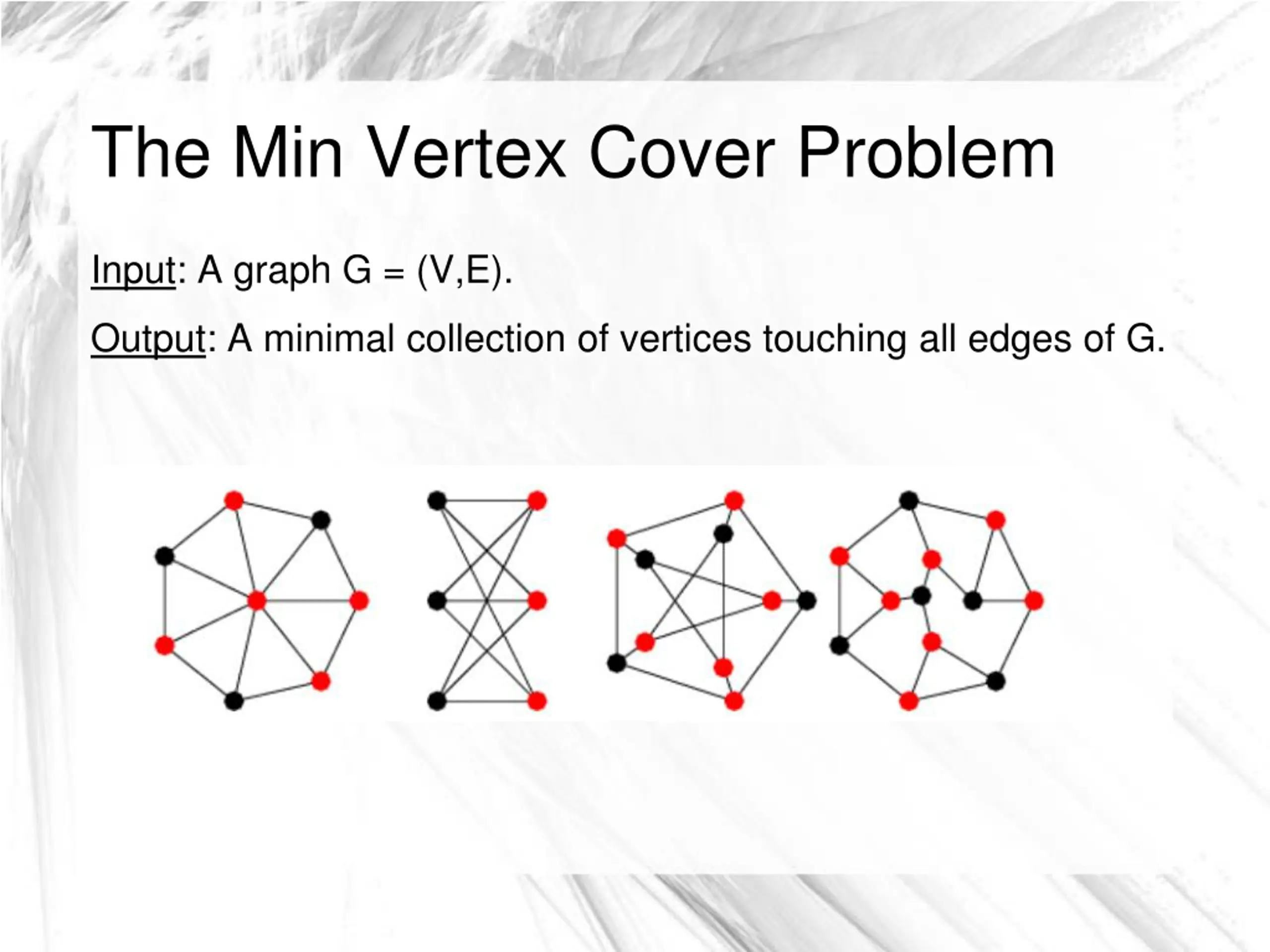

The Min Vertex Cover Problem Input: A graph G = (V,E). Output: A minimal collection of vertices touching all edges of G.

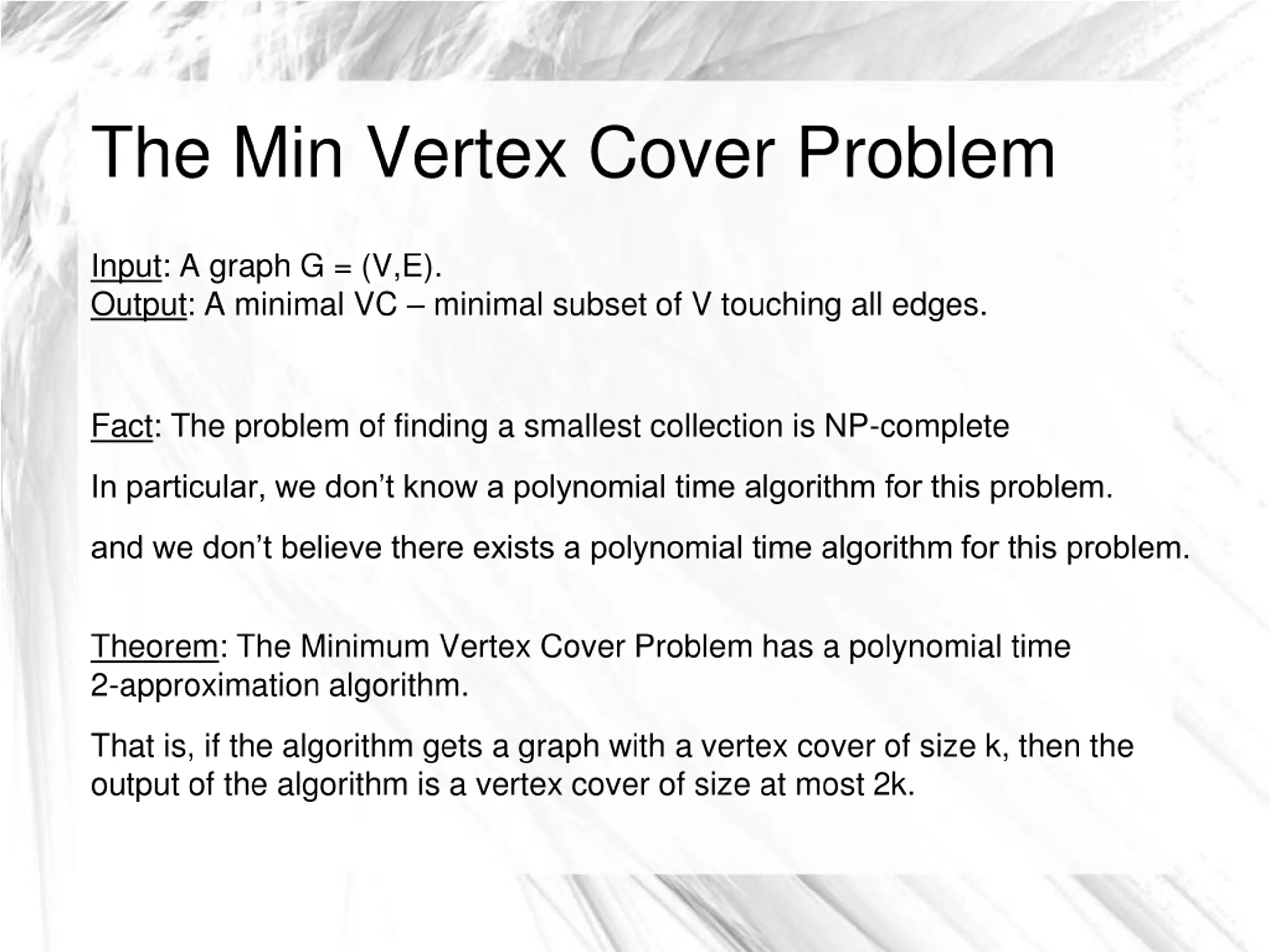

The Min Vertex Cover Problem Input: A graph G = (V,E). Output: A minimal VC minimal subset of V touching all edges. Fact: The problem of finding a smallest collection is NP-complete In particular, we don t know a polynomial time algorithm for this problem. and we don t believe there exists a polynomial time algorithm for this problem. Theorem: The Minimum Vertex Cover Problem has a polynomial time 2-approximation algorithm. That is, if the algorithm gets a graph with a vertex cover of size k, then the output of the algorithm is a vertex cover of size at most 2k.

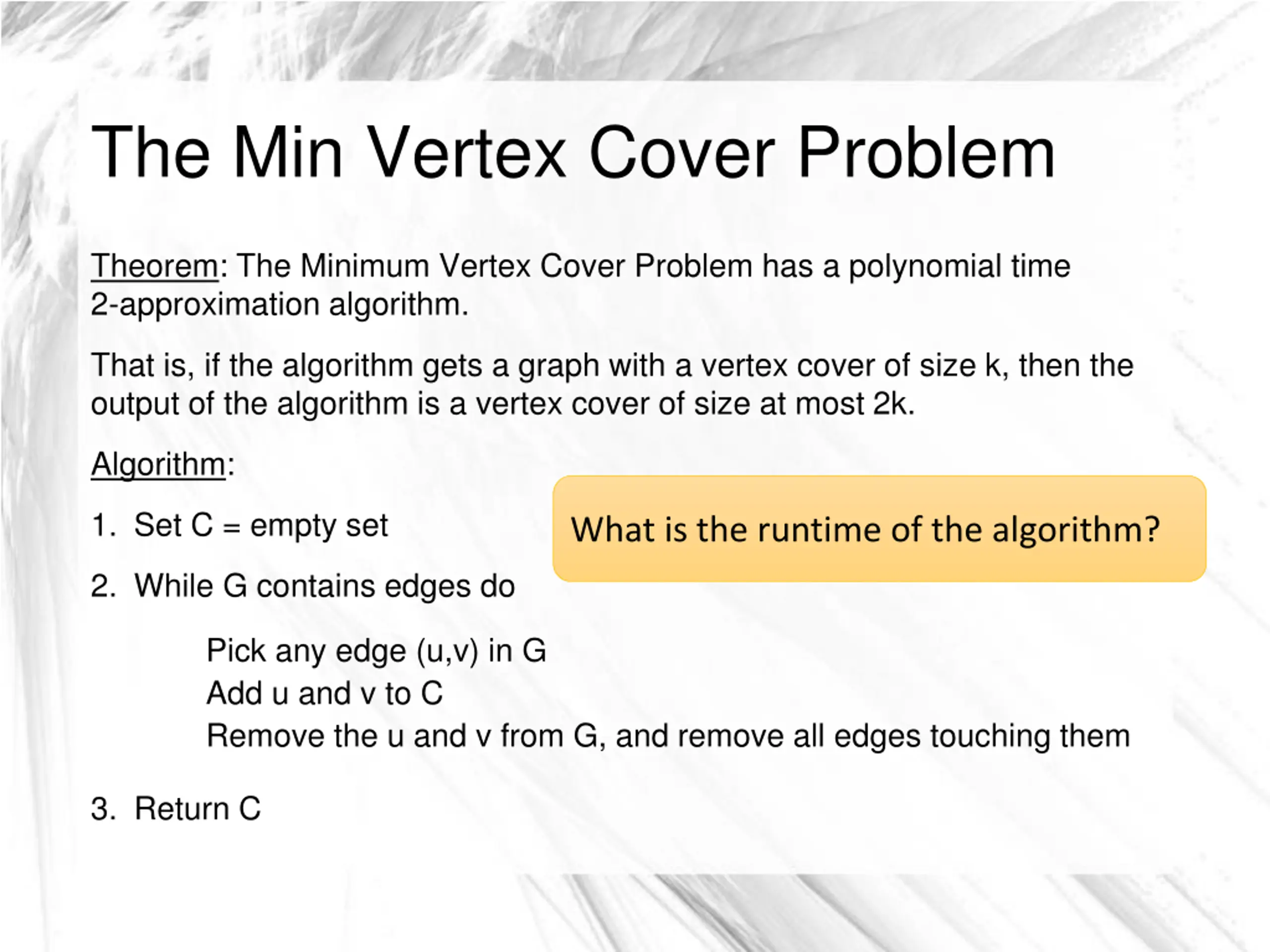

The Min Vertex Cover Problem Theorem: The Minimum Vertex Cover Problem has a polynomial time 2-approximation algorithm. That is, if the algorithm gets a graph with a vertex cover of size k, then the output of the algorithm is a vertex cover of size at most 2k. Algorithm: 1. Set C = empty set What is the runtime of the algorithm? 2. While G contains edges do Pick any edge (u,v) in G Add u and v to C Remove the u and v from G, and remove all edges touching them 3. Return C

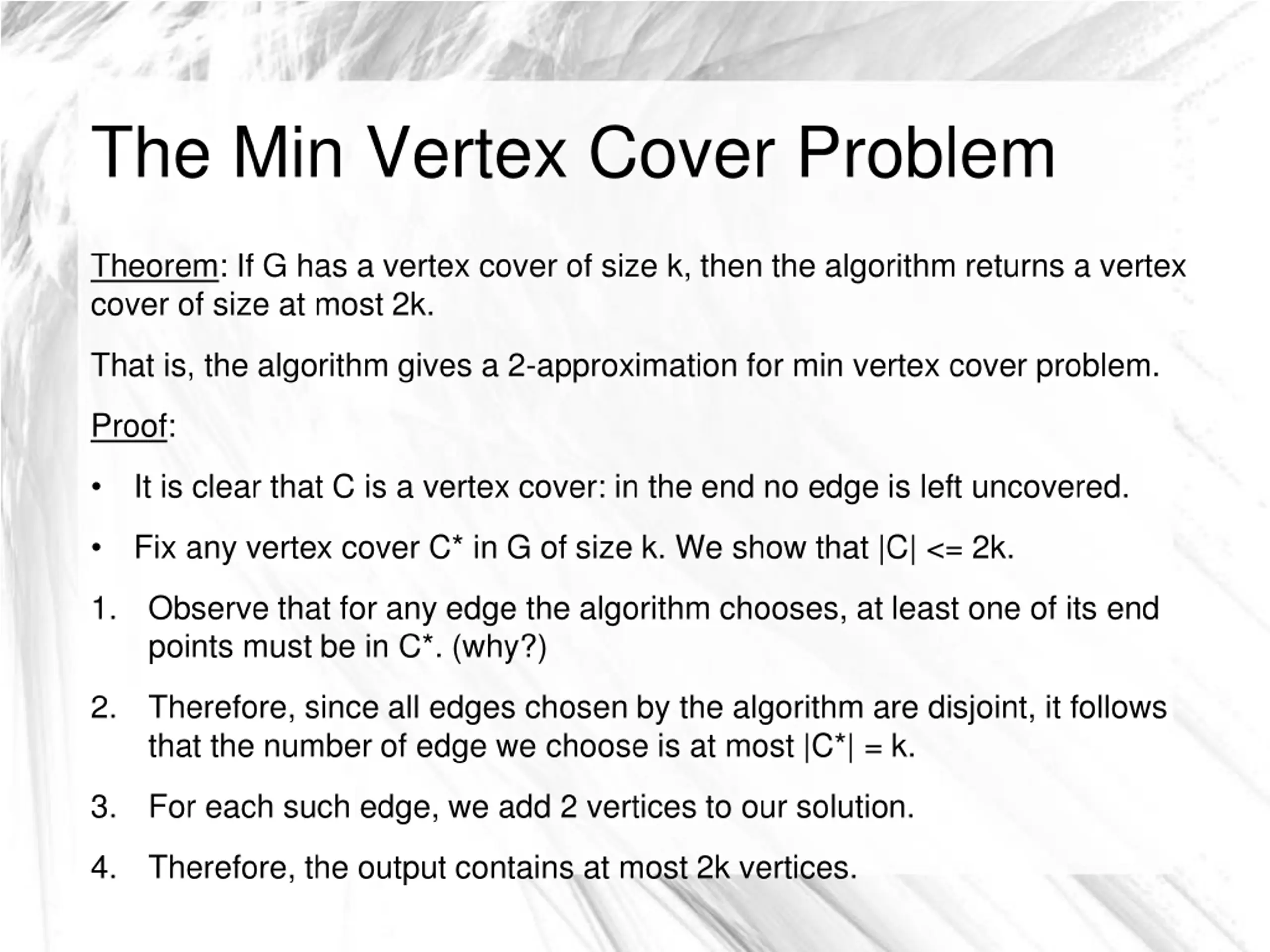

The Min Vertex Cover Problem Theorem: If G has a vertex cover of size k, then the algorithm returns a vertex cover of size at most 2k. That is, the algorithm gives a 2-approximation for min vertex cover problem. Proof: It is clear that C is a vertex cover: in the end no edge is left uncovered. Fix any vertex cover C* in G of size k. We show that |C| <= 2k. 1. Observe that for any edge the algorithm chooses, at least one of its end points must be in C*. (why?) 2. Therefore, since all edges chosen by the algorithm are disjoint, it follows that the number of edge we choose is at most |C*| = k. 3. For each such edge, we add 2 vertices to our solution. 4. Therefore, the output contains at most 2k vertices.

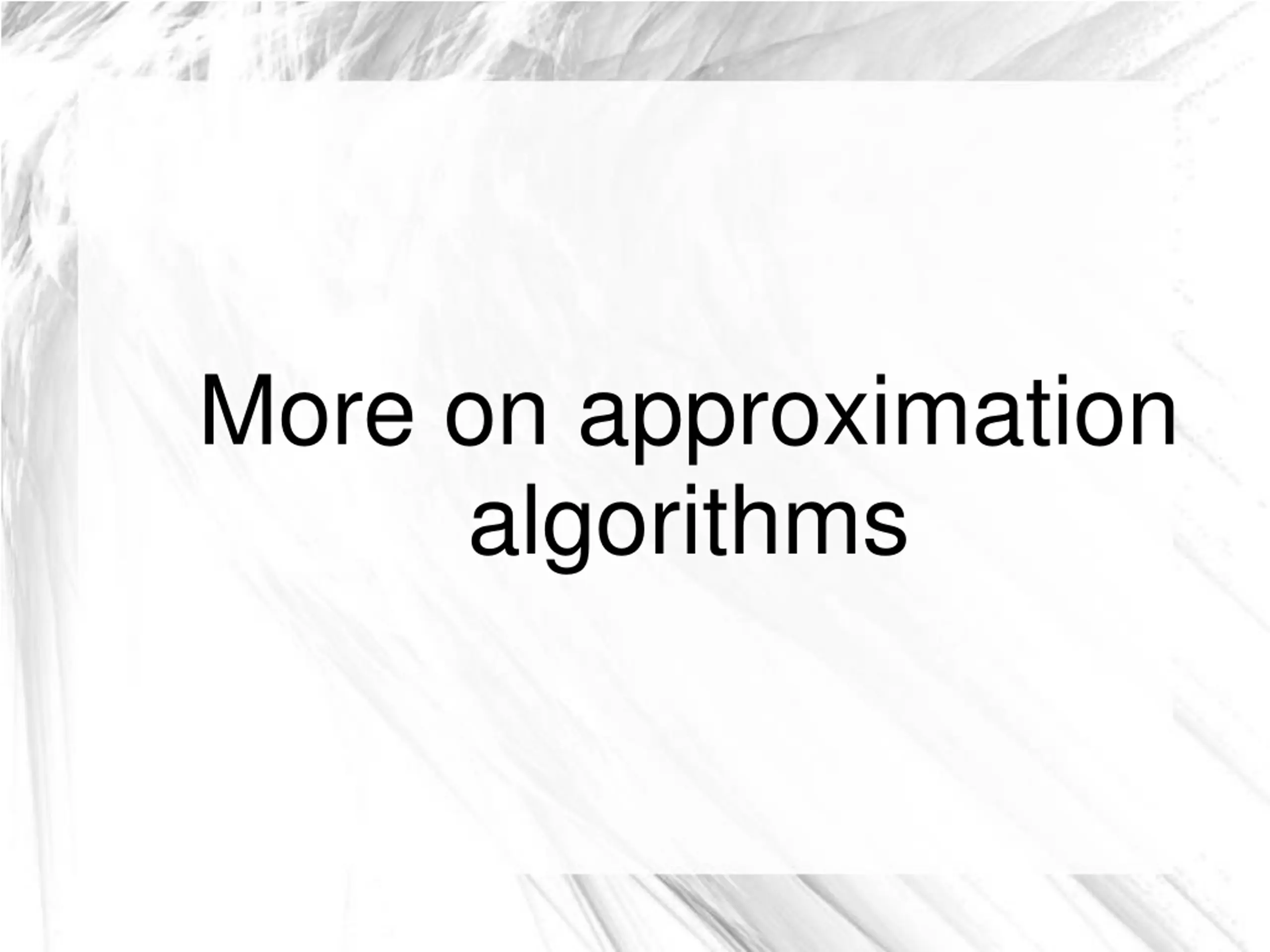

More on approximation algorithms

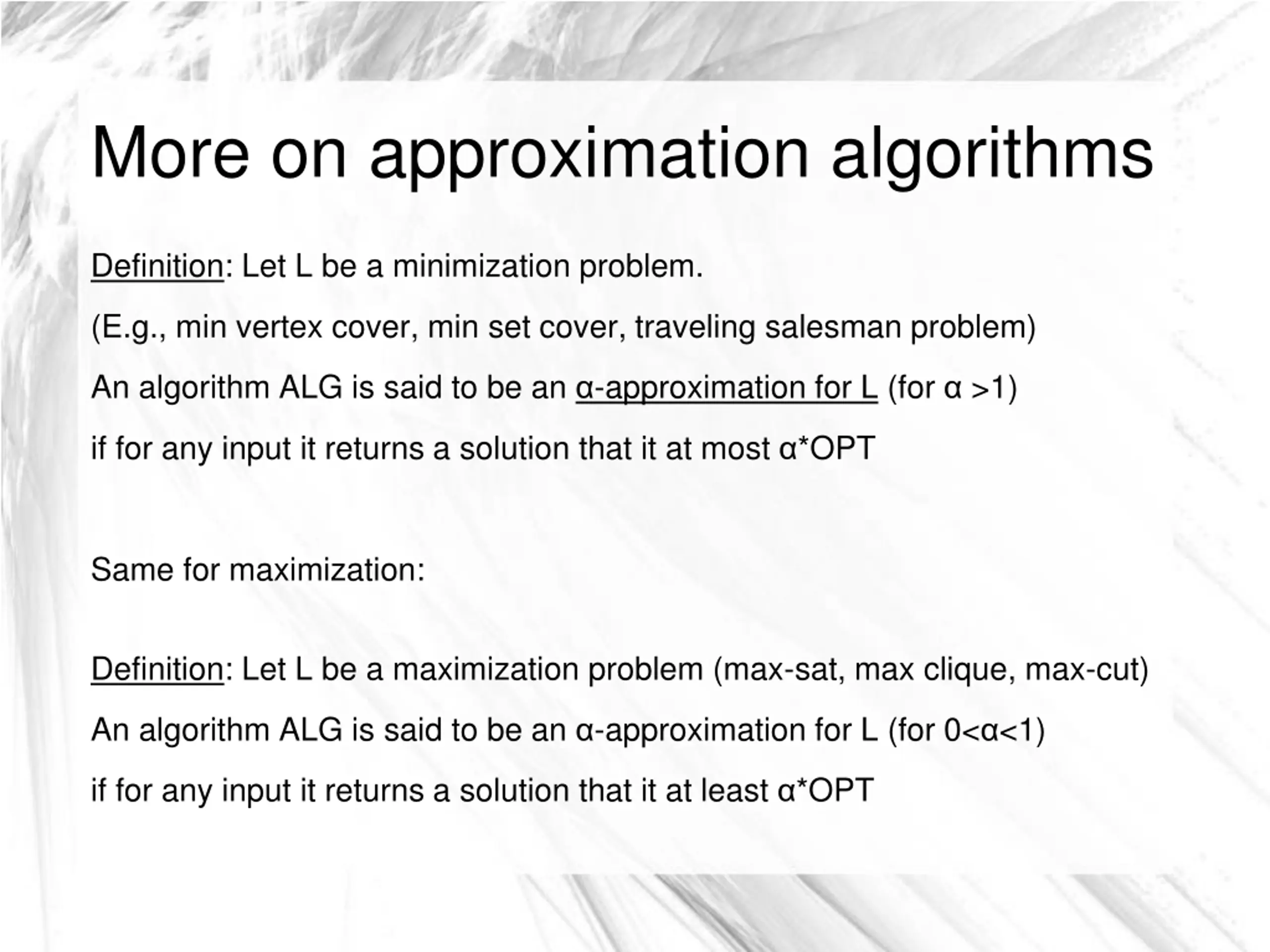

More on approximation algorithms Definition: Let L be a minimization problem. (E.g., min vertex cover, min set cover, traveling salesman problem) An algorithm ALG is said to be an -approximation for L (for >1) if for any input it returns a solution that it at most *OPT Same for maximization: Definition: Let L be a maximization problem (max-sat, max clique, max-cut) An algorithm ALG is said to be an -approximation for L (for 0< <1) if for any input it returns a solution that it at least *OPT

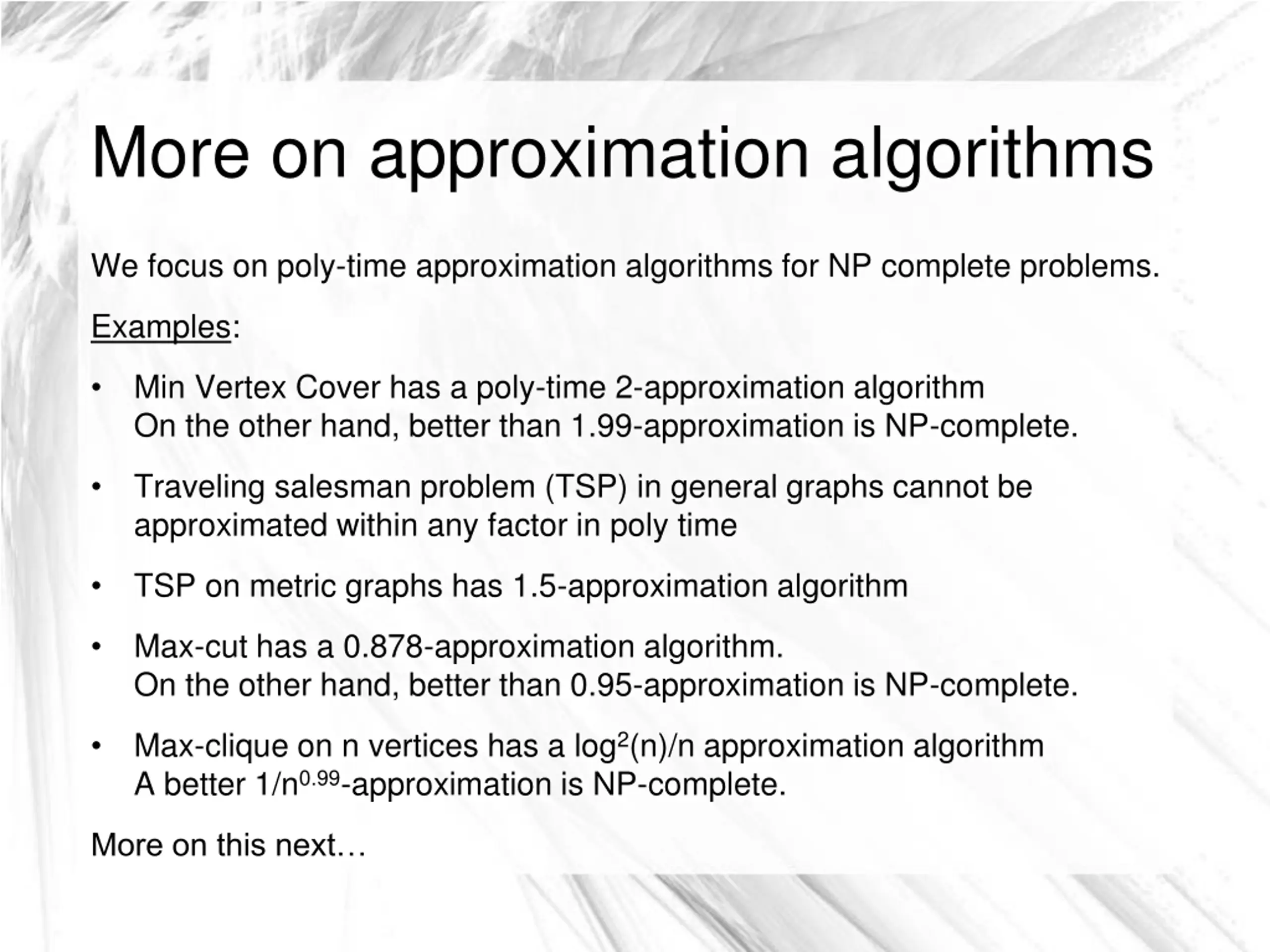

More on approximation algorithms We focus on poly-time approximation algorithms for NP complete problems. Examples: Min Vertex Cover has a poly-time 2-approximation algorithm On the other hand, better than 1.99-approximation is NP-complete. Traveling salesman problem (TSP) in general graphs cannot be approximated within any factor in poly time TSP on metric graphs has 1.5-approximation algorithm Max-cut has a 0.878-approximation algorithm. On the other hand, better than 0.95-approximation is NP-complete. Max-clique on n vertices has a log2(n)/n approximation algorithm A better 1/n0.99-approximation is NP-complete. More on this next

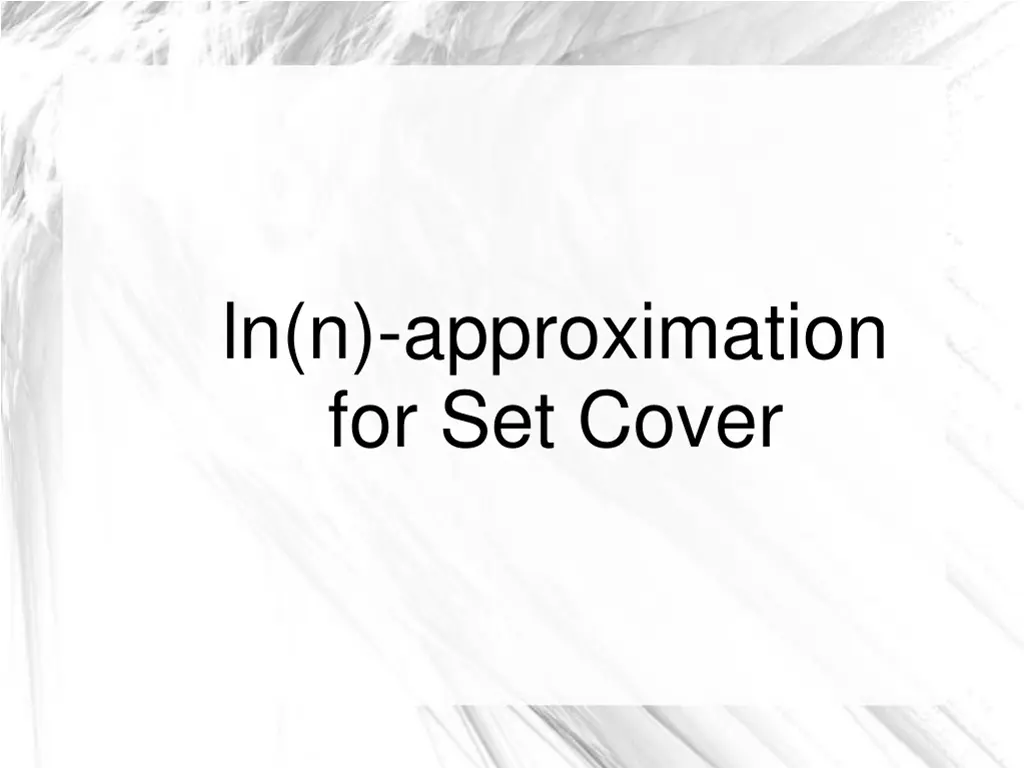

ln(n)-approximation for Set Cover

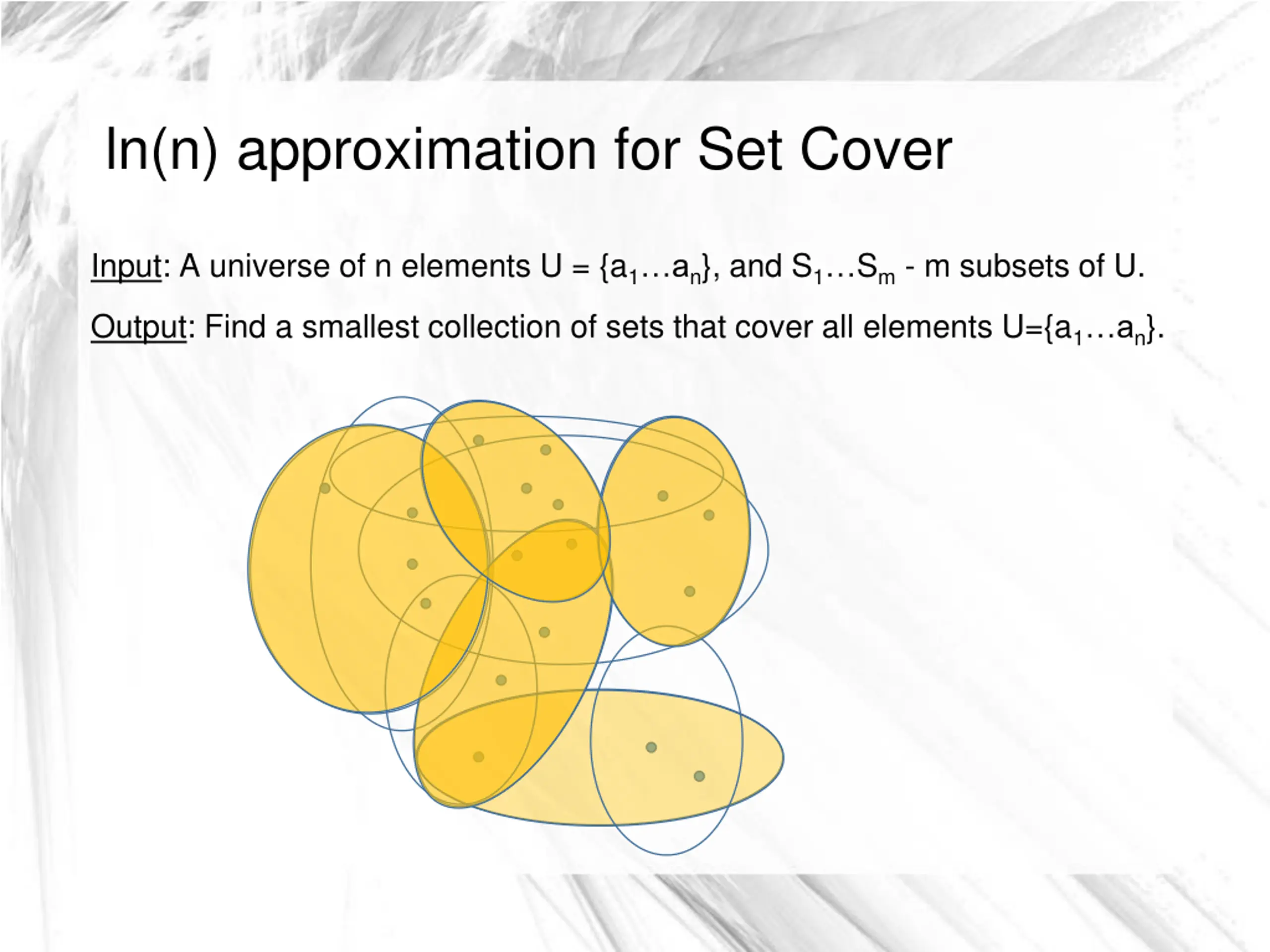

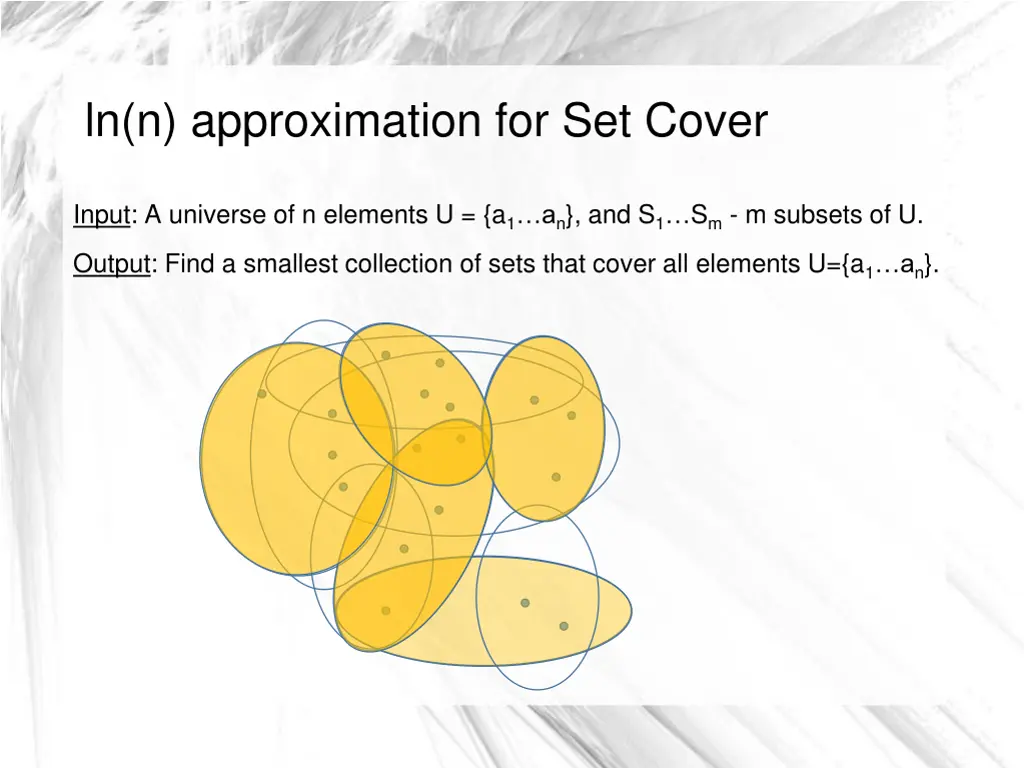

ln(n) approximation for Set Cover Input: A universe of n elements U = {a1 an}, and S1 Sm - m subsets of U. Output: Find a smallest collection of sets that cover all elements U={a1 an}.

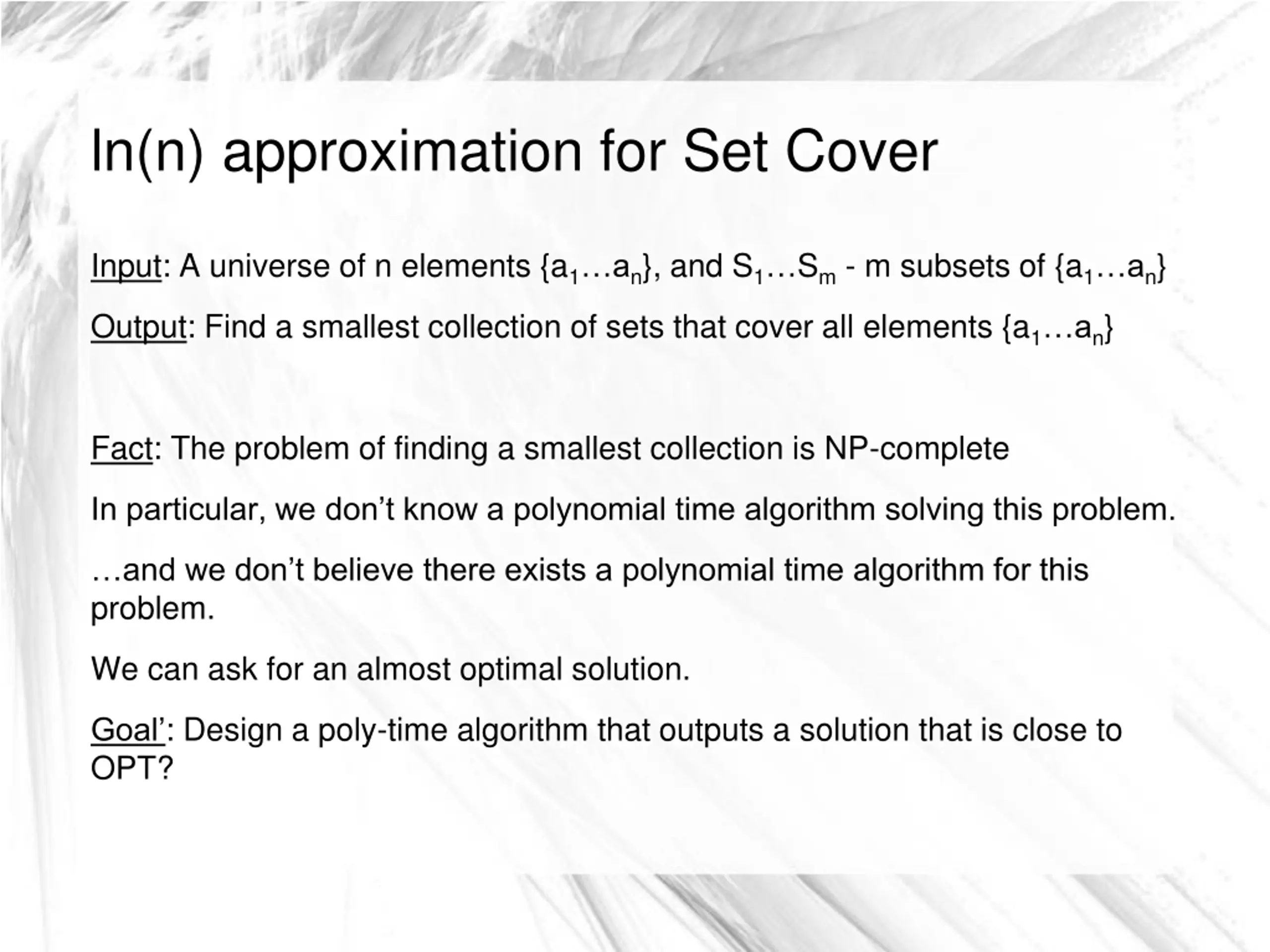

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm - m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} Fact: The problem of finding a smallest collection is NP-complete In particular, we don t know a polynomial time algorithm solving this problem. and we don t believe there exists a polynomial time algorithm for this problem. We can ask for an almost optimal solution. Goal : Design a poly-time algorithm that outputs a solution that is close to OPT?

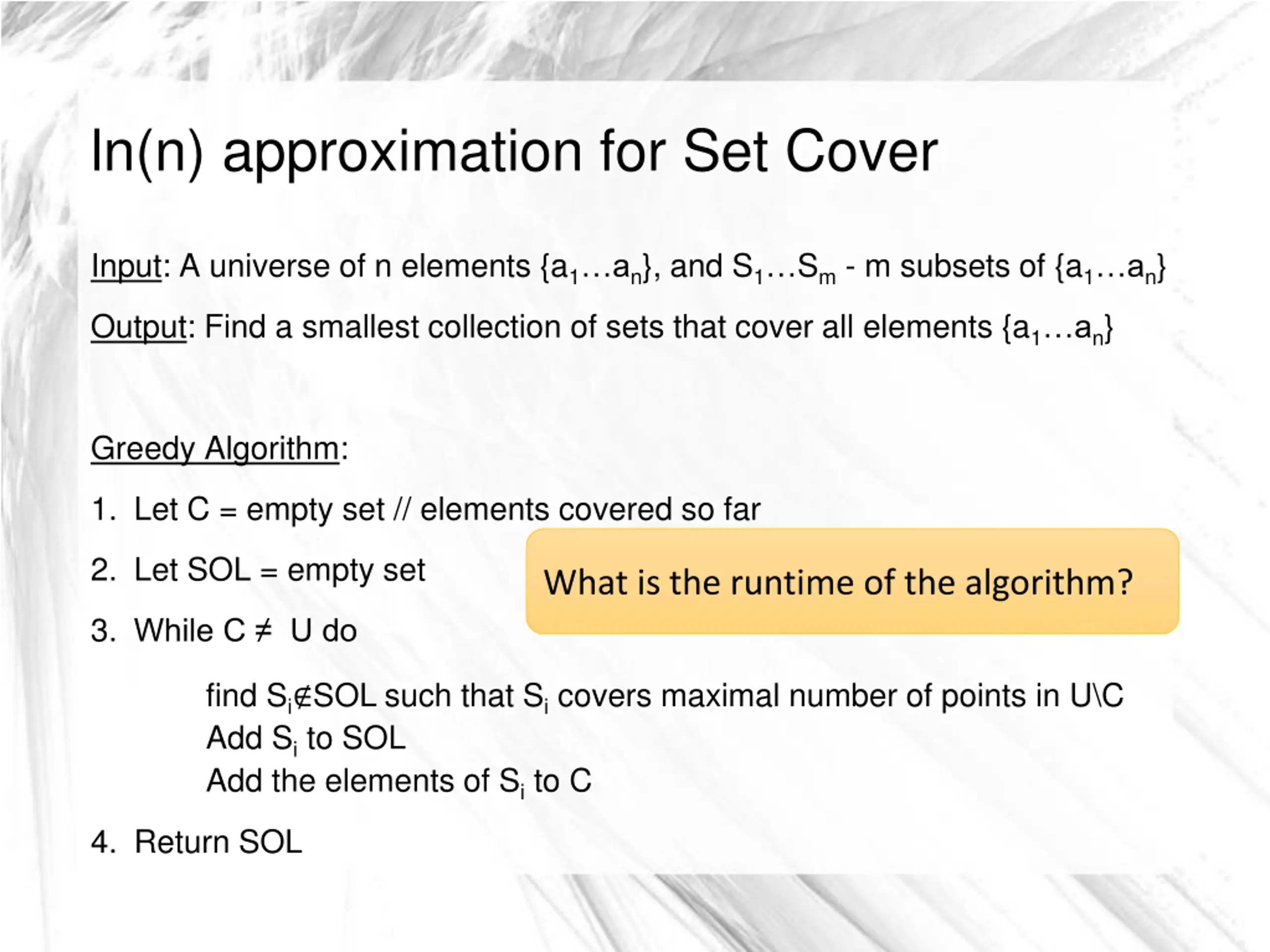

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm - m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} Greedy Algorithm: 1. Let C = empty set // elements covered so far 2. Let SOL = empty set What is the runtime of the algorithm? 3. While C U do find Si SOL such that Si covers maximal number of points in U\C Add Si to SOL Add the elements of Si to C 4. Return SOL

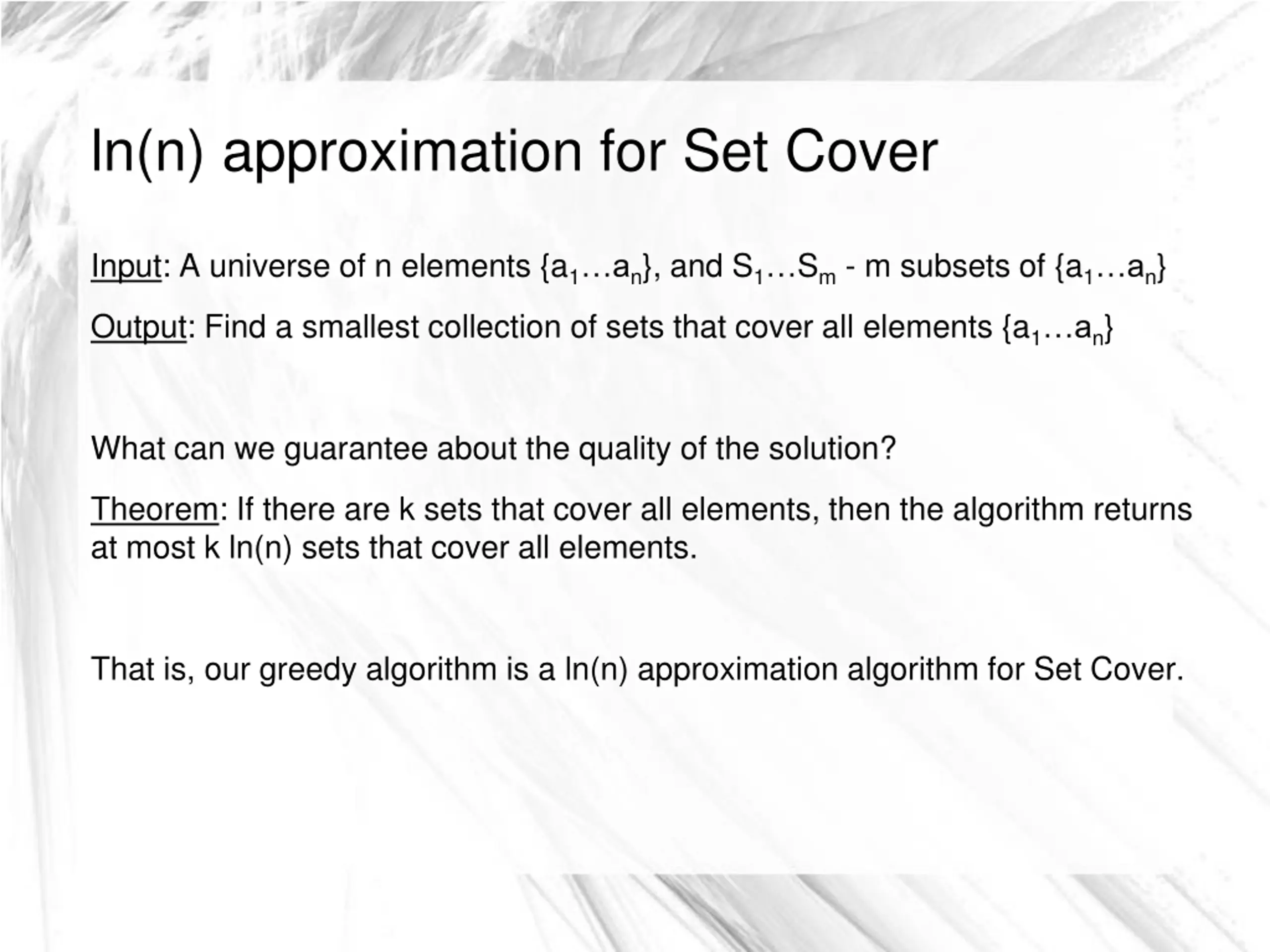

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm - m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} What can we guarantee about the quality of the solution? Theorem: If there are k sets that cover all elements, then the algorithm returns at most k ln(n) sets that cover all elements. That is, our greedy algorithm is a ln(n) approximation algorithm for Set Cover.

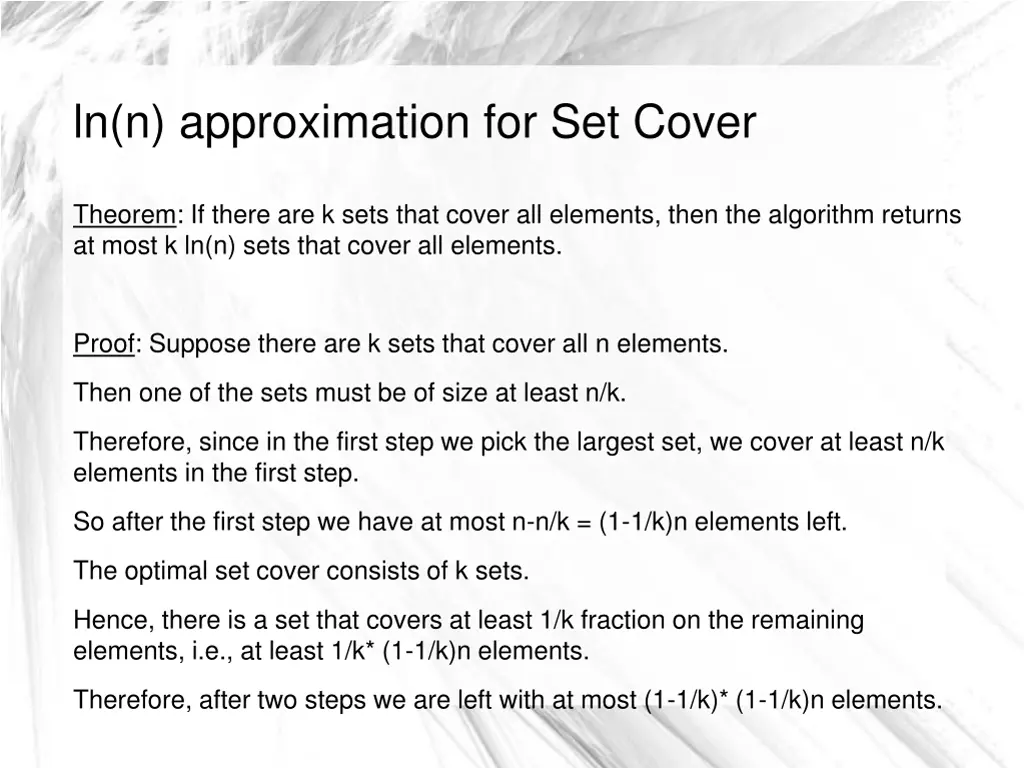

ln(n) approximation for Set Cover Theorem: If there are k sets that cover all elements, then the algorithm returns at most k ln(n) sets that cover all elements. Proof: Suppose there are k sets that cover all n elements. Then one of the sets must be of size at least n/k. Therefore, since in the first step we pick the largest set, we cover at least n/k elements in the first step. So after the first step we have at most n-n/k = (1-1/k)n elements left. The optimal set cover consists of k sets. Hence, there is a set that covers at least 1/k fraction on the remaining elements, i.e., at least 1/k* (1-1/k)n elements. Therefore, after two steps we are left with at most (1-1/k)* (1-1/k)n elements.

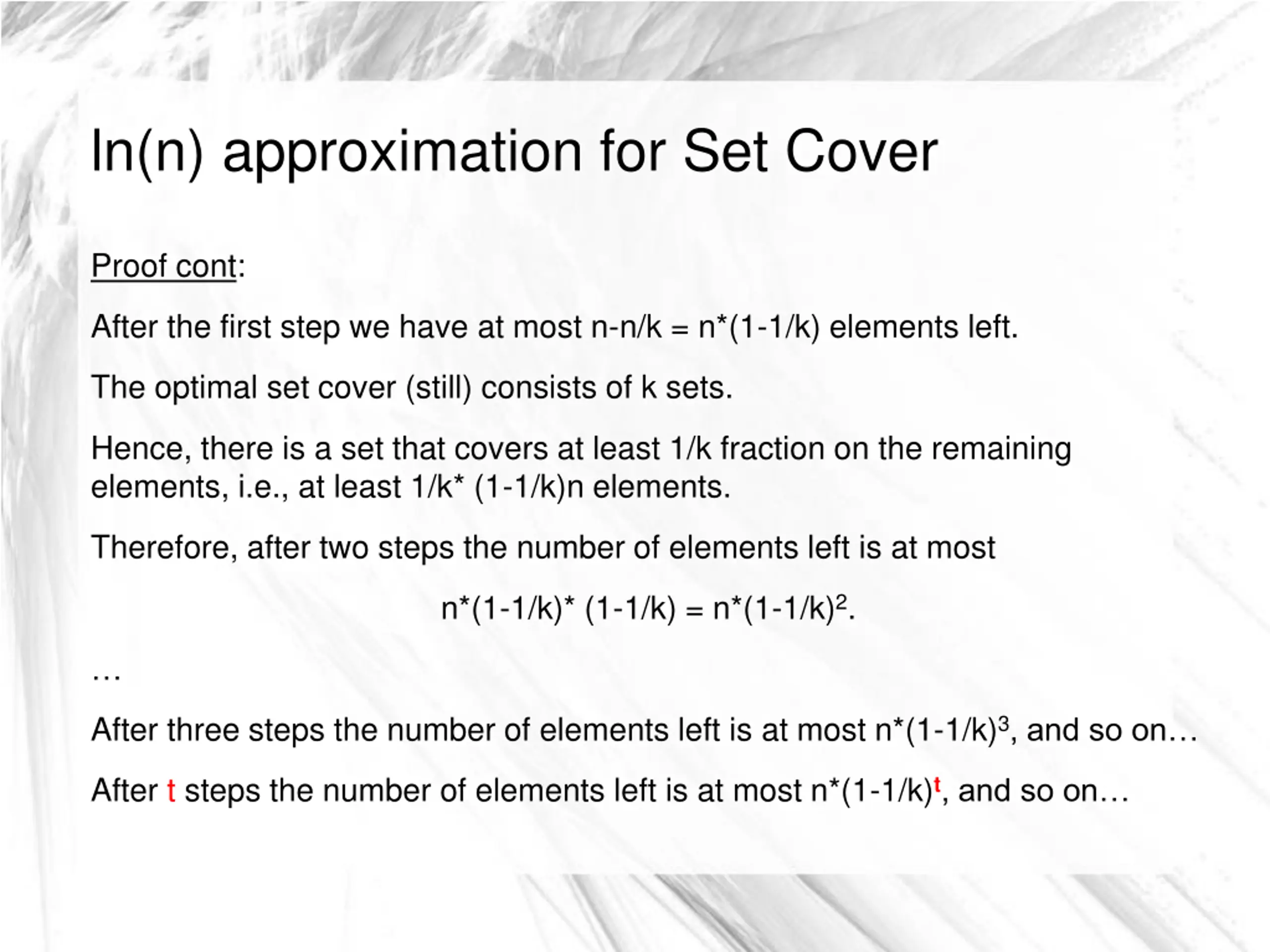

ln(n) approximation for Set Cover Proof cont: After the first step we have at most n-n/k = n*(1-1/k) elements left. The optimal set cover (still) consists of k sets. Hence, there is a set that covers at least 1/k fraction on the remaining elements, i.e., at least 1/k* (1-1/k)n elements. Therefore, after two steps the number of elements left is at most n*(1-1/k)* (1-1/k) = n*(1-1/k)2. After three steps the number of elements left is at most n*(1-1/k)3, and so on After t steps the number of elements left is at most n*(1-1/k)t, and so on

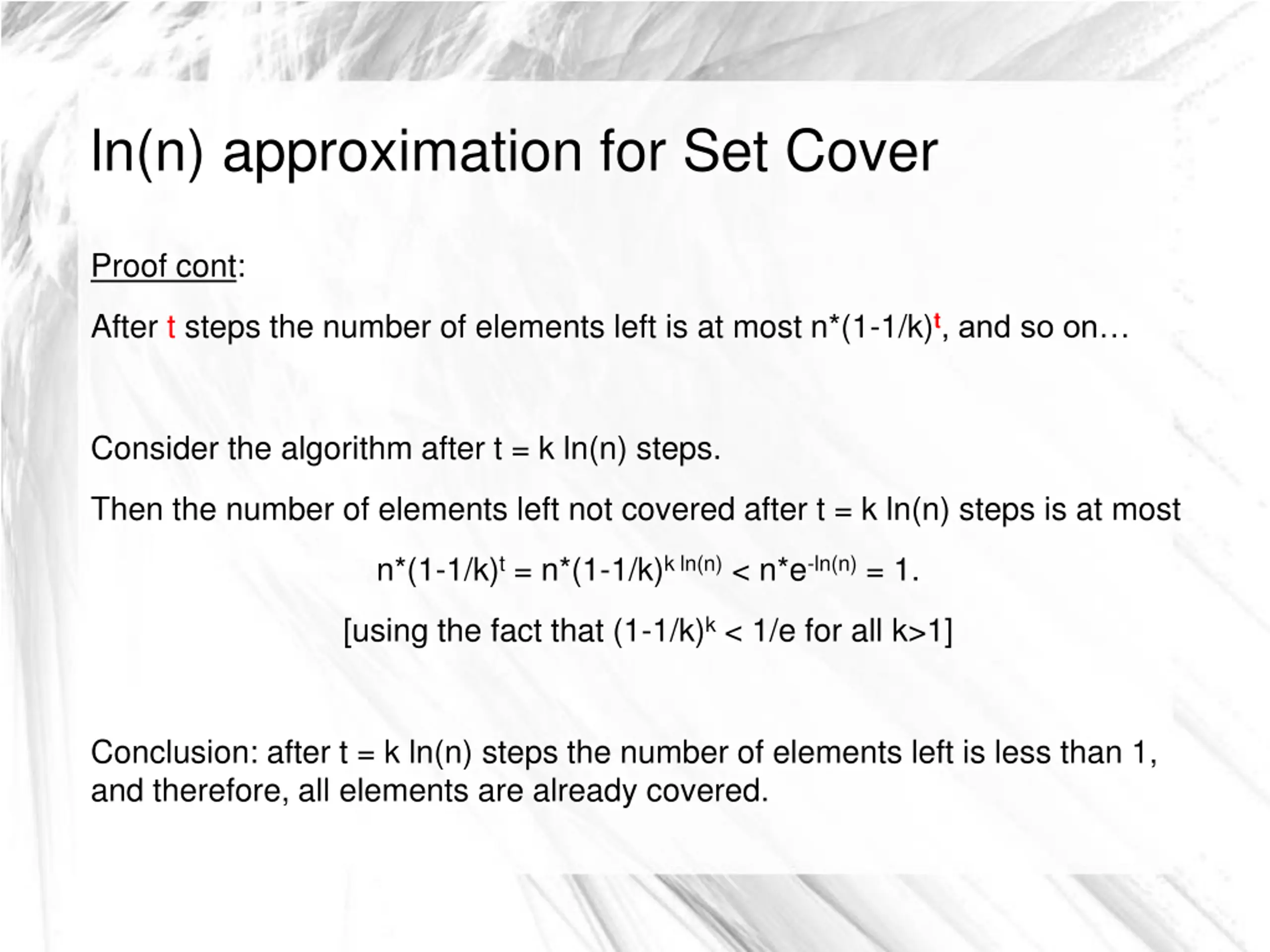

ln(n) approximation for Set Cover Proof cont: After t steps the number of elements left is at most n*(1-1/k)t, and so on Consider the algorithm after t = k ln(n) steps. Then the number of elements left not covered after t = k ln(n) steps is at most n*(1-1/k)t = n*(1-1/k)k ln(n) < n*e-ln(n) = 1. [using the fact that (1-1/k)k < 1/e for all k>1] Conclusion: after t = k ln(n) steps the number of elements left is less than 1, and therefore, all elements are already covered.

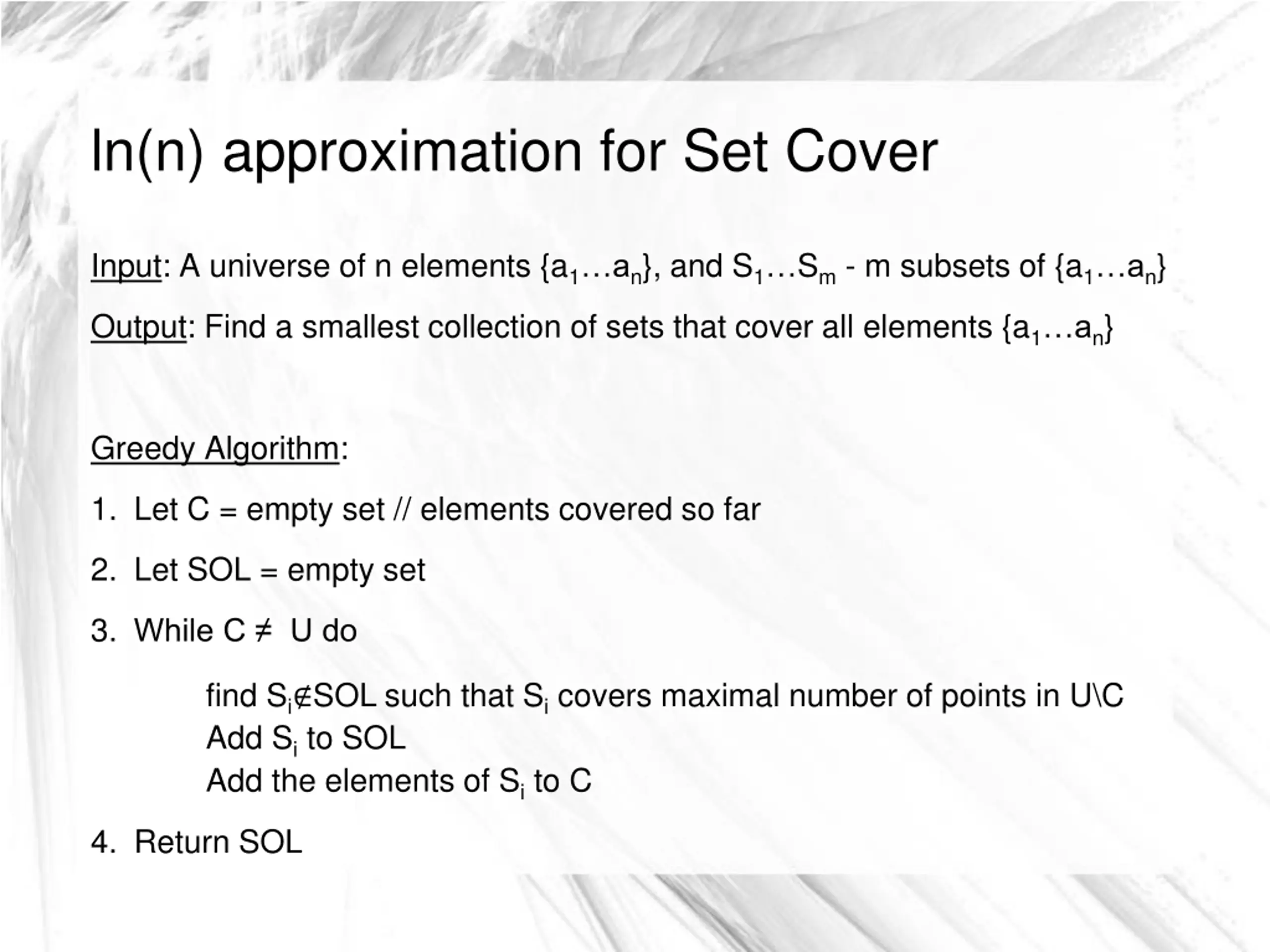

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm - m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} Greedy Algorithm: 1. Let C = empty set // elements covered so far 2. Let SOL = empty set 3. While C U do find Si SOL such that Si covers maximal number of points in U\C Add Si to SOL Add the elements of Si to C 4. Return SOL

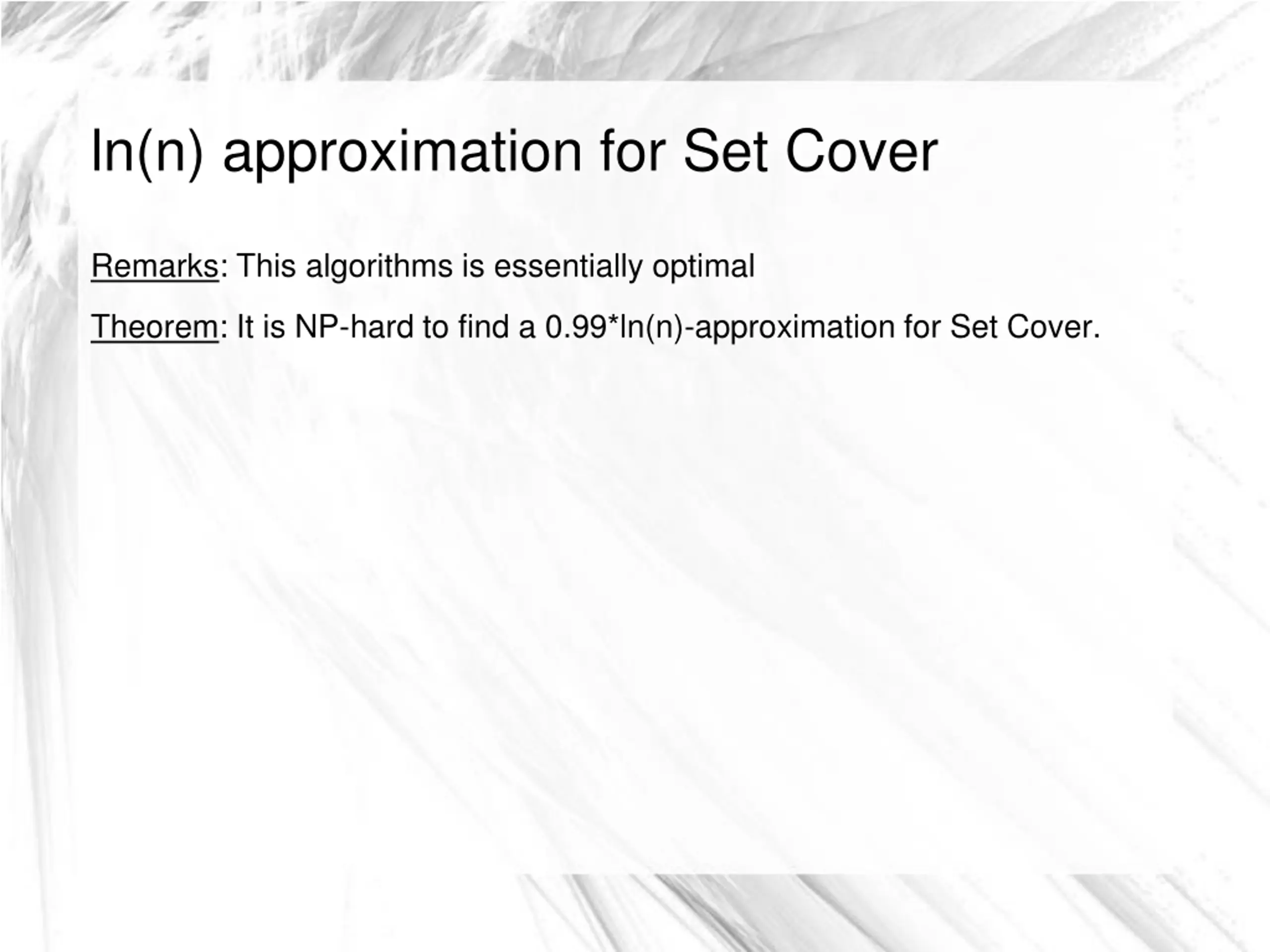

ln(n) approximation for Set Cover Remarks: This algorithms is essentially optimal Theorem: It is NP-hard to find a 0.99*ln(n)-approximation for Set Cover.

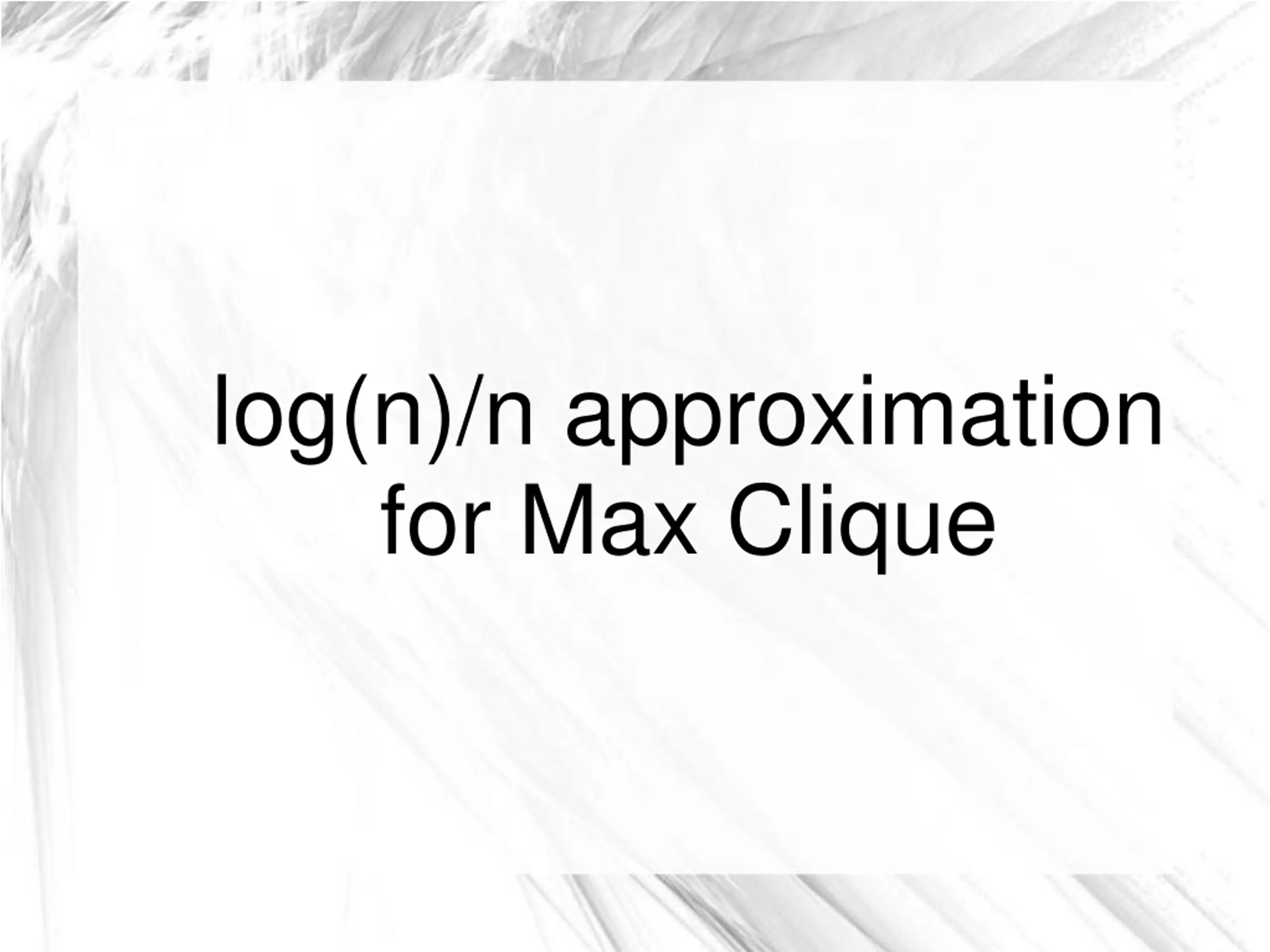

log(n)/n approximation for Max Clique

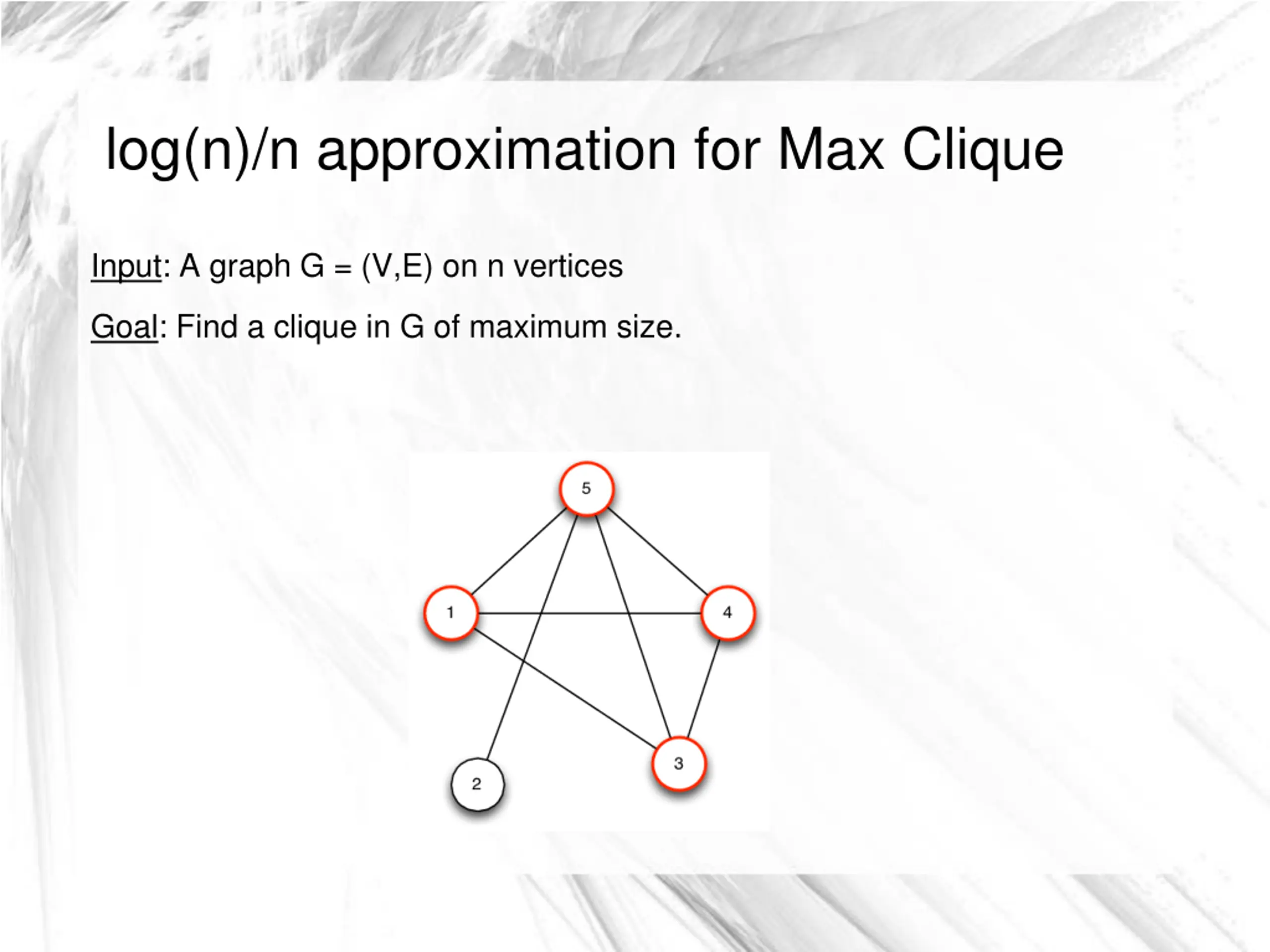

log(n)/n approximation for Max Clique Input: A graph G = (V,E) on n vertices Goal: Find a clique in G of maximum size.

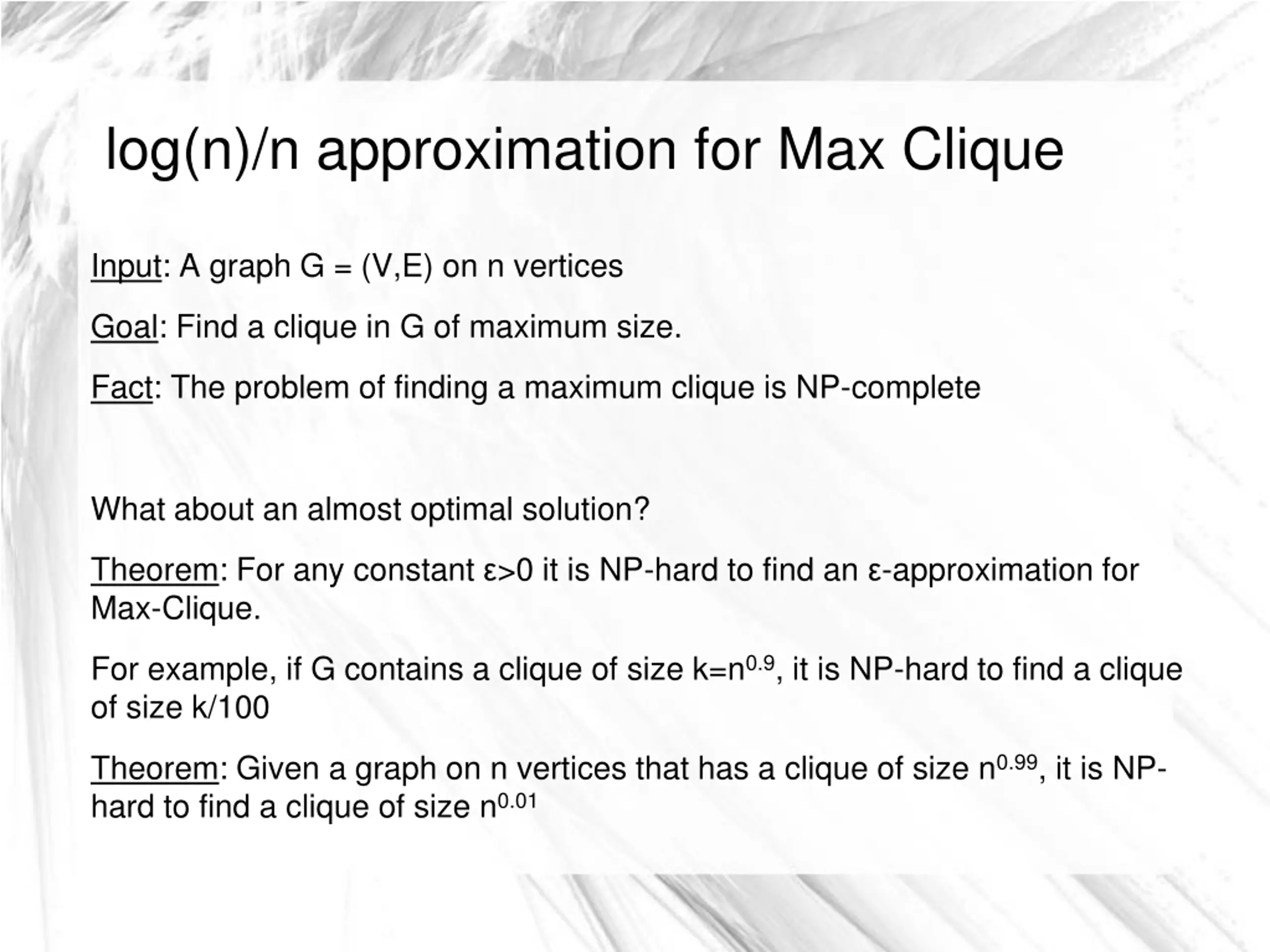

log(n)/n approximation for Max Clique Input: A graph G = (V,E) on n vertices Goal: Find a clique in G of maximum size. Fact: The problem of finding a maximum clique is NP-complete What about an almost optimal solution? Theorem: For any constant >0 it is NP-hard to find an -approximation for Max-Clique. For example, if G contains a clique of size k=n0.9, it is NP-hard to find a clique of size k/100 Theorem: Given a graph on n vertices that has a clique of size n0.99, it is NP- hard to find a clique of size n0.01

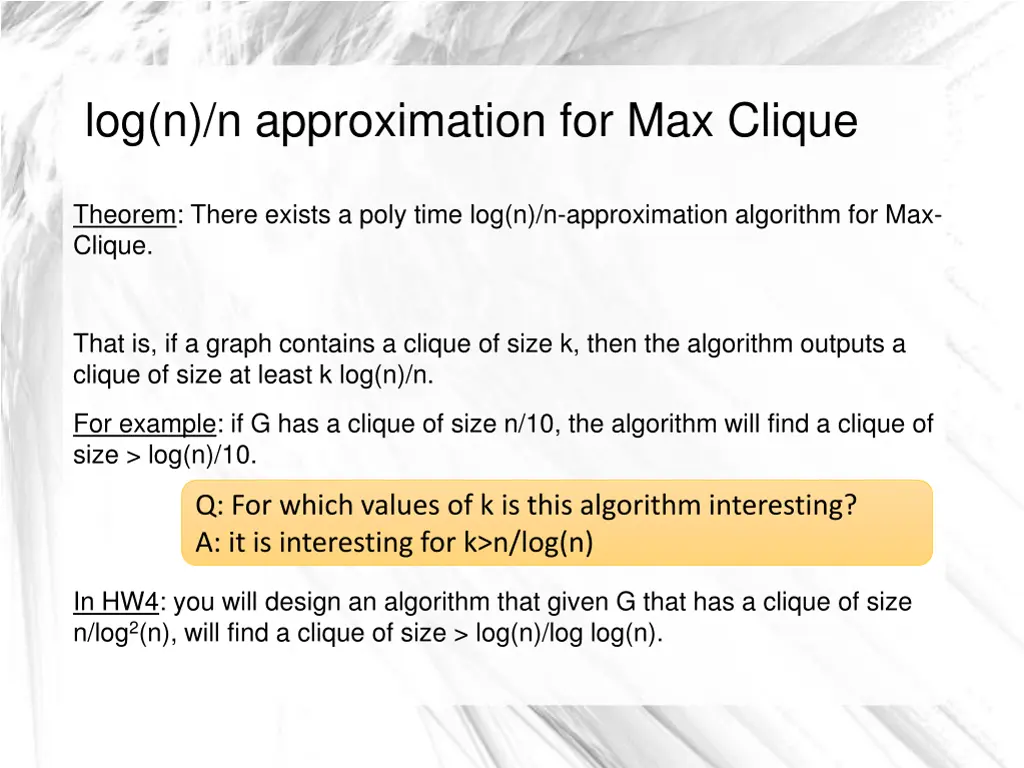

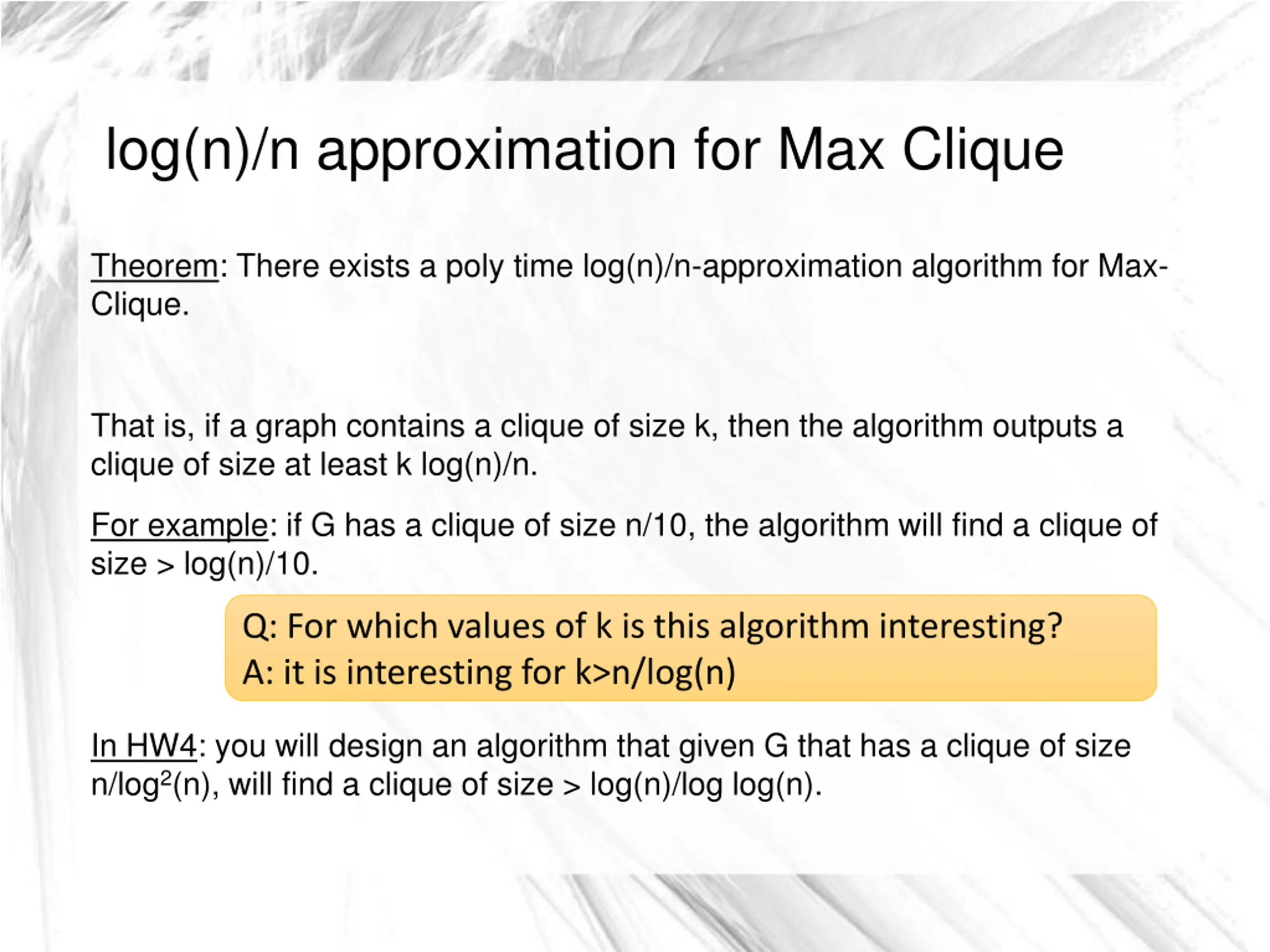

log(n)/n approximation for Max Clique Theorem: There exists a poly time log(n)/n-approximation algorithm for Max- Clique. That is, if a graph contains a clique of size k, then the algorithm outputs a clique of size at least k log(n)/n. For example: if G has a clique of size n/10, the algorithm will find a clique of size > log(n)/10. Q: For which values of k is this algorithm interesting? A: it is interesting for k>n/log(n) In HW4: you will design an algorithm that given G that has a clique of size n/log2(n), will find a clique of size > log(n)/log log(n).

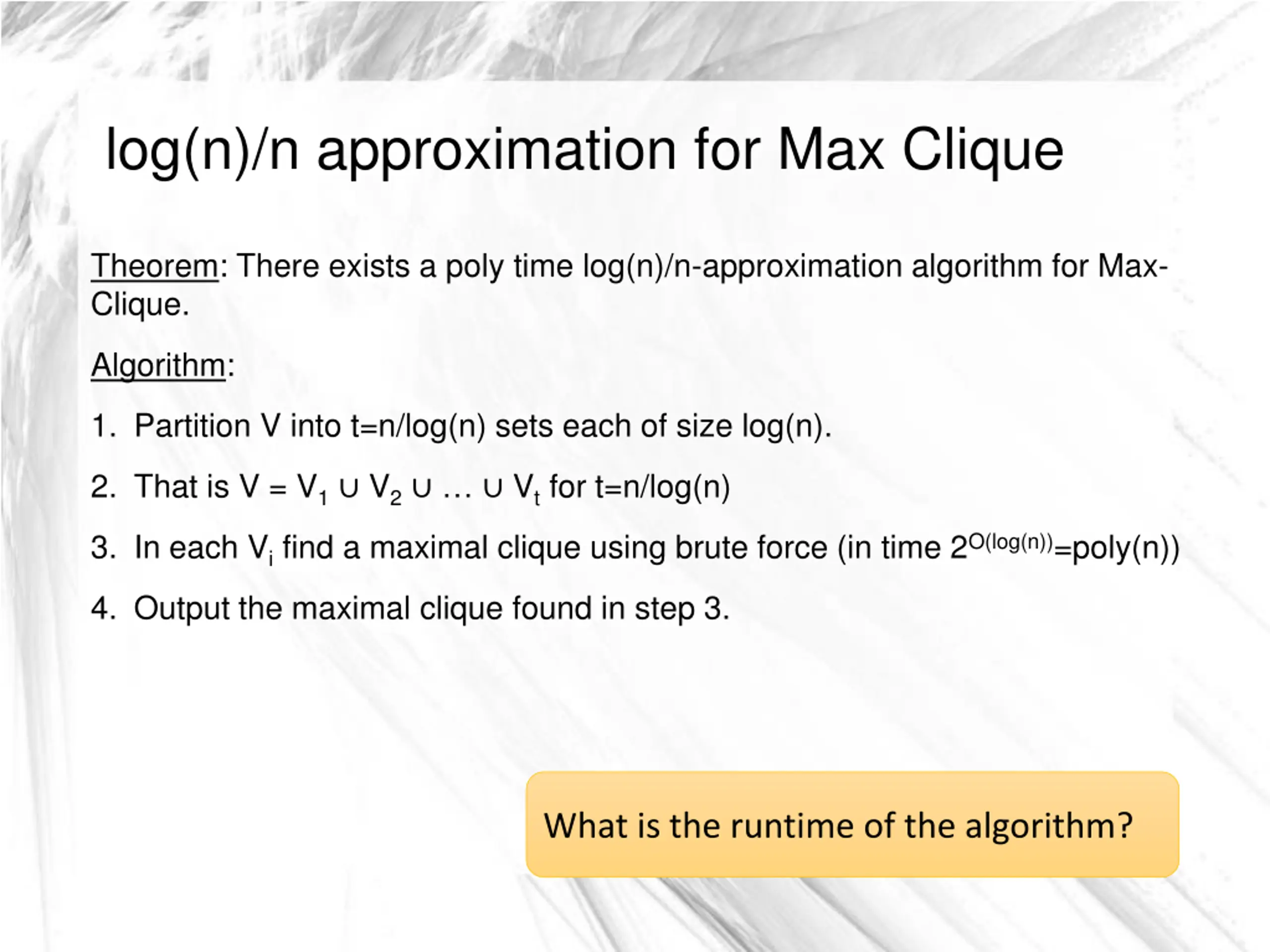

log(n)/n approximation for Max Clique Theorem: There exists a poly time log(n)/n-approximation algorithm for Max- Clique. Algorithm: 1. Partition V into t=n/log(n) sets each of size log(n). 2. That is V = V1 V2 Vt for t=n/log(n) 3. In each Vi find a maximal clique using brute force (in time 2O(log(n))=poly(n)) 4. Output the maximal clique found in step 3. What is the runtime of the algorithm?

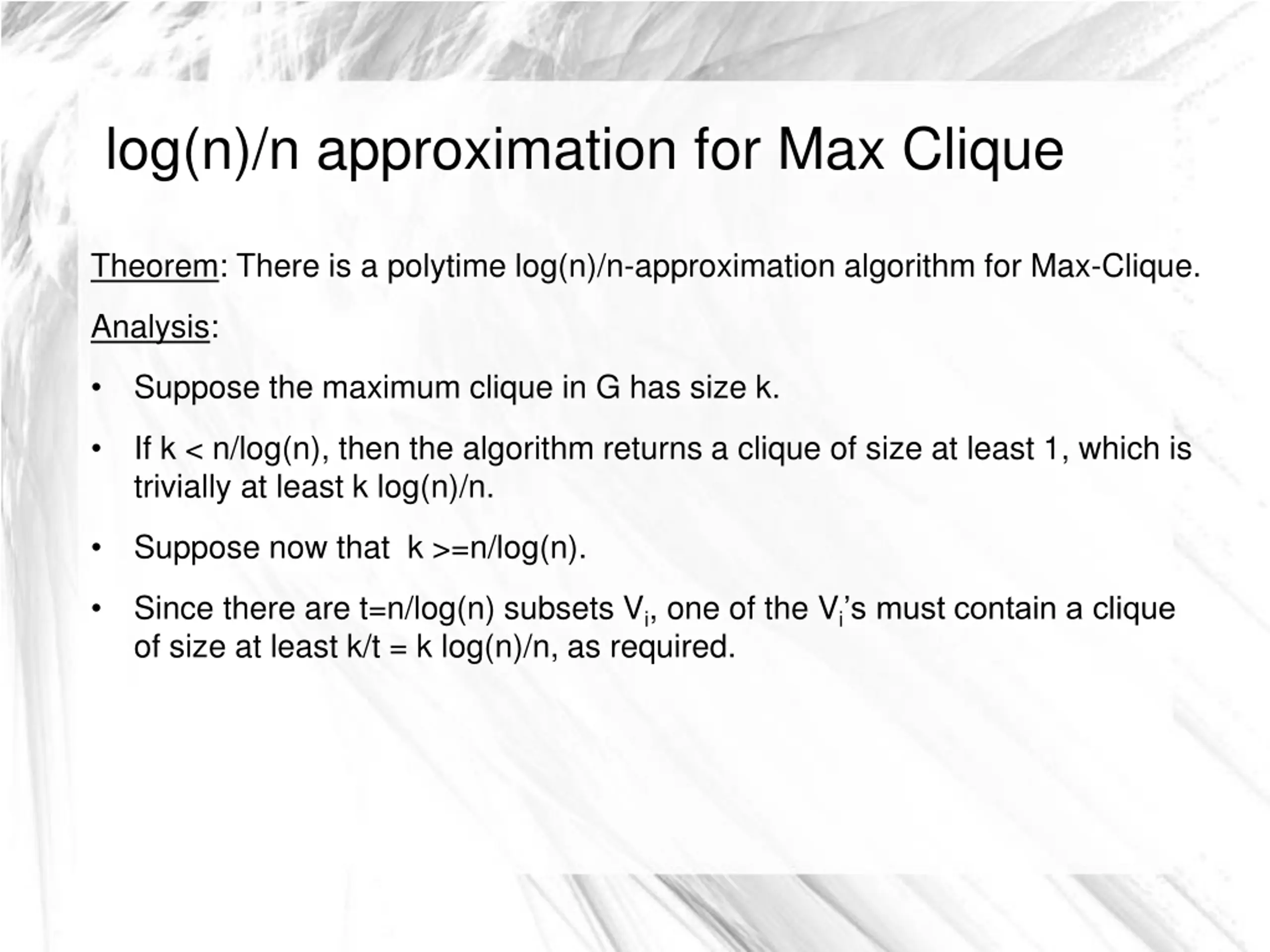

log(n)/n approximation for Max Clique Theorem: There is a polytime log(n)/n-approximation algorithm for Max-Clique. Analysis: Suppose the maximum clique in G has size k. If k < n/log(n), then the algorithm returns a clique of size at least 1, which is trivially at least k log(n)/n. Suppose now that k >=n/log(n). Since there are t=n/log(n) subsets Vi, one of the Vi s must contain a clique of size at least k/t = k log(n)/n, as required.

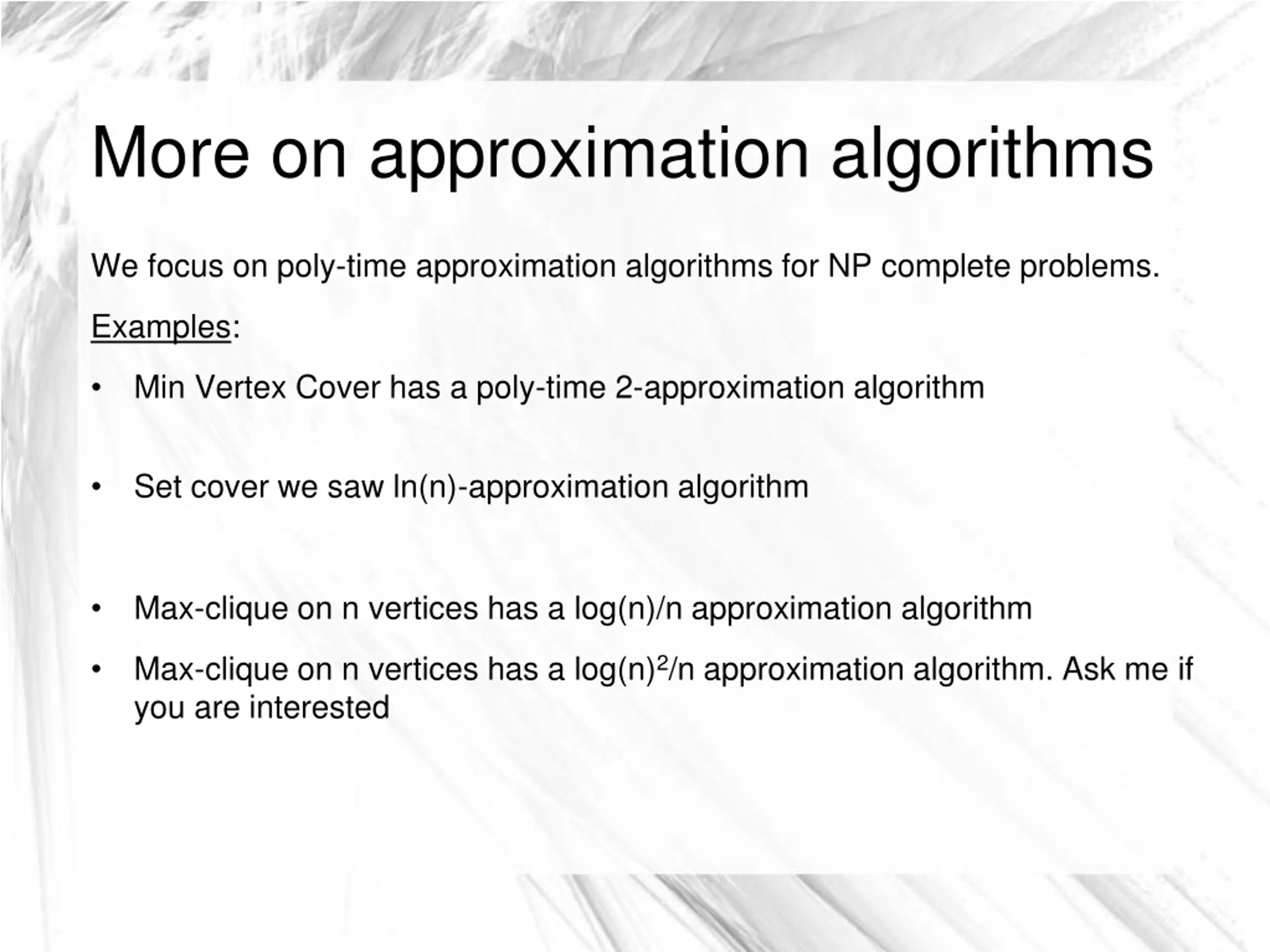

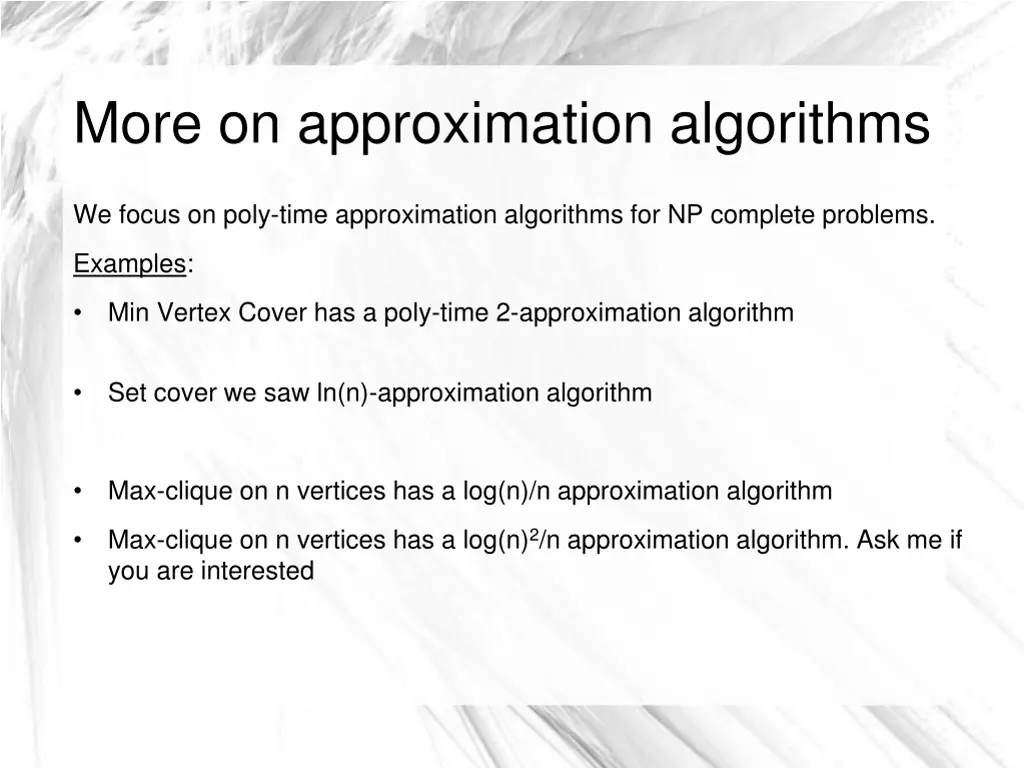

More on approximation algorithms We focus on poly-time approximation algorithms for NP complete problems. Examples: Min Vertex Cover has a poly-time 2-approximation algorithm Set cover we saw ln(n)-approximation algorithm Max-clique on n vertices has a log(n)/n approximation algorithm Max-clique on n vertices has a log(n)2/n approximation algorithm. Ask me if you are interested

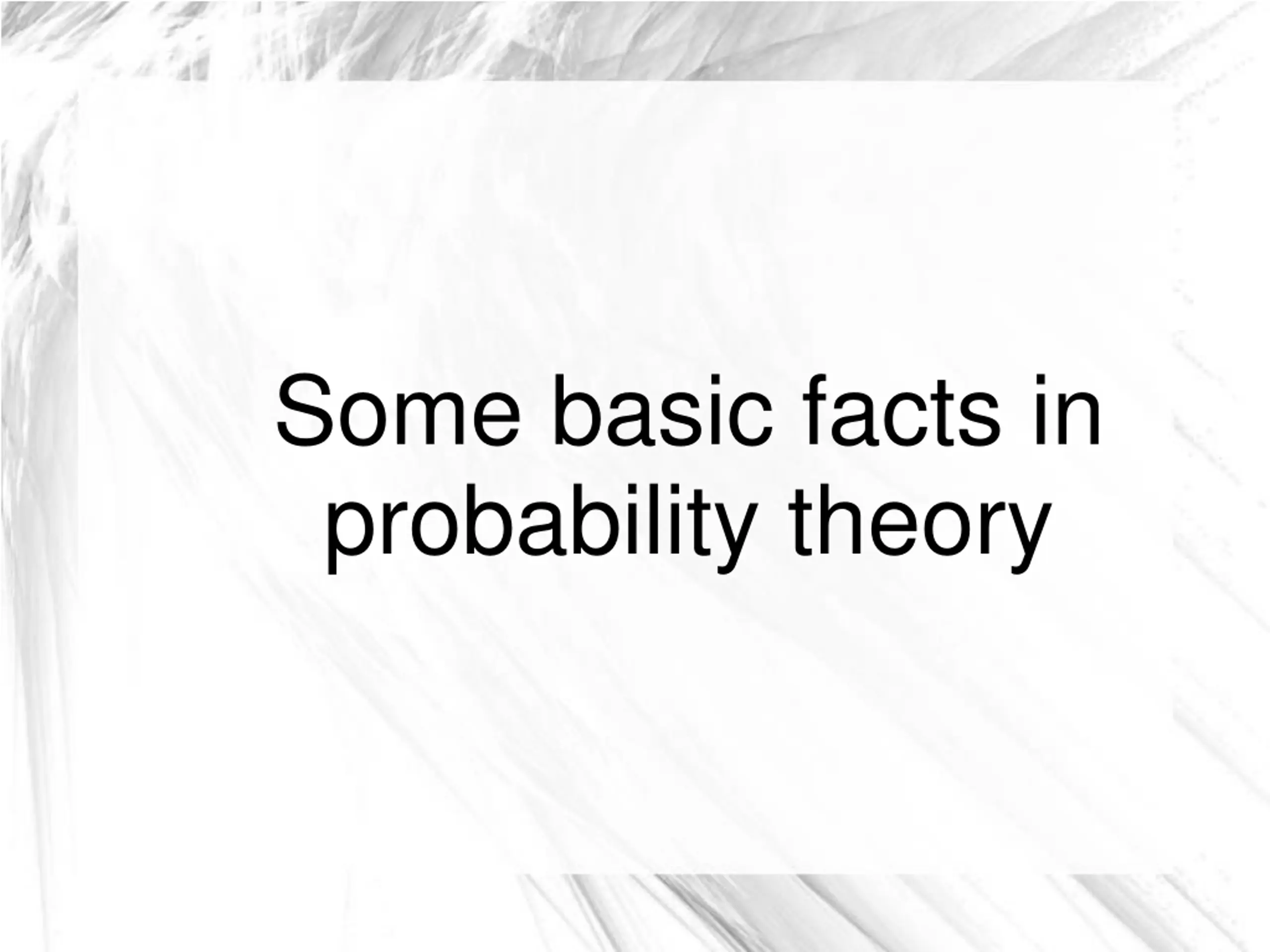

Some basic facts in probability theory

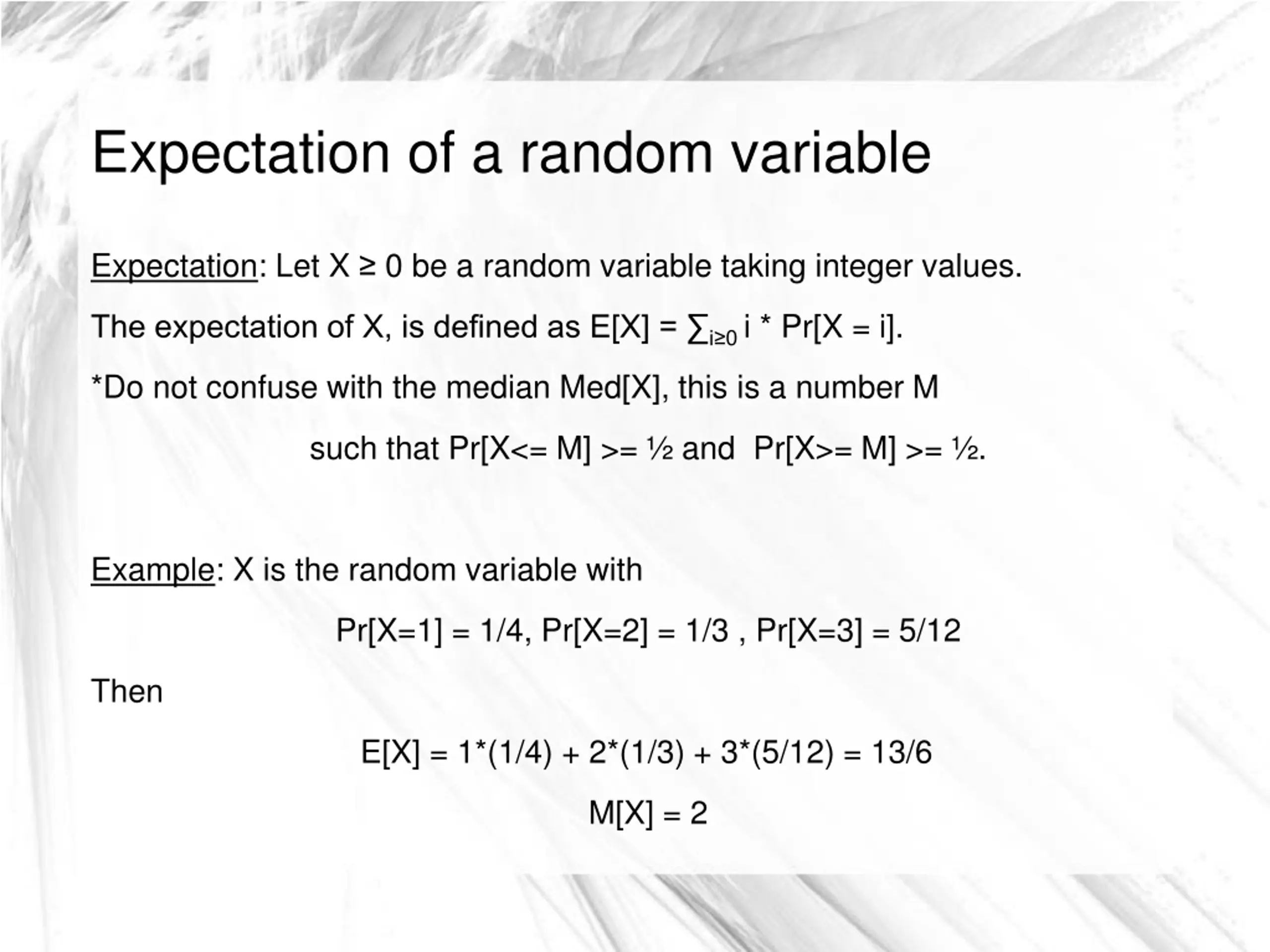

Expectation of a random variable Expectation: Let X 0 be a random variable taking integer values. The expectation of X, is defined as E[X] = i 0 i * Pr[X = i]. *Do not confuse with the median Med[X], this is a number M such that Pr[X<= M] >= and Pr[X>= M] >= . Example: X is the random variable with Pr[X=1] = 1/4, Pr[X=2] = 1/3 , Pr[X=3] = 5/12 Then E[X] = 1*(1/4) + 2*(1/3) + 3*(5/12) = 13/6 M[X] = 2

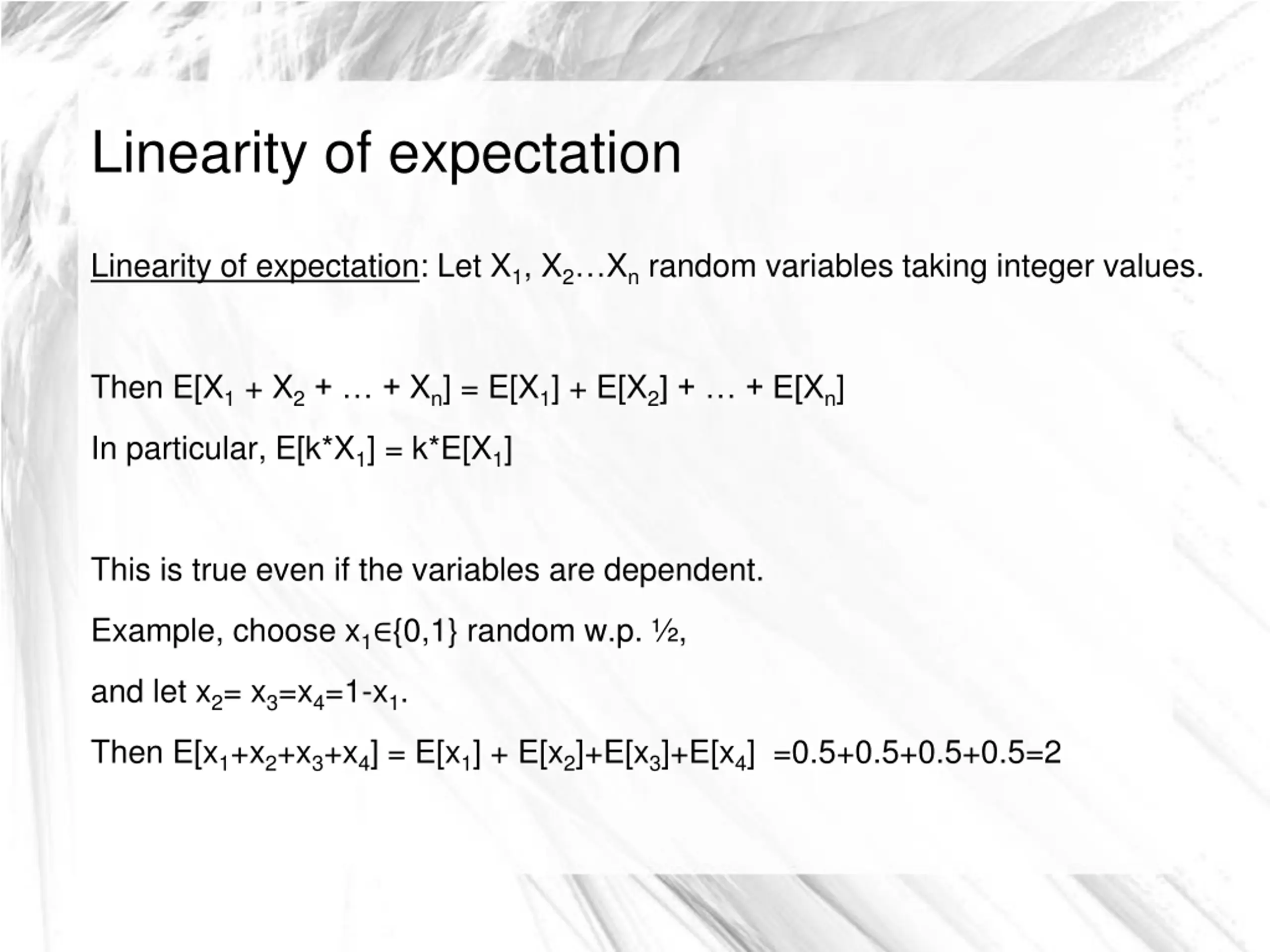

Linearity of expectation Linearity of expectation: Let X1, X2 Xn random variables taking integer values. Then E[X1 + X2+ + Xn] = E[X1] + E[X2] + + E[Xn] In particular, E[k*X1] = k*E[X1] This is true even if the variables are dependent. Example, choose x1 {0,1} random w.p. , and let x2= x3=x4=1-x1. Then E[x1+x2+x3+x4] = E[x1] + E[x2]+E[x3]+E[x4] =0.5+0.5+0.5+0.5=2

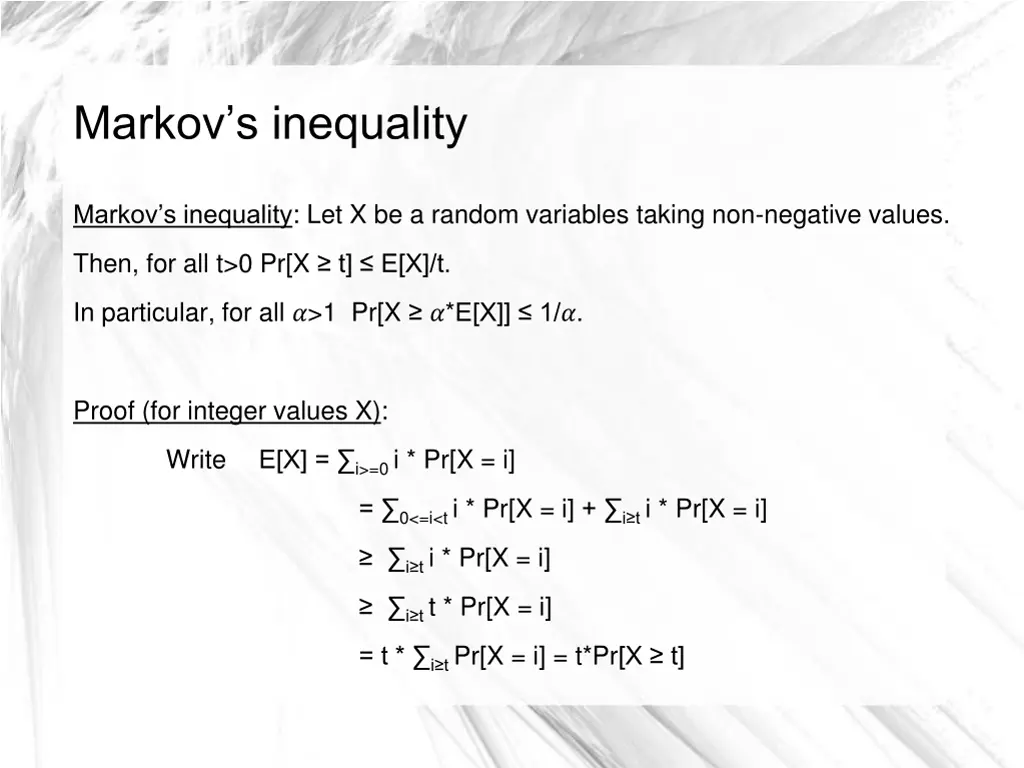

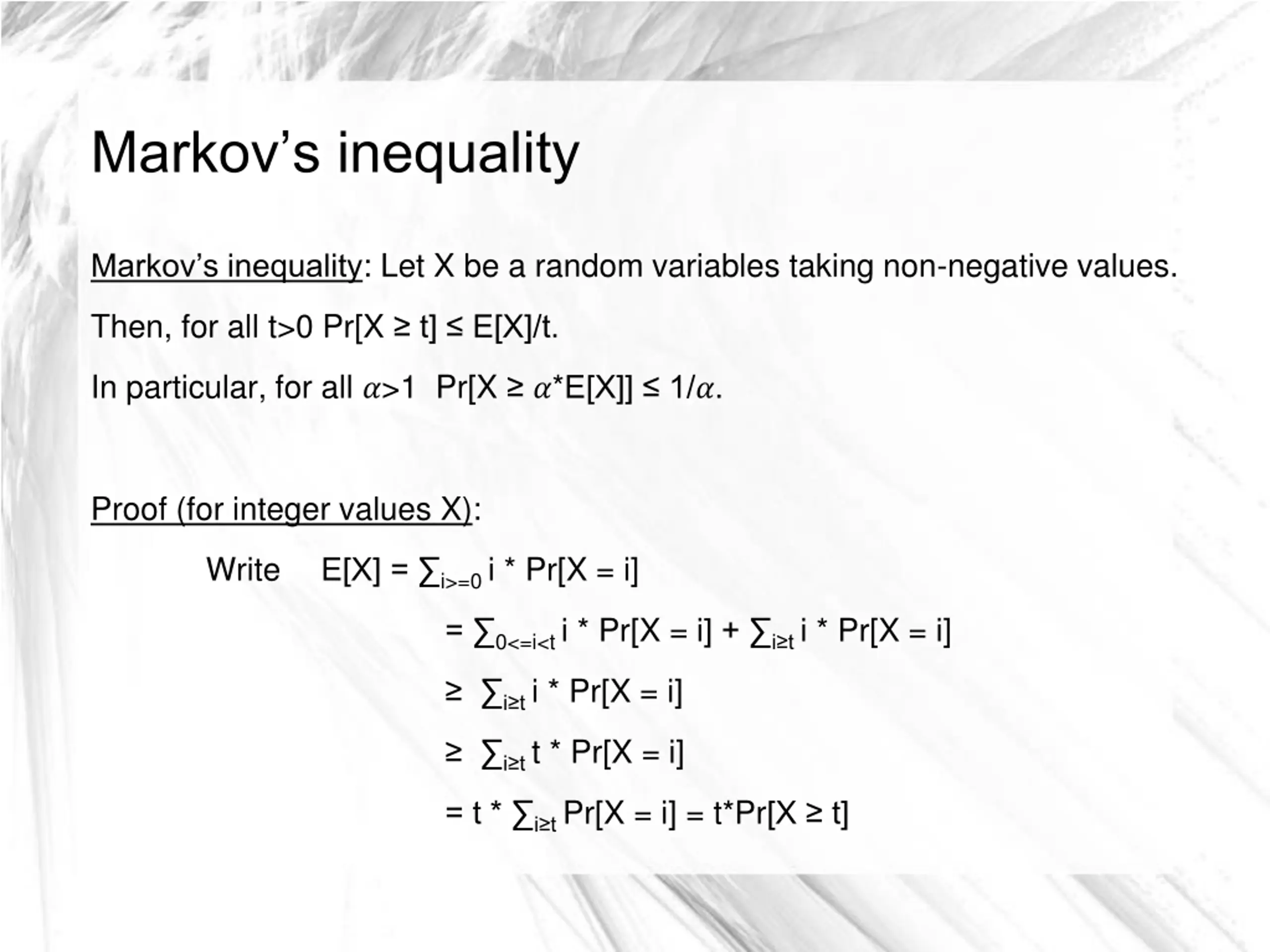

Markovs inequality Markov s inequality: Let X be a random variables taking non-negative values. Then, for all t>0 Pr[X t] E[X]/t. In particular, for all ?>1 Pr[X ?*E[X]] 1/?. Proof (for integer values X): Write E[X] = i>=0 i * Pr[X = i] = 0<=i<t i * Pr[X = i] + i ti * Pr[X = i] i ti * Pr[X = i] i tt * Pr[X = i] = t * i tPr[X = i] = t*Pr[X t]

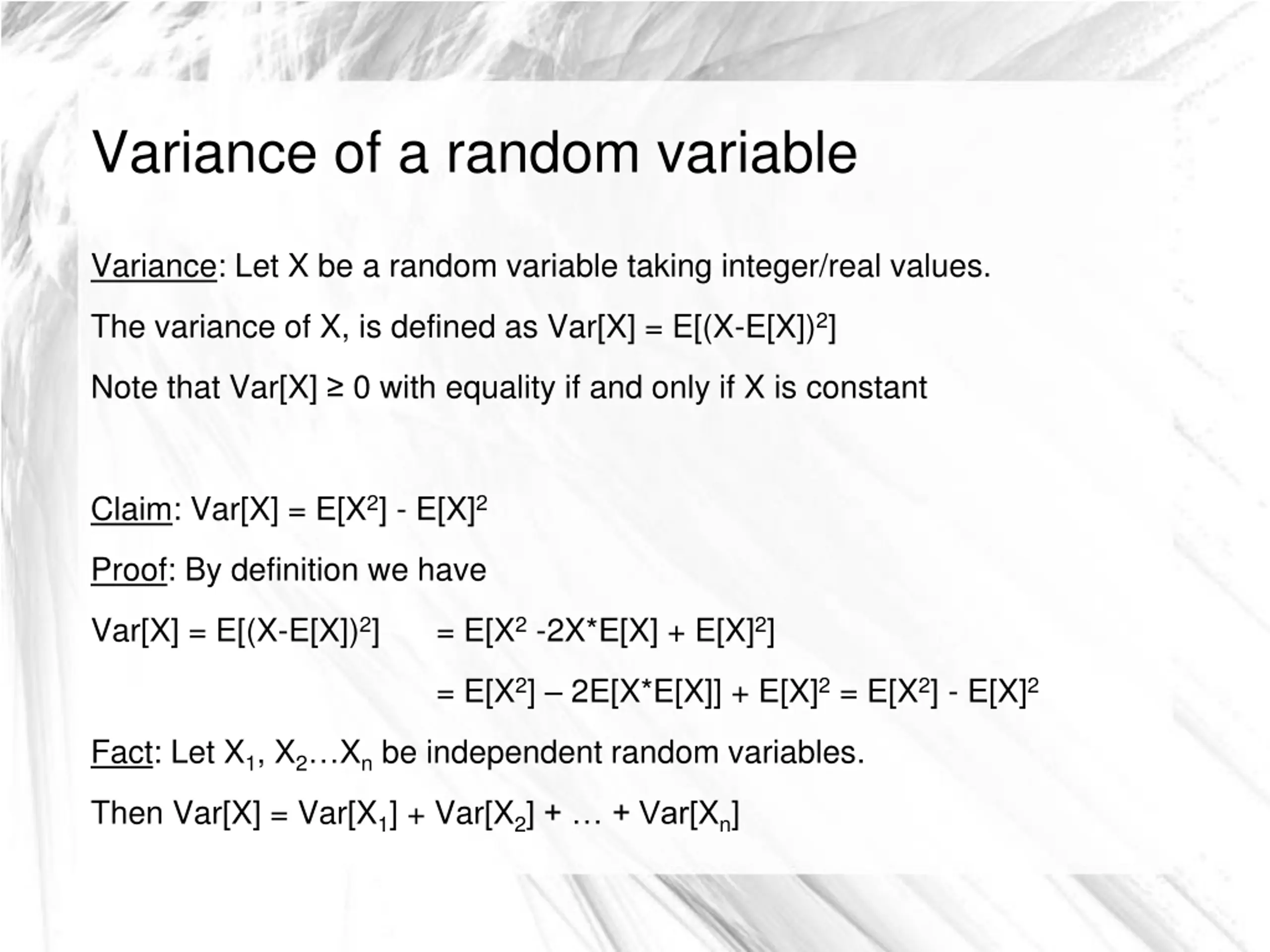

Variance of a random variable Variance: Let X be a random variable taking integer/real values. The variance of X, is defined as Var[X] = E[(X-E[X])2] Note that Var[X] 0 with equality if and only if X is constant Claim: Var[X] = E[X2] - E[X]2 Proof: By definition we have Var[X] = E[(X-E[X])2] = E[X2 -2X*E[X] + E[X]2] = E[X2] 2E[X*E[X]] + E[X]2 = E[X2] - E[X]2 Fact: Let X1, X2 Xn be independent random variables. Then Var[X] = Var[X1] + Var[X2] + + Var[Xn]

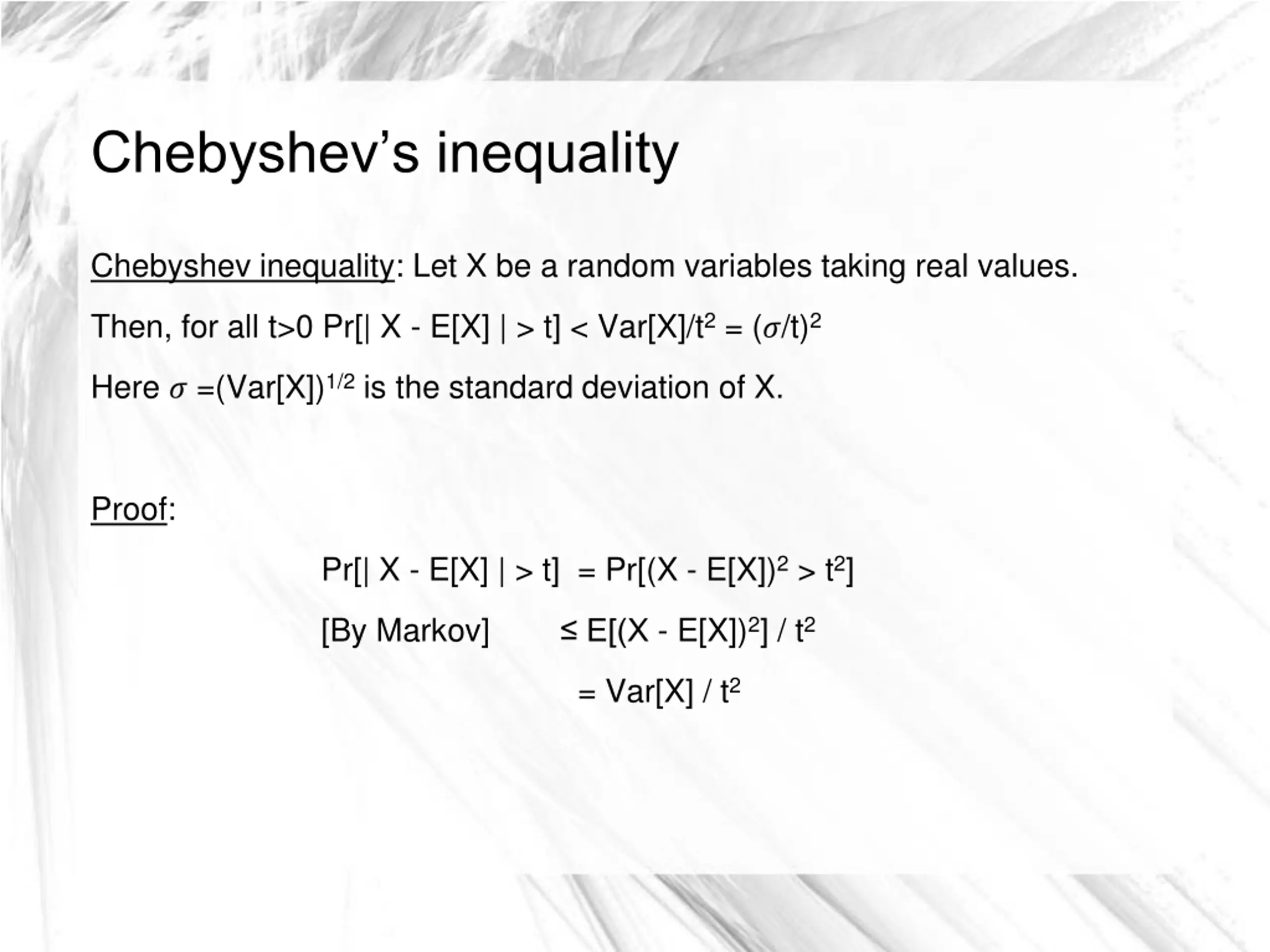

Chebyshevs inequality Chebyshev inequality: Let X be a random variables taking real values. Then, for all t>0 Pr[| X - E[X] | > t] < Var[X]/t2 = (?/t)2 Here ? =(Var[X])1/2 is the standard deviation of X. Proof: Pr[| X - E[X] | > t] = Pr[(X - E[X])2 > t2] [By Markov] E[(X - E[X])2] / t2 = Var[X] / t2

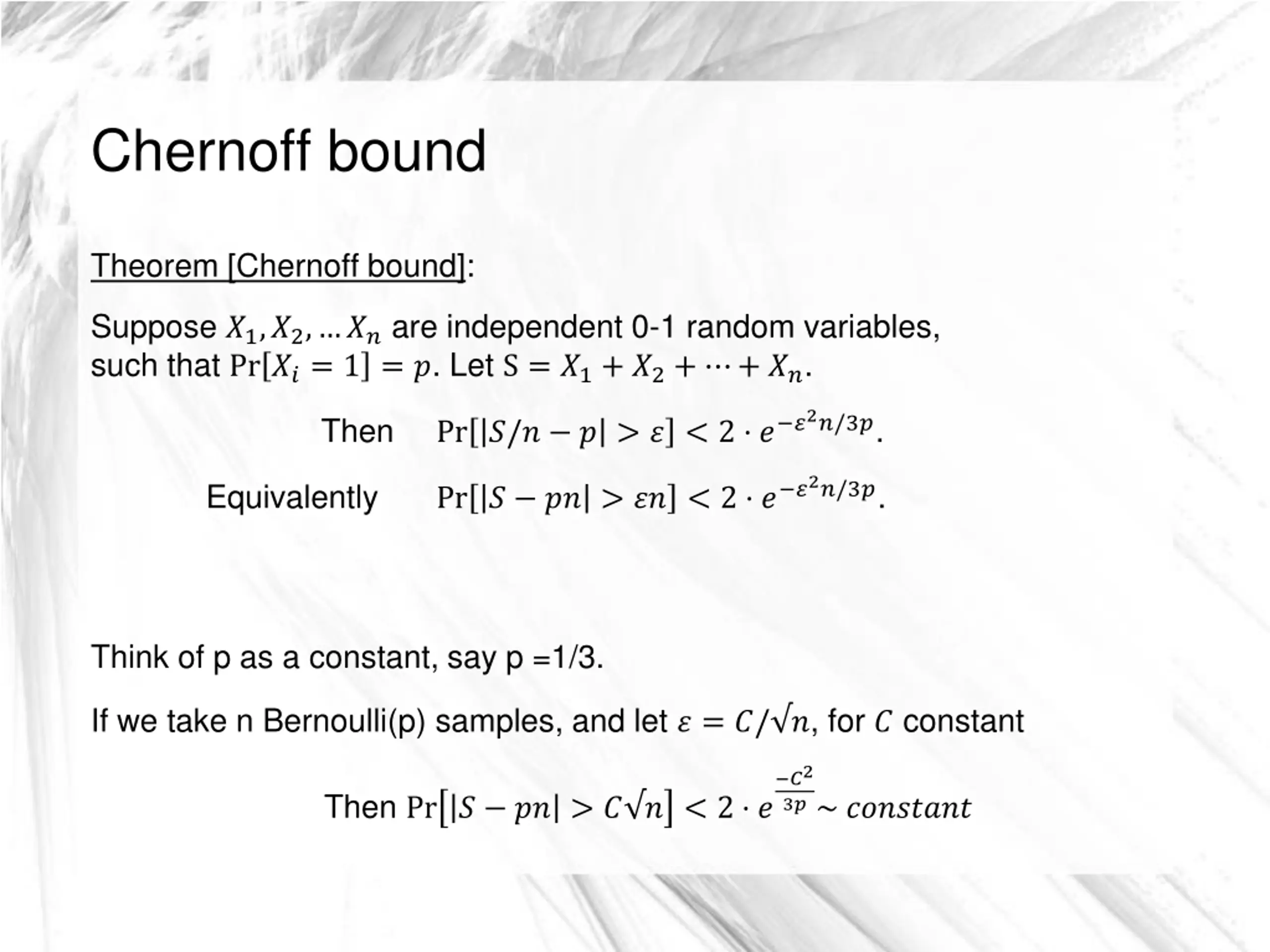

Chernoff bound Theorem [Chernoff bound]: Suppose ?1,?2, ?? are independent 0-1 random variables, such that Pr ??= 1 = ?. Let S = ?1+ ?2+ + ??. Pr ?/? ? > ? < 2 ? ?2?/3?. Then Pr ? ?? > ?? < 2 ? ?2?/3?. Equivalently Think of p as a constant, say p =1/3. If we take n Bernoulli(p) samples, and let ? = ?/ ?, for ? constant ?2 3?~ ???????? Then Pr ? ?? > ? ? < 2 ?
Questions? Comments?
