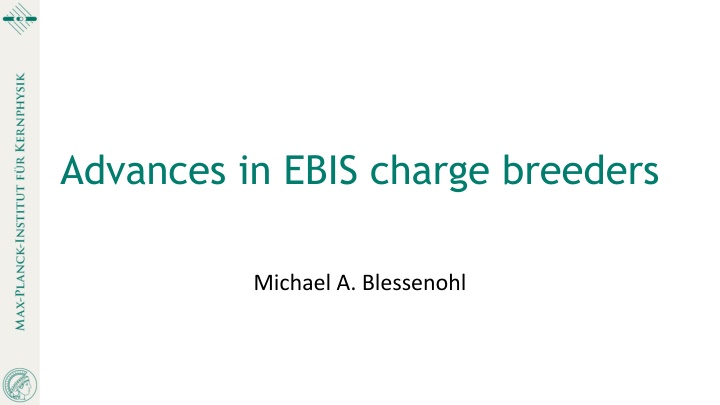

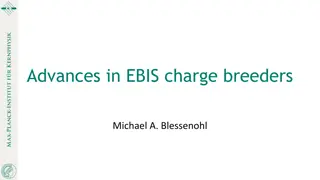

  1. Advances in EBIS charge breeders Michael A. Blessenohl

  2. ARIEL Extension Advanced Rare IsotopE Laboratory New facility to expand capabilities of TRIUMF E-linac (photo-fission) Isotope distribution Neutron heavy isotopes More controlled Image source: TRIUMF Lab 21 August 2014 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 1

  3. CANREB Advanced Rare IsotopE Laboratory CANadian Rare-isotope facility with Electron Beam ion source Charge breeder and high resolution mass separator Efficient filtering Efficient post acceleration 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 2

  4. Electron Beam Ion Source (EBIS) 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 3

  5. Assembly (trap setup) 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 4

  6. Assembly (electron gun) 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 5

  7. Assembly (electron collector) 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 6

  8. Commissioning Commissioning 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 7

  9. Radiative Recombination (RR) Electron capture Photon Free electron Continuum 2p 2p L ?p= ?e+ ?c 3 2 1 2 2s K 1s 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 8

  10. ?e= 5,5 keV ? = 4,5 T ?CDT = 2,5 kV Space charge 46 < q < 52 Image source: BSc thesis C. Warnecke 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 9

  11. Dielectronic Recombination (DR) Electron capture De-excitation Free electron Continuum 2p 2p L 3 2 Photon 1 2 2s ?p= ?? ?? K 1s 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 10

  12. Element: Ar ? = 6.0 T ?b = 64 mA Space charge revisited sp, tot = 47 eV 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 11

  13. Element: Ar ? = 6.0 T ?b = 64 mA Space charge compensation sp, e 200 eV ?e 75 m A ? 362 cm2 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 12

  14. Element: Ar ? = 6.0 T ?b = 125 mA Time evolution Trap capacity 5.7 109e Ar12+ 1.6 106 1.0 106 4.3 105 ms 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 13

  15. Conclusions Electron beam current of 1 A Current density in excess of 5000 A/cm Trap capacity of 1010elementary charges Outlook: Installation at beamline Tests at ARIEL facility Proposals for using an X-ray detector: On-line non-destructive characterization measurements demonstrated Using resonant processes for more efficient charge breeding 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 14

  16. The CANREB EBIS team 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 15

  17. Thank you for your attention. 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 16

  18. Challenges and Requirements 10 20 % in charge state distribution 100 Hz repetition rate Isotopes with lifetimes down to few ms 106ions/bunch, energy < 15 keV, long. length 1 s, 90 % acceptance Emittance energy < 14 keV ?, energy spread d? < 100 eV, bunch up to 1 ms. EPICS controls, compatible to TRIUMF control system ? ? 7 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 17

  19. Charge States 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 18

  20. Ionization Potentials 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 19

  21. Charge breeding of Cs 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 20

  22. Design of the CANREB EBIS Electron gun Radioactive ions 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 21

  23. Pierce emitter Cathode electrode Electron beam Cathode Anode 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 22

  24. Optical theory of e-beams Laminar model Brillouin flow Cathode as extended source Electrons emitted with transverse velocity of thermal distribution (Maxwellian) Uniform charge density No optical aberrations Optical model Herrmann theory Image source: G. Herrmann, Journal of Applied Physics 29, 127 (1958); http://dx.doi.org/10.1063/1.1723053 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 23

  25. Residual magnetic field 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 24

  26. Electron gun 0.25 emission surface Pierce-type emitter Improved coil design Ba dispenser cathode 612M Tungsten matrix Impregnation: Barium-calcium-aluminate BaO, CaO, Al2O3 Coating: 4000-6000 OsRu Adapted from Spectra-Mat, Inc. Image Source: Technical Bulletin 117, Spectra-Mat, Inc. 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 25

  27. Emission characteristics Child s Law: ? = 3 2 1 2 ? ?e ? ?2 9 ? Perveance: 3 2 ? = ?1 ? Image source: BSc thesis C. Warnecke 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 26

  28. Simulation 1. 2. 3. Electrostatics and Magnetostatics Electron Trajectory Calculation Integration of Ion Trajectories and Ionization Rate-Equations Charge breeding of Cs (mass 133 u) 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 27

  29. Major HV sections 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 28

  30. CAD model of the EBIS 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 29

  31. CAD model of the neutral gas injection system 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 30

  32. CAD model of the trap electrodes 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 31

  33. CAD model of the electron collector 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 32

  34. Simulation of ion trajectories 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 33

  35. Shift of DR resonances 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 34

  36. Extraction tests 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 35

  37. Element: Fe ? = 6.0 T ?b = 200 mA Injection and charge breeding tests 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 36

  38. Beam radius estimation Infinitely long electron beam of uniform charge density ?e: ?2? = ?e Solving for ?e: ?res= ? 0 ?e= 89.66 m ?res= ? ?e ?e= 54.38 m ?e 75 m ?0 1 ? ?? ?? ??? = ?e ? ?0 The solution for ? is: Using: ? ? 1 ?b 2 ?0= ?2 2+ ln?e 4??0 ? ?D+ ?0 2 1 , ? ?e 2 ?e ?D ?2 ?? = ? = ?0 1 ?e?02+ 1 ?D+ ?0ln 2, EURISOL Town Meeting 2018, INFN - Pisa ? ?e 3 July 2018 37 ?D

  39. Current density estimation Using Herrmann theory to estimate ?c: Using: +?c2?c4 ?2?B4 1 4+8?e?B?c?c2 ?2?2?B4 1 2+ 2?e?b ??0 ???2 ?H= ?B ?B= ?c 3.282 mT 2 ?? ? = ?0 1 ?e?02+ 1 Using this result to calculate the beam radius at ?b= 1 A: ?H= 76.25 m The resulting current density is: 1 A ? 76.25 m2= 5474 A ? = cm2 3 July 2018 EURISOL Town Meeting 2018, INFN - Pisa 38
