2021 OpenCV
cvimage.py OpenCV webcam ipCam

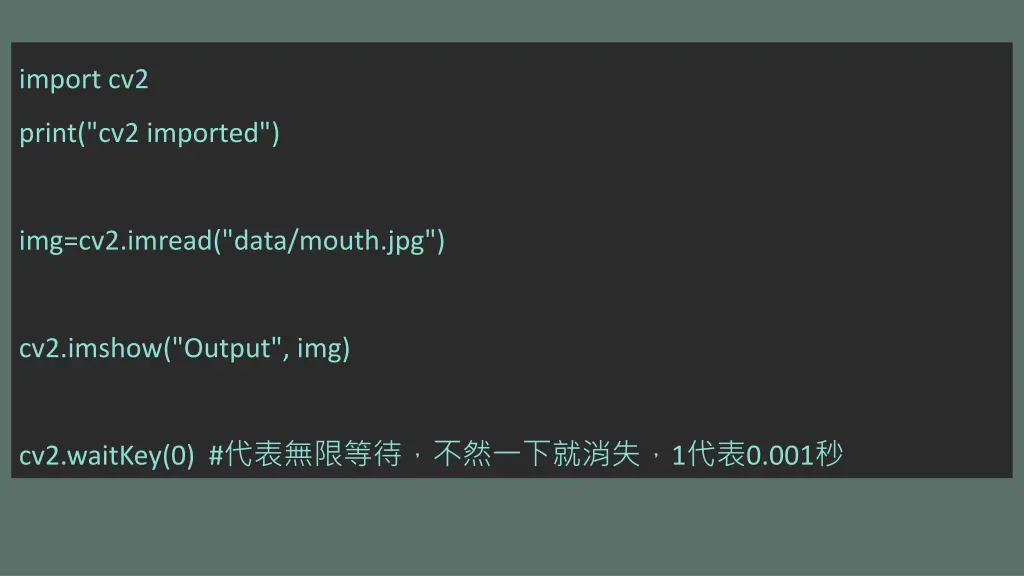

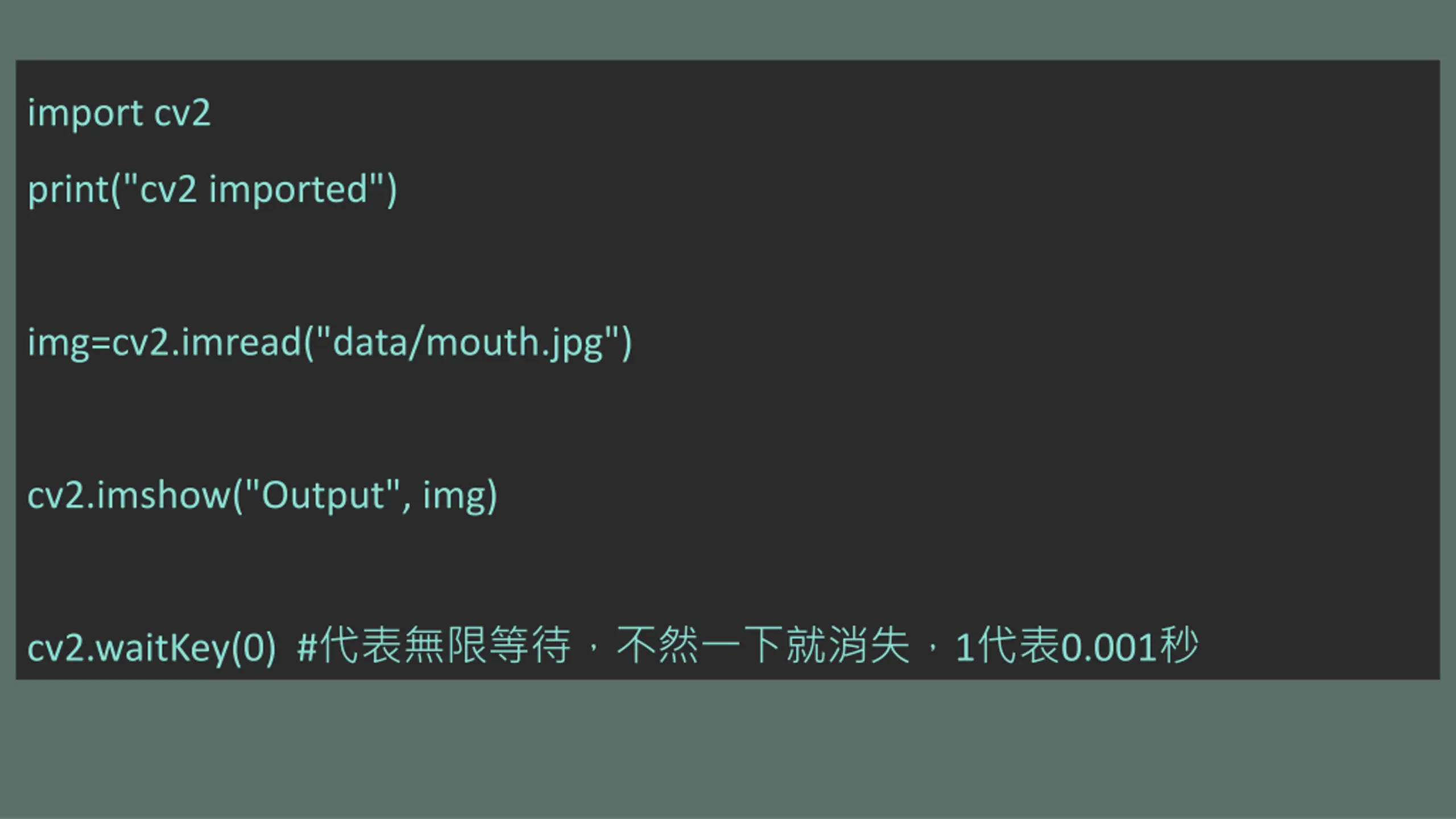

import cv2 print("cv2 imported") img=cv2.imread("data/mouth.jpg") cv2.imshow("Output", img) cv2.waitKey(0) # 1 0.001

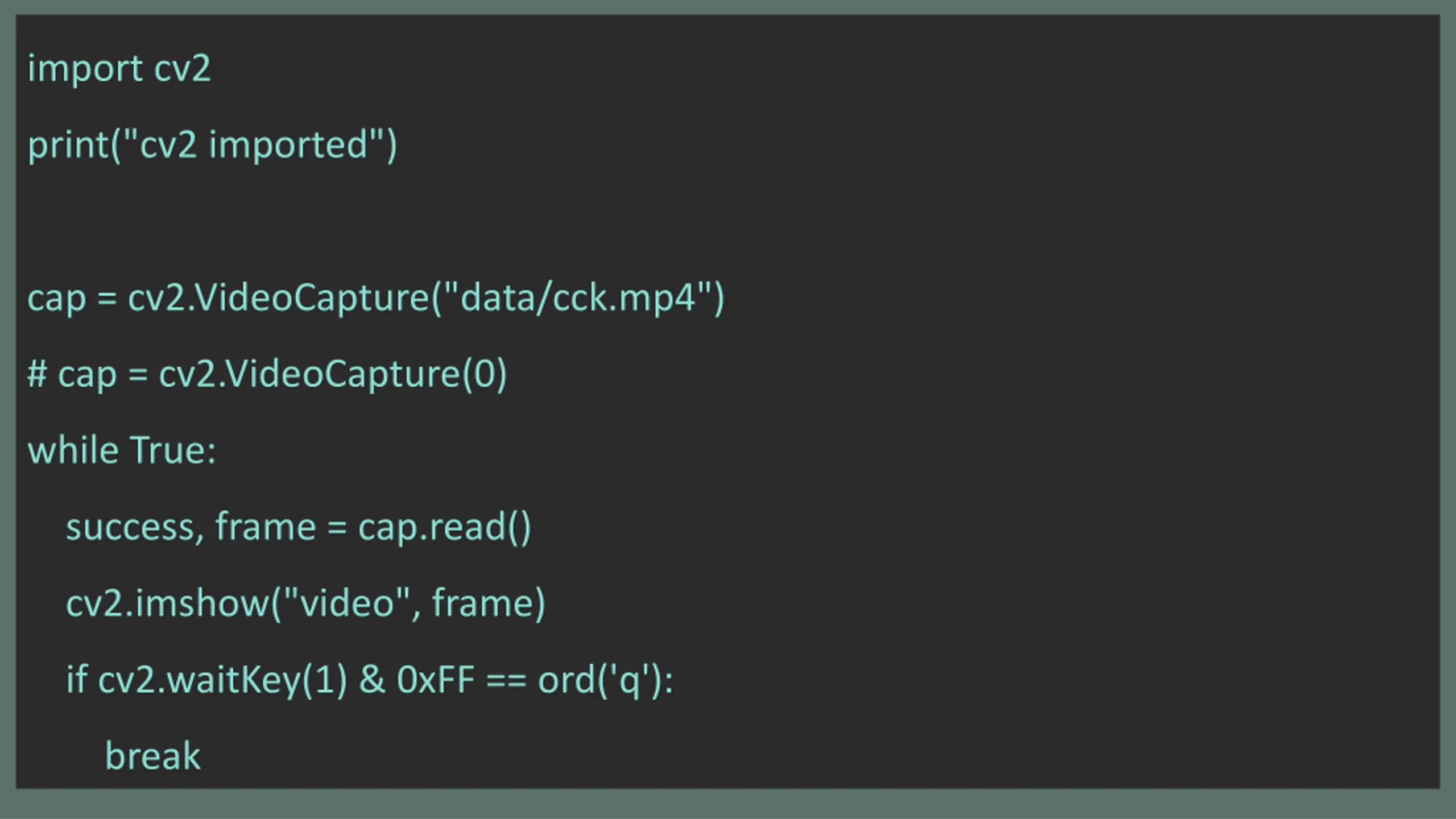

import cv2 print("cv2 imported") cap = cv2.VideoCapture("data/cck.mp4") # cap = cv2.VideoCapture(0) while True: success, frame = cap.read() cv2.imshow("video", frame) if cv2.waitKey(1) & 0xFF == ord('q'): break
cvimage2.py OpenCV

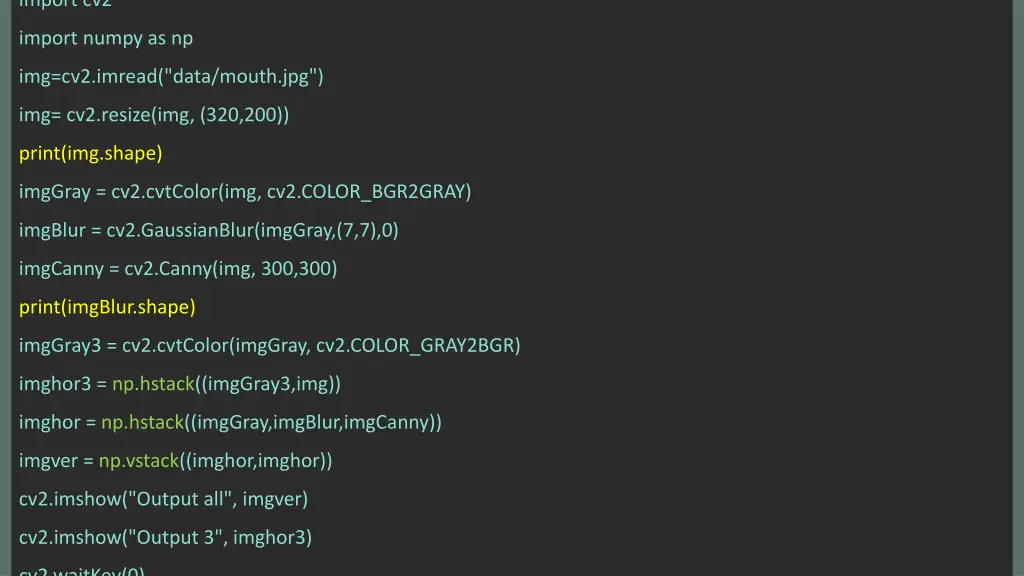

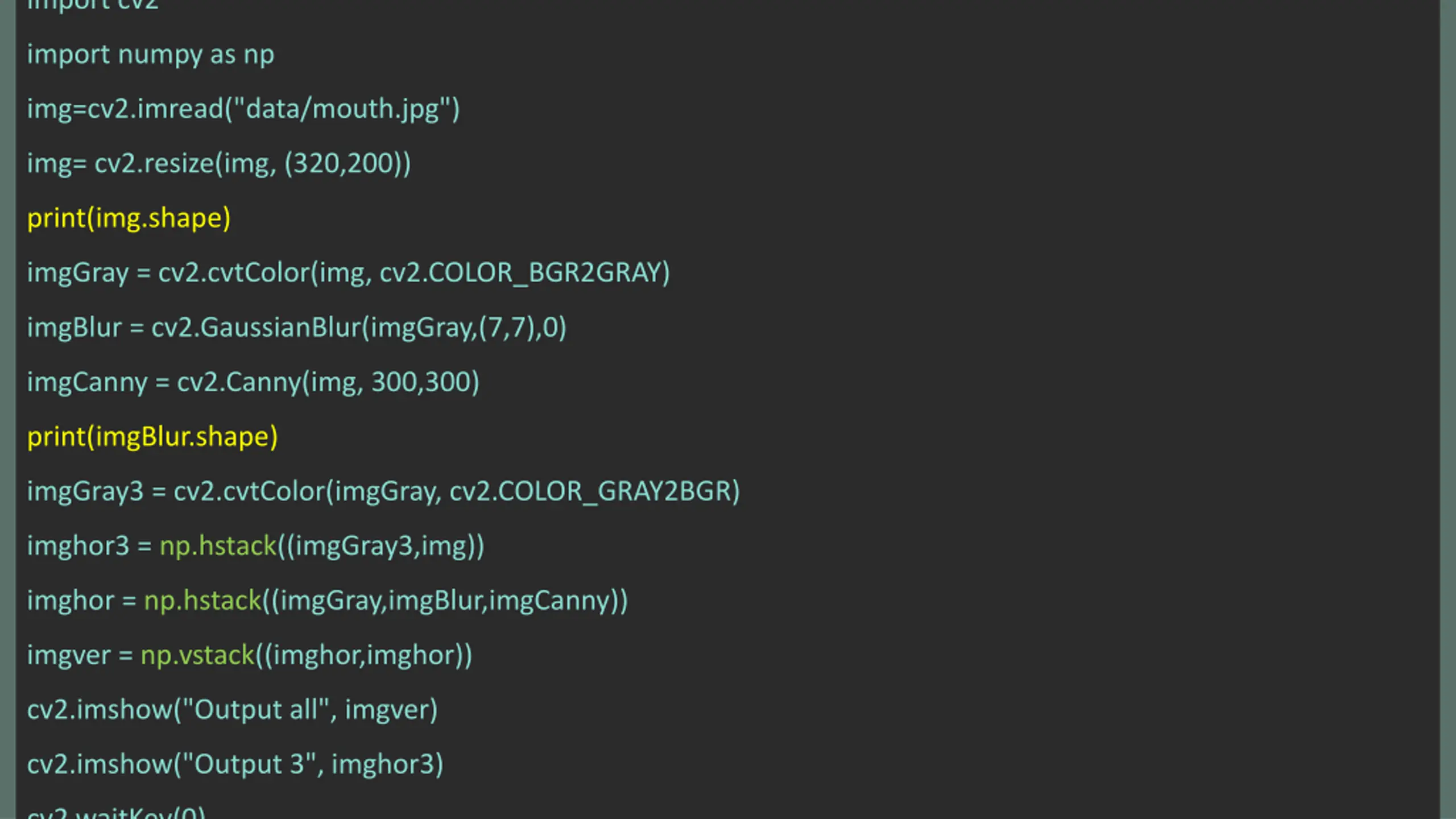

import cv2 import numpy as np img=cv2.imread("data/mouth.jpg") img= cv2.resize(img, (320,200)) print(img.shape) imgGray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) imgBlur = cv2.GaussianBlur(imgGray,(7,7),0) imgCanny = cv2.Canny(img, 300,300) print(imgBlur.shape) imgGray3 = cv2.cvtColor(imgGray, cv2.COLOR_GRAY2BGR) imghor3 = np.hstack((imgGray3,img)) imghor = np.hstack((imgGray,imgBlur,imgCanny)) imgver = np.vstack((imghor,imghor)) cv2.imshow("Output all", imgver) cv2.imshow("Output 3", imghor3) cv2.waitKey(0)

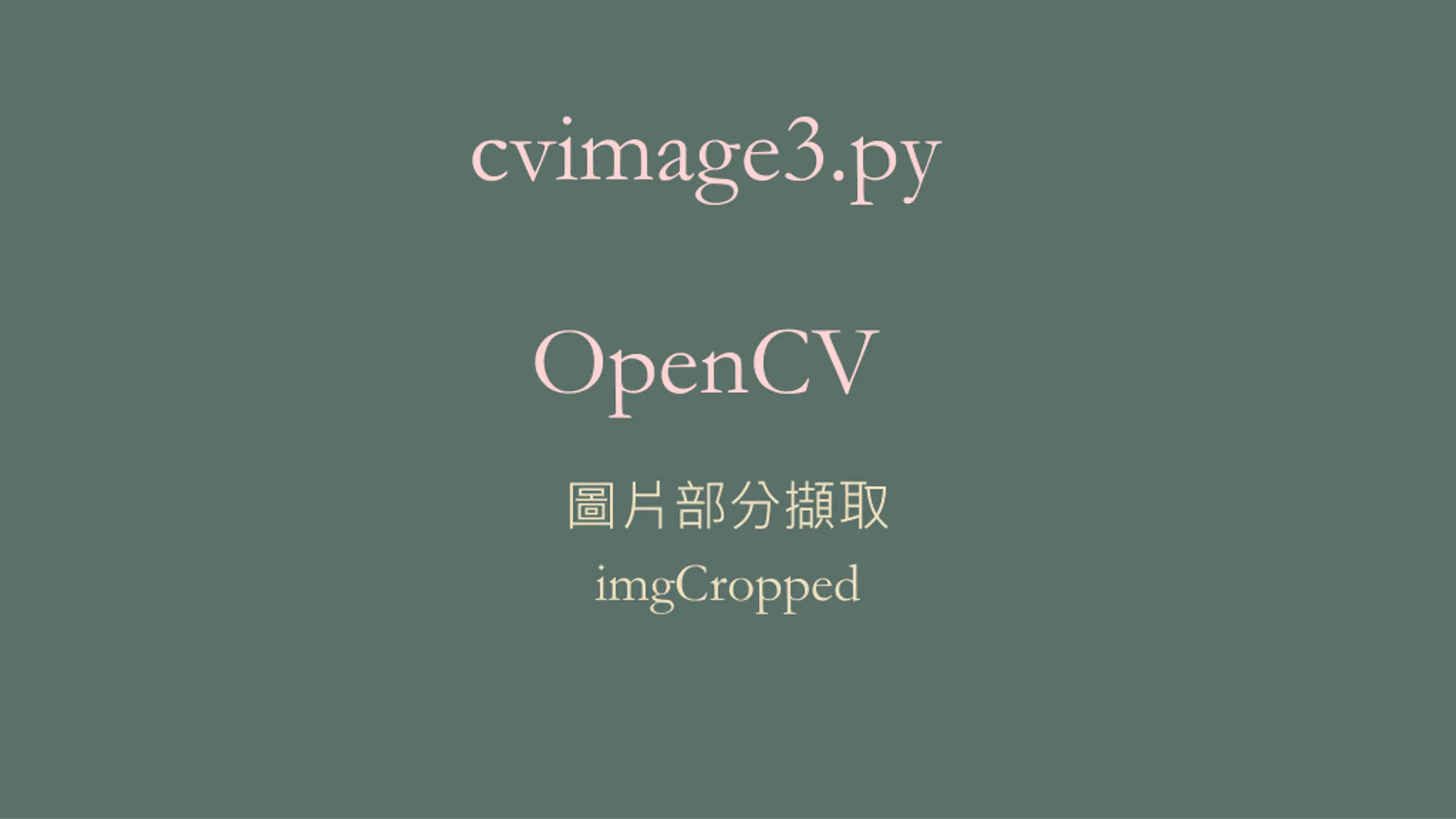

cvimage3.py OpenCV imgCropped

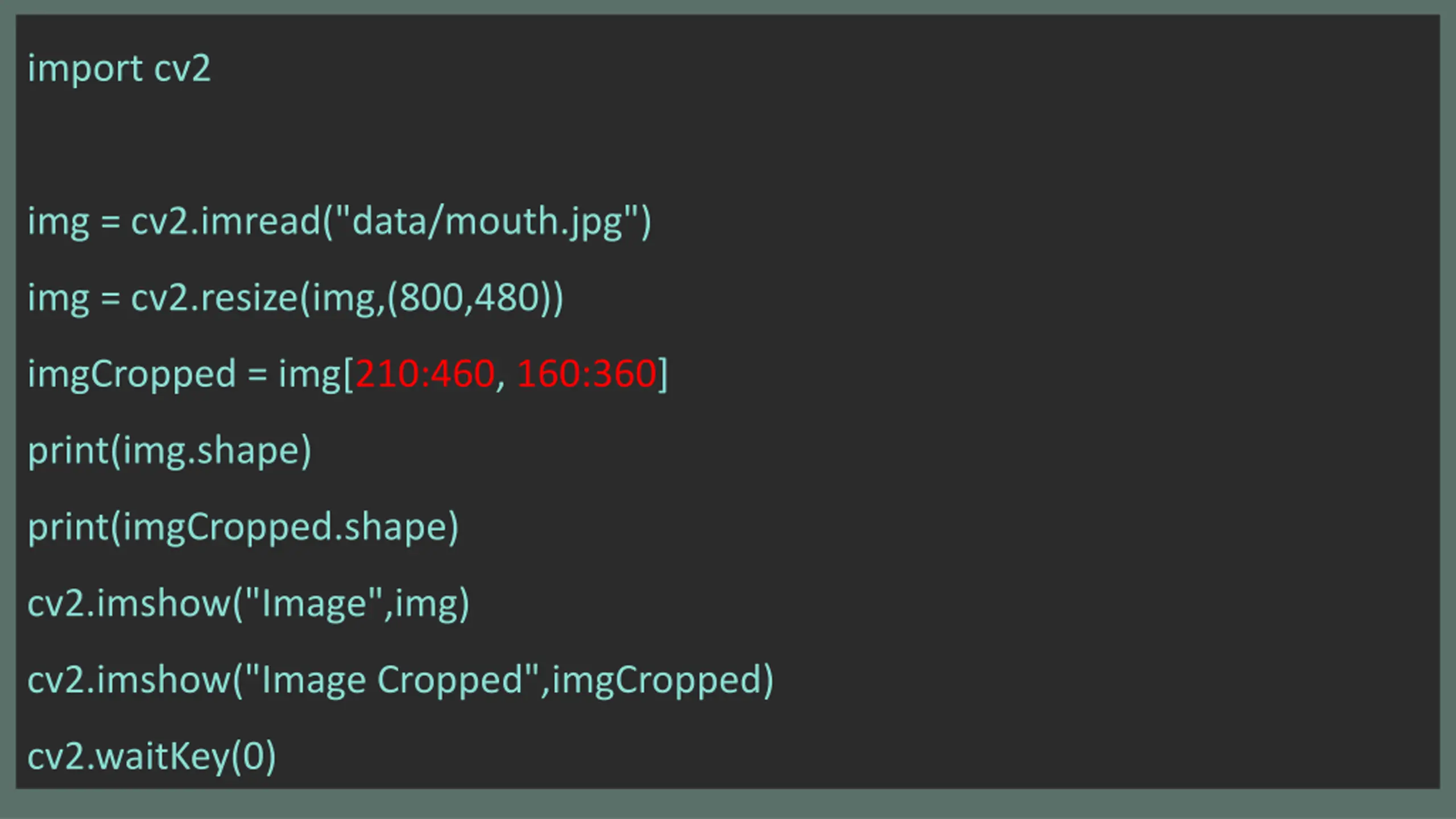

import cv2 img = cv2.imread("data/mouth.jpg") img = cv2.resize(img,(800,480)) imgCropped = img[210:460, 160:360] print(img.shape) print(imgCropped.shape) cv2.imshow("Image",img) cv2.imshow("Image Cropped",imgCropped) cv2.waitKey(0)

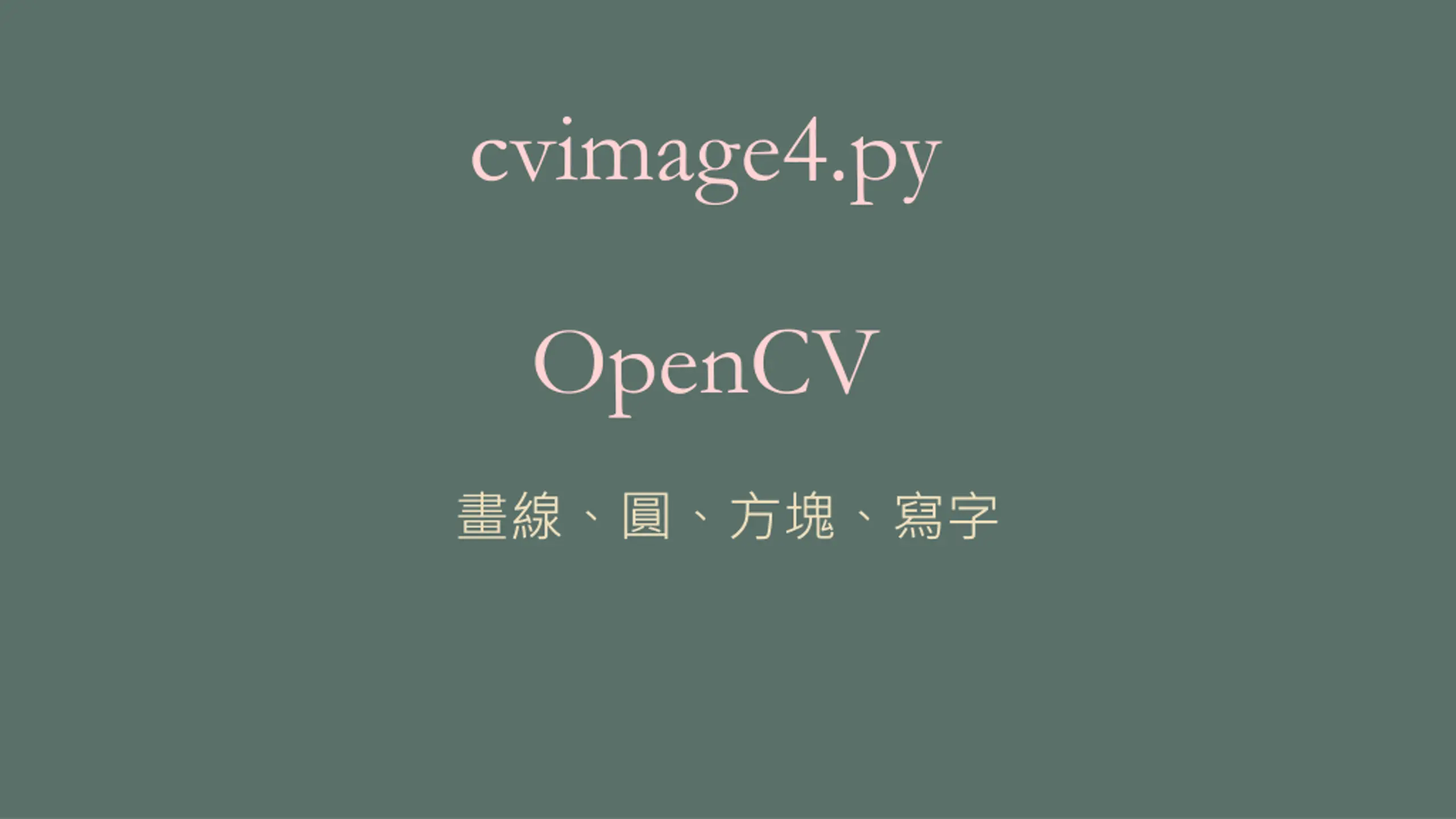

cvimage4.py OpenCV

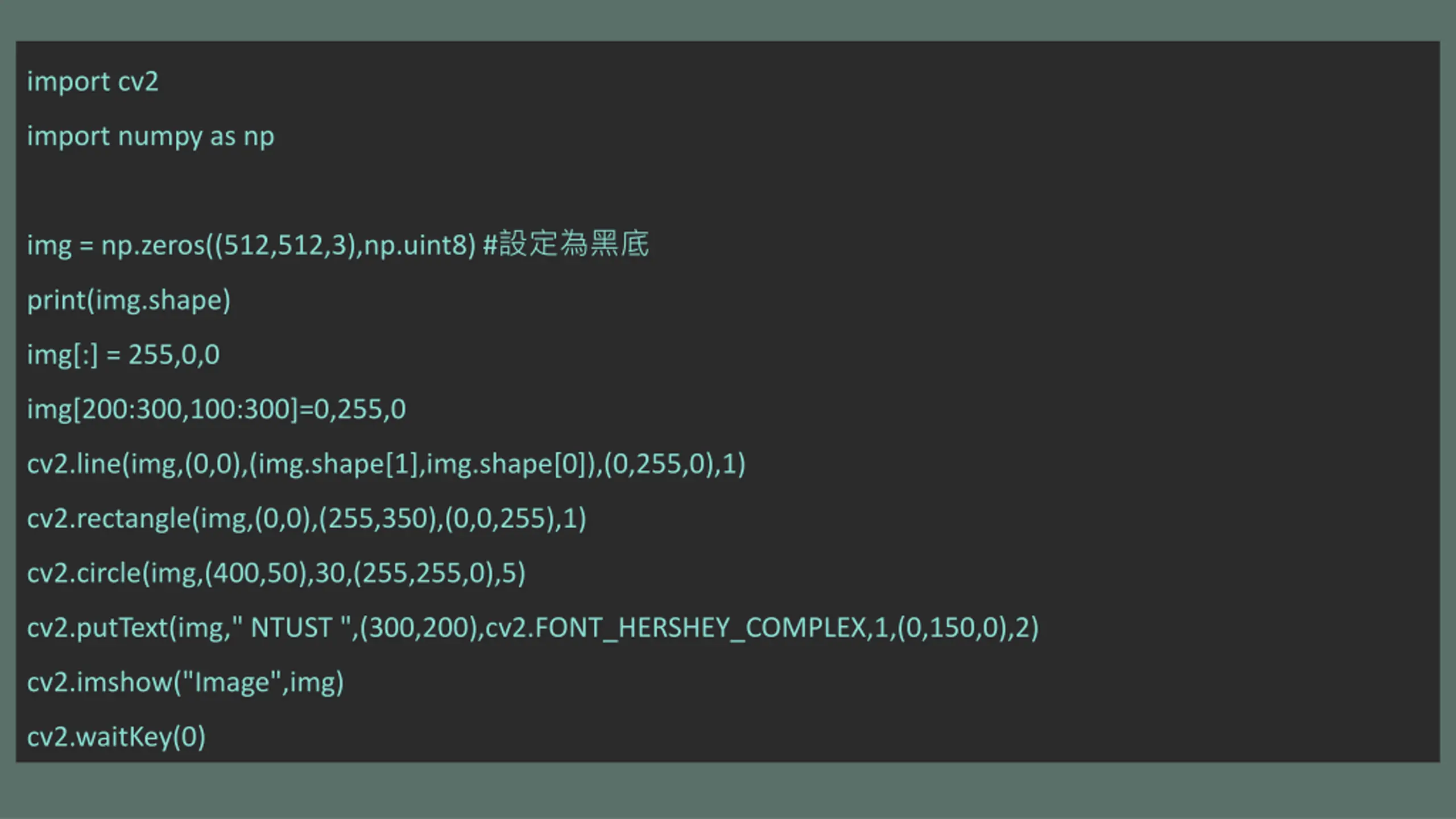

import cv2 import numpy as np img = np.zeros((512,512,3),np.uint8) # print(img.shape) img[:] = 255,0,0 img[200:300,100:300]=0,255,0 cv2.line(img,(0,0),(img.shape[1],img.shape[0]),(0,255,0),1) cv2.rectangle(img,(0,0),(255,350),(0,0,255),1) cv2.circle(img,(400,50),30,(255,255,0),5) cv2.putText(img," NTUST ",(300,200),cv2.FONT_HERSHEY_COMPLEX,1,(0,150,0),2) cv2.imshow("Image",img) cv2.waitKey(0)

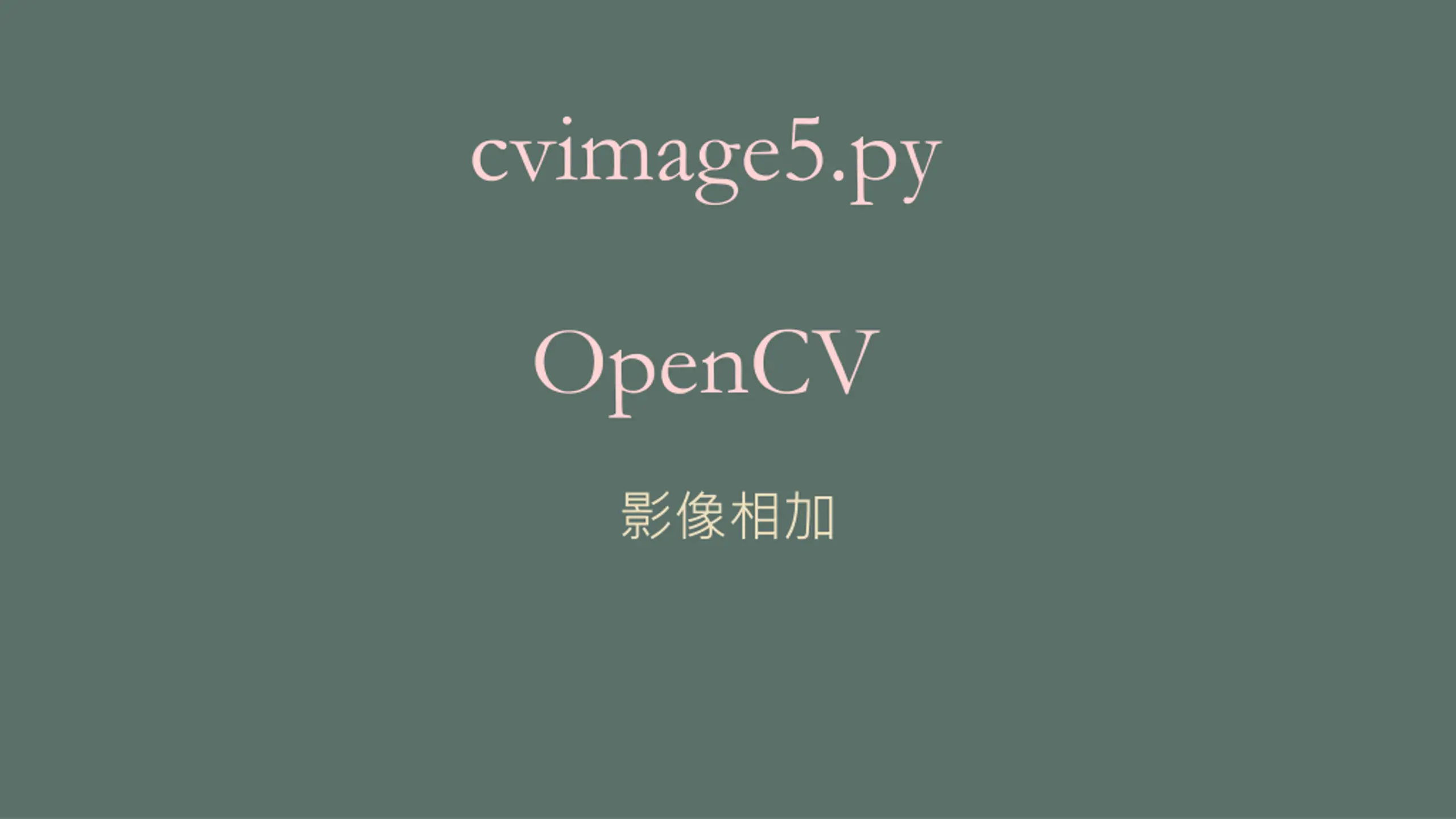

cvimage5.py OpenCV

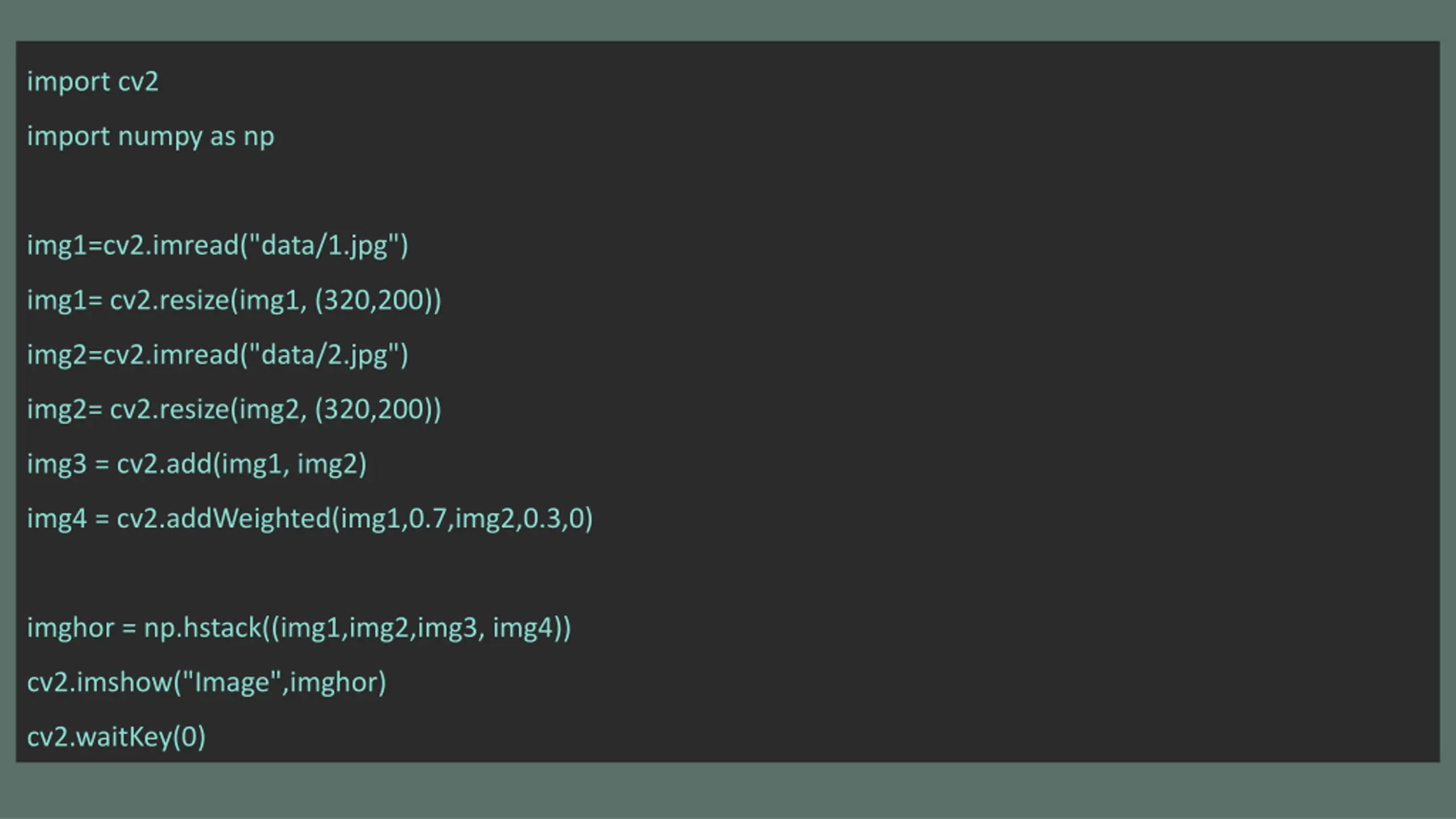

import cv2 import numpy as np img1=cv2.imread("data/1.jpg") img1= cv2.resize(img1, (320,200)) img2=cv2.imread("data/2.jpg") img2= cv2.resize(img2, (320,200)) img3 = cv2.add(img1, img2) img4 = cv2.addWeighted(img1,0.7,img2,0.3,0) imghor = np.hstack((img1,img2,img3, img4)) cv2.imshow("Image",imghor) cv2.waitKey(0)
cvimage6.py OpenCV bar

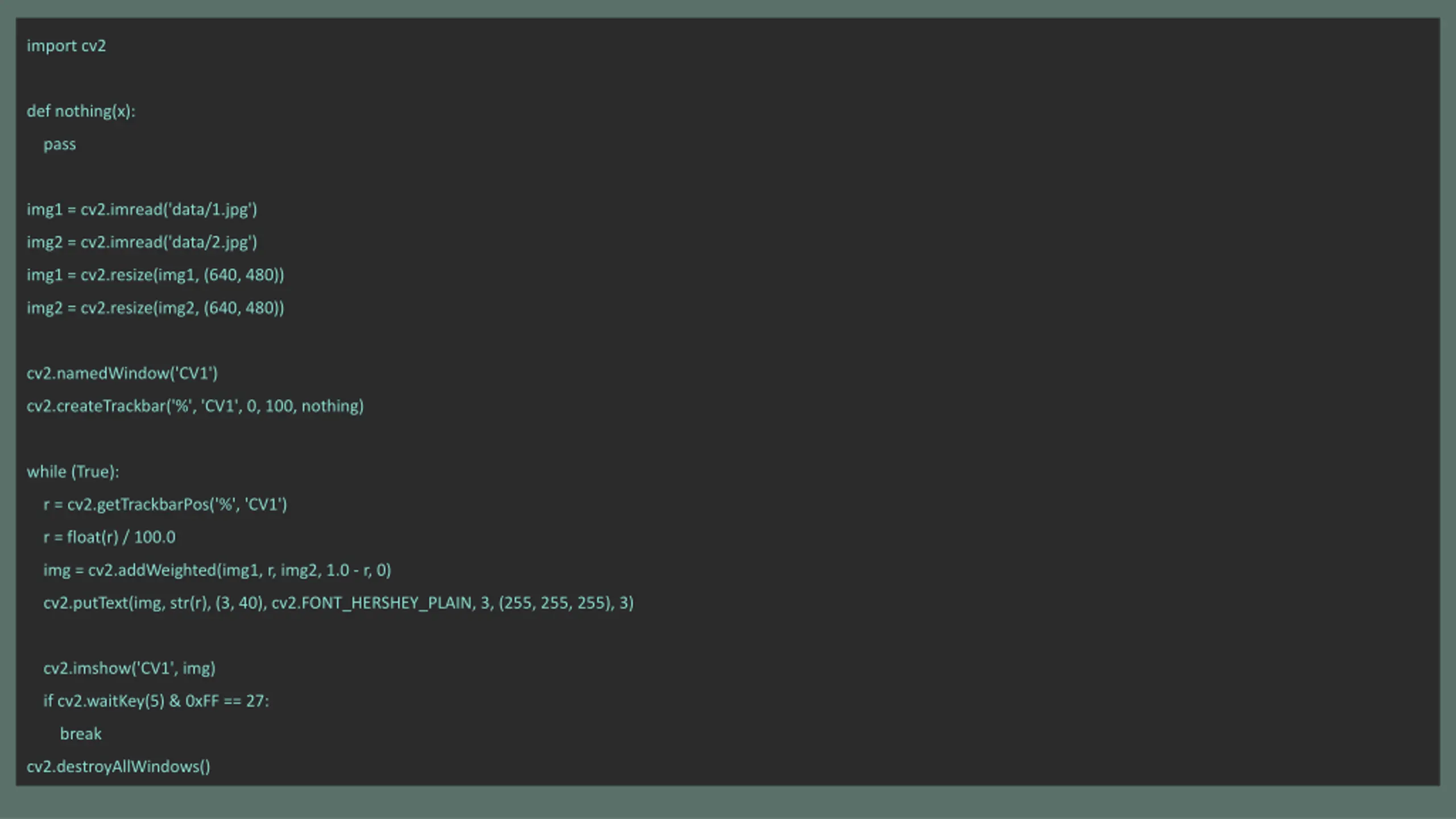

import cv2 def nothing(x): pass img1 = cv2.imread('data/1.jpg') img2 = cv2.imread('data/2.jpg') img1 = cv2.resize(img1, (640, 480)) img2 = cv2.resize(img2, (640, 480)) cv2.namedWindow('CV1') cv2.createTrackbar('%', 'CV1', 0, 100, nothing) while (True): r = cv2.getTrackbarPos('%', 'CV1') r = float(r) / 100.0 img = cv2.addWeighted(img1, r, img2, 1.0 - r, 0) cv2.putText(img, str(r), (3, 40), cv2.FONT_HERSHEY_PLAIN, 3, (255, 255, 255), 3) cv2.imshow('CV1', img) if cv2.waitKey(5) & 0xFF == 27: break cv2.destroyAllWindows()

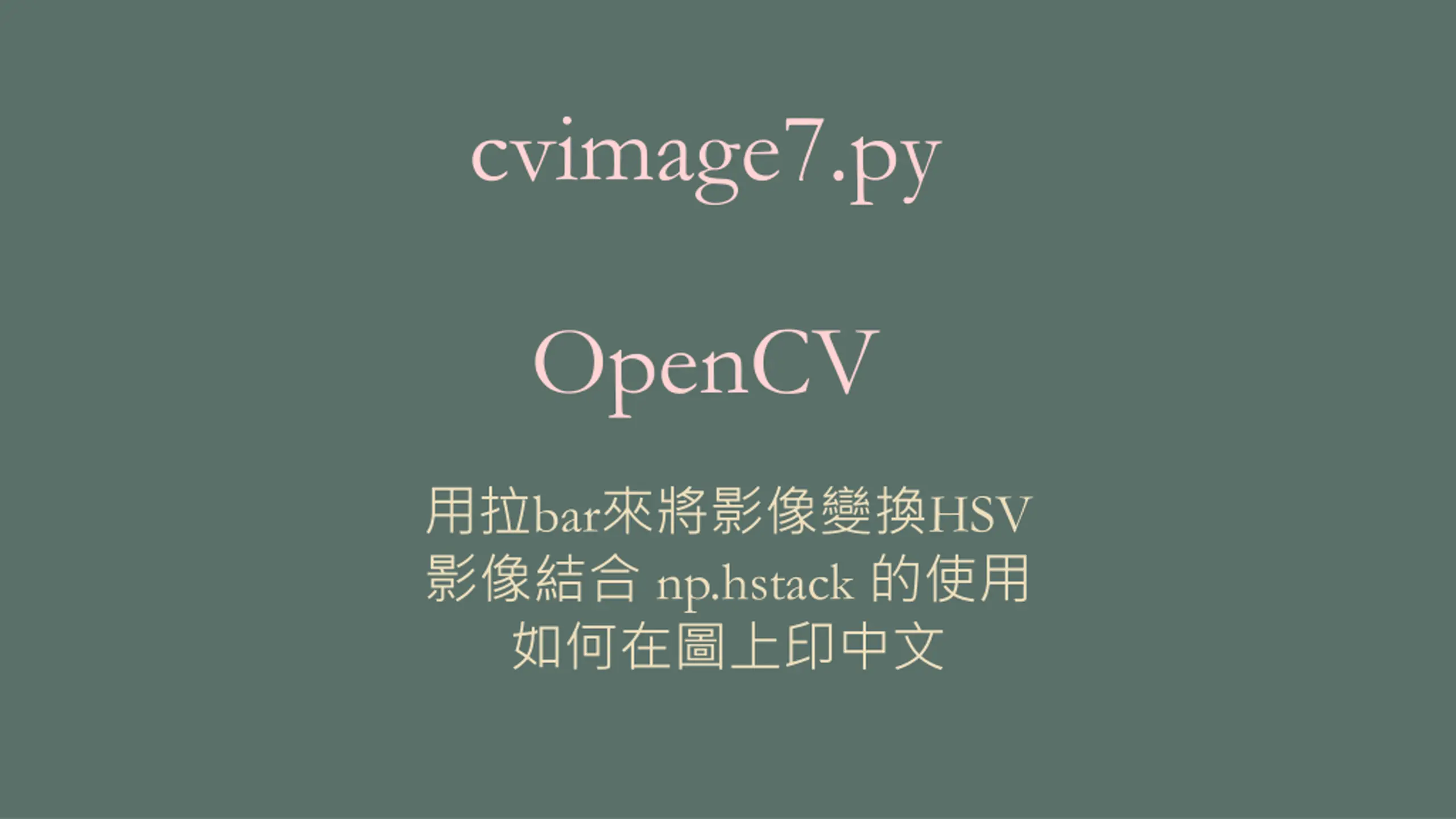

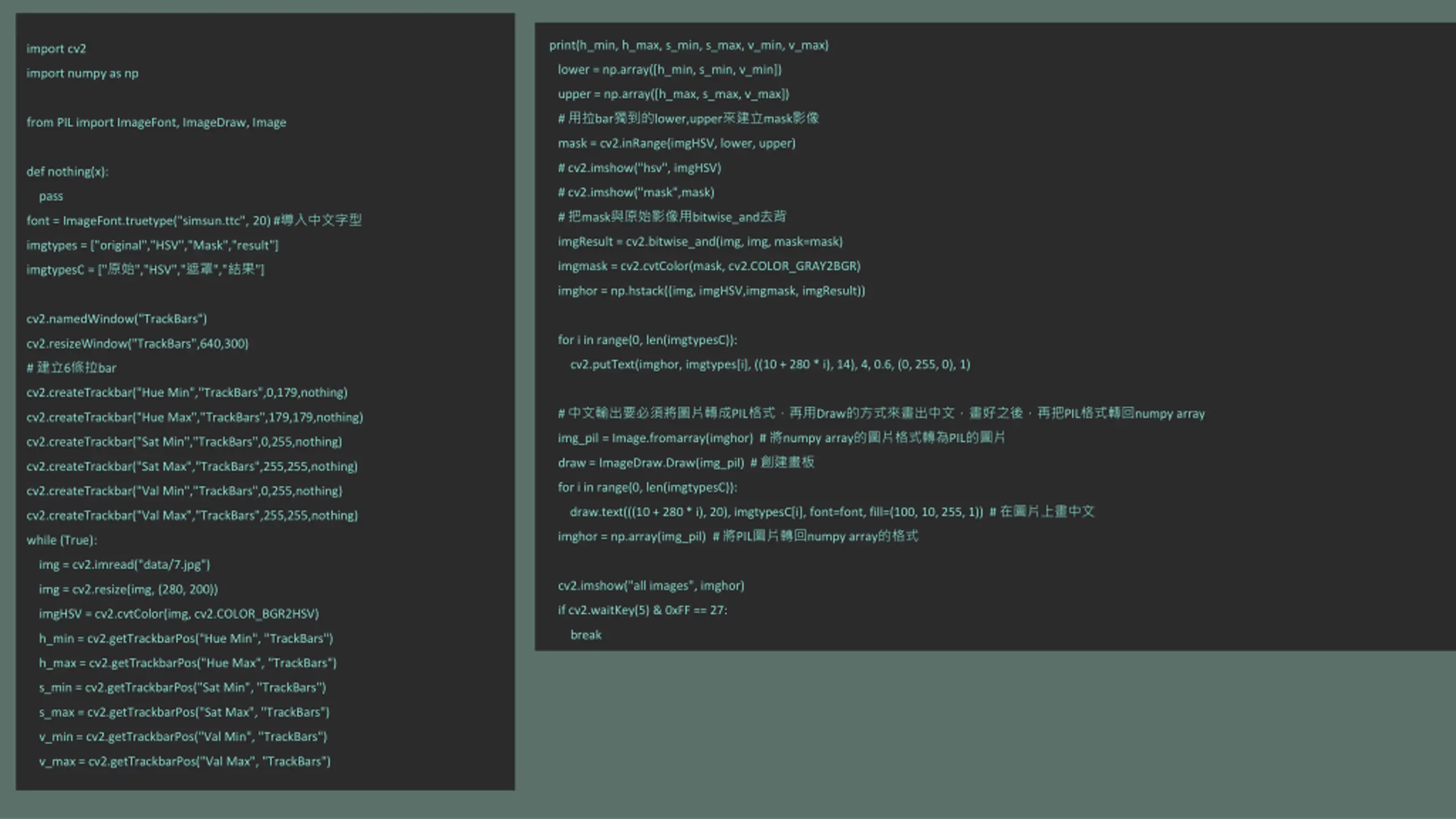

cvimage7.py OpenCV bar HSV np.hstack
print(h_min, h_max, s_min, s_max, v_min, v_max) import cv2 lower = np.array([h_min, s_min, v_min]) import numpy as np upper = np.array([h_max, s_max, v_max]) # bar lower,upper mask from PIL import ImageFont, ImageDraw, Image mask = cv2.inRange(imgHSV, lower, upper) # cv2.imshow("hsv", imgHSV) def nothing(x): # cv2.imshow("mask",mask) # mask bitwise_and pass font = ImageFont.truetype("simsun.ttc", 20) # imgResult = cv2.bitwise_and(img, img, mask=mask) imgtypes = ["original","HSV","Mask","result"] imgtypesC = [" ","HSV"," "," "] imgmask = cv2.cvtColor(mask, cv2.COLOR_GRAY2BGR) imghor = np.hstack((img, imgHSV,imgmask, imgResult)) cv2.namedWindow("TrackBars") for i in range(0, len(imgtypesC)): cv2.resizeWindow("TrackBars",640,300) # 6 bar cv2.putText(imghor, imgtypes[i], ((10 + 280 * i), 14), 4, 0.6, (0, 255, 0), 1) cv2.createTrackbar("Hue Min","TrackBars",0,179,nothing) # PIL Draw PIL numpy array img_pil = Image.fromarray(imghor) # numpy array PIL draw = ImageDraw.Draw(img_pil) # cv2.createTrackbar("Hue Max","TrackBars",179,179,nothing) cv2.createTrackbar("Sat Min","TrackBars",0,255,nothing) cv2.createTrackbar("Sat Max","TrackBars",255,255,nothing) for i in range(0, len(imgtypesC)): draw.text(((10 + 280 * i), 20), imgtypesC[i], font=font, fill=(100, 10, 255, 1)) # imghor = np.array(img_pil) # PIL numpy array cv2.createTrackbar("Val Min","TrackBars",0,255,nothing) cv2.createTrackbar("Val Max","TrackBars",255,255,nothing) while (True): img = cv2.imread("data/7.jpg") cv2.imshow("all images", imghor) img = cv2.resize(img, (280, 200)) if cv2.waitKey(5) & 0xFF == 27: imgHSV = cv2.cvtColor(img, cv2.COLOR_BGR2HSV) break h_min = cv2.getTrackbarPos("Hue Min", "TrackBars") h_max = cv2.getTrackbarPos("Hue Max", "TrackBars") s_min = cv2.getTrackbarPos("Sat Min", "TrackBars") s_max = cv2.getTrackbarPos("Sat Max", "TrackBars") v_min = cv2.getTrackbarPos("Val Min", "TrackBars") v_max = cv2.getTrackbarPos("Val Max", "TrackBars")

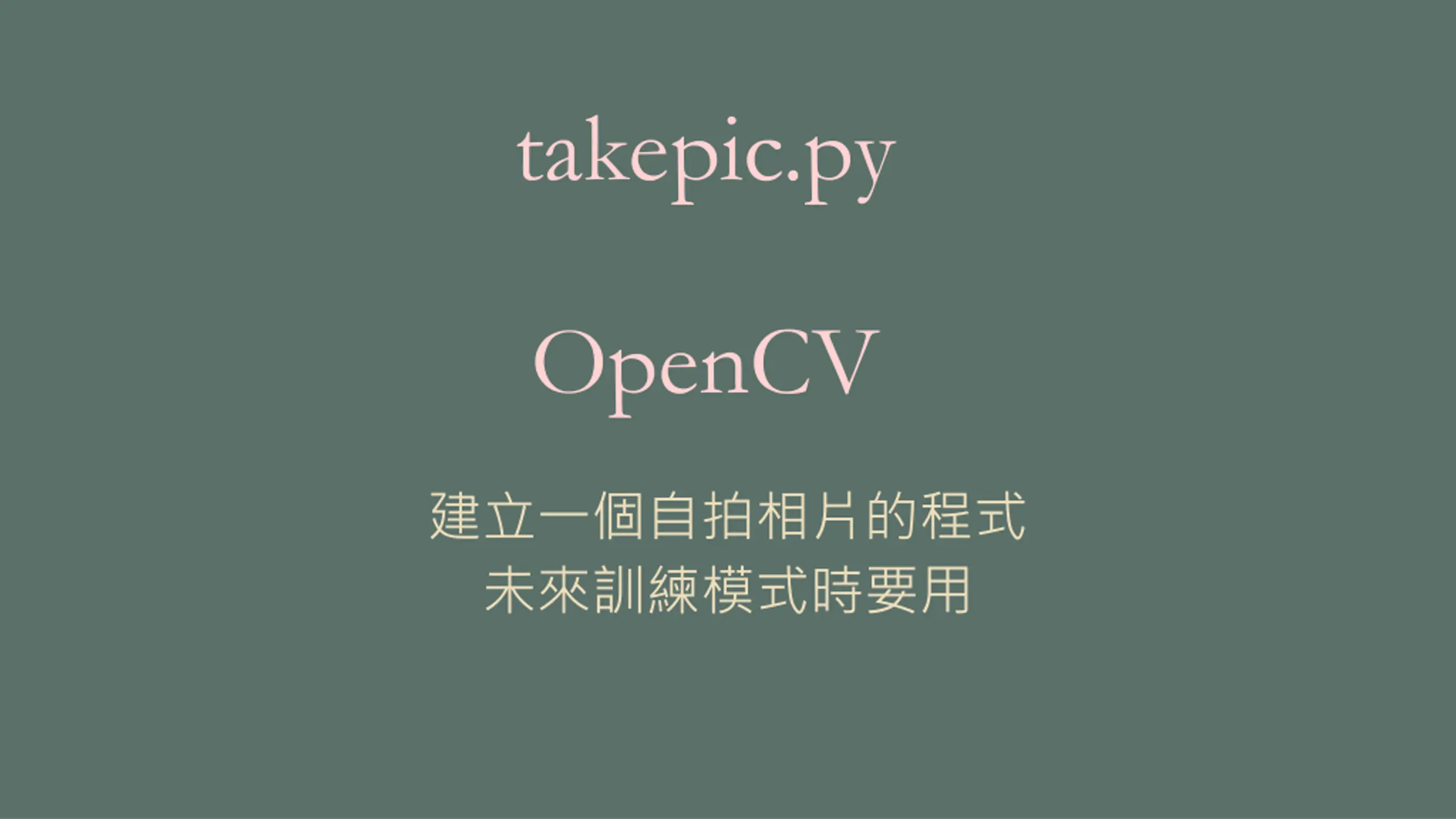

takepic.py OpenCV

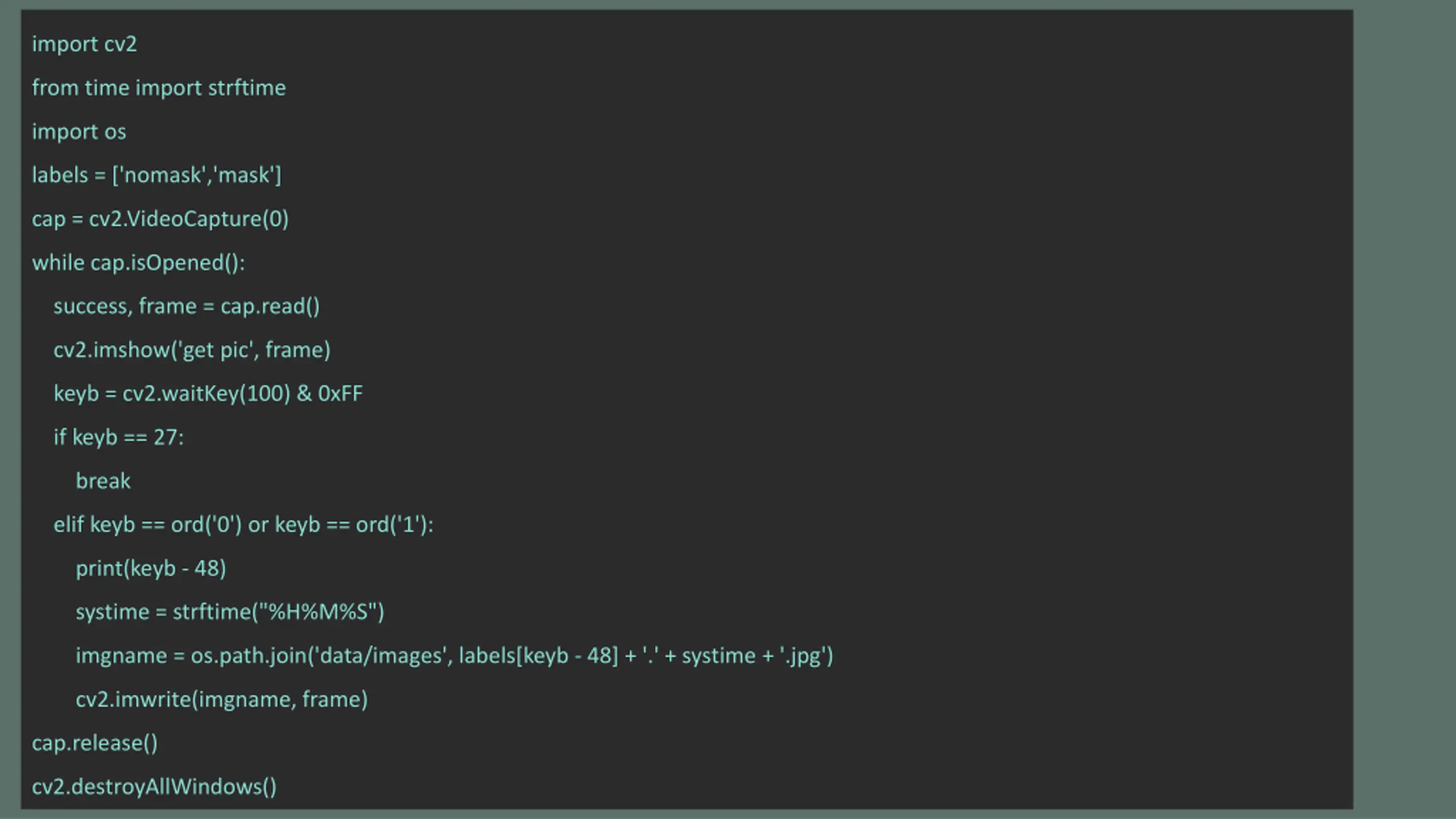

import cv2 from time import strftime import os labels = ['nomask','mask'] cap = cv2.VideoCapture(0) while cap.isOpened(): success, frame = cap.read() cv2.imshow('get pic', frame) keyb = cv2.waitKey(100) & 0xFF if keyb == 27: break elif keyb == ord('0') or keyb == ord('1'): print(keyb - 48) systime = strftime("%H%M%S") imgname = os.path.join('data/images', labels[keyb - 48] + '.' + systime + '.jpg') cv2.imwrite(imgname, frame) cap.release() cv2.destroyAllWindows()
