A-29 Emergency Procedure - Erect Spins Revision 19

Slide Note
Embed
Share

Recognize an erect spin as an oscillatory movement about the three aircraft axes with high and low speed AOA. Follow the Corrective Action Procedures (C.A.P.) of throttle idle, full opposite rudder direction, and stick neutral. When the spins stop, maintain rudder neutral, adjust throttle and stick as required. Avoid abrupt actions to prevent new stall or spin entry. Stay safe during emergency situations involving erect spins.


Uploaded on Aug 25, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

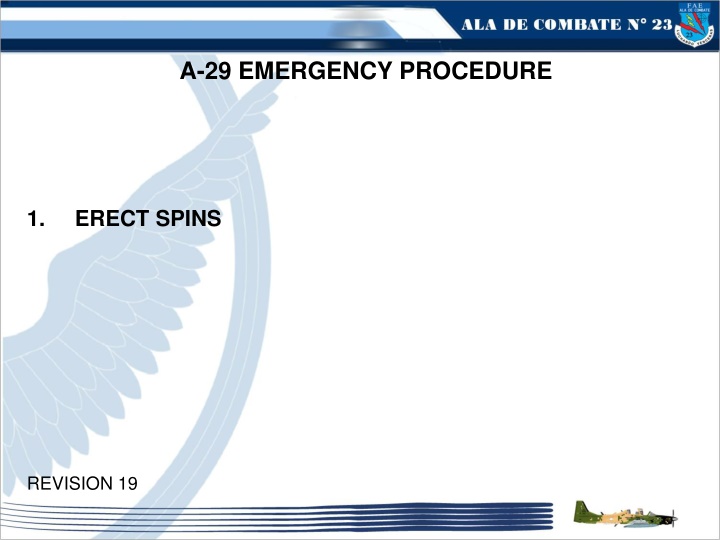

  1. A-29 EMERGENCY PROCEDURE 1. ERECT SPINS REVISION 19

  2. 1. ERECT SPINS The spin shall be recognized as an oscillatory movement about the three aircraft axes, with AOA high and low speed. In the erect spin the pilot feels positive G. REVISION 19

  3. 1. ERECT SPINS Cont. C.A.P.: 1. THROTTLE IDLE 2. RUDDER DIRECTION. FULL OPPOSITE SPIN 3. STICK NEUTRAL When the spins stop: 4. RUDDER NEUTRAL 5. THROTTLE AS REQUIRED 6. STICK AS REQUIRED REVISION 19

  4. 1. ERECT SPINS Cont. WARNING DO ABRUPTLY. THIS MAY CAUSE A NEW STALL OR SPIN ENTRY. NOT PULL THE STICK REVISION 19
