2.4683 Sheet Suppliers in Mumbai
2.4683 / Alloy 188 / Haynes 188 is a cobalt-nickel-chromium-tungsten alloy with excellent resistance to oxidizing environments up to 1095 u00b0 C with excellent high temperature resistance for long-term use and excellent resistance to hot corrosion of sulphate deposit. It is easily manufactured with conventional techniques. This cobalt-based superalloy has good forming and welding properties.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D

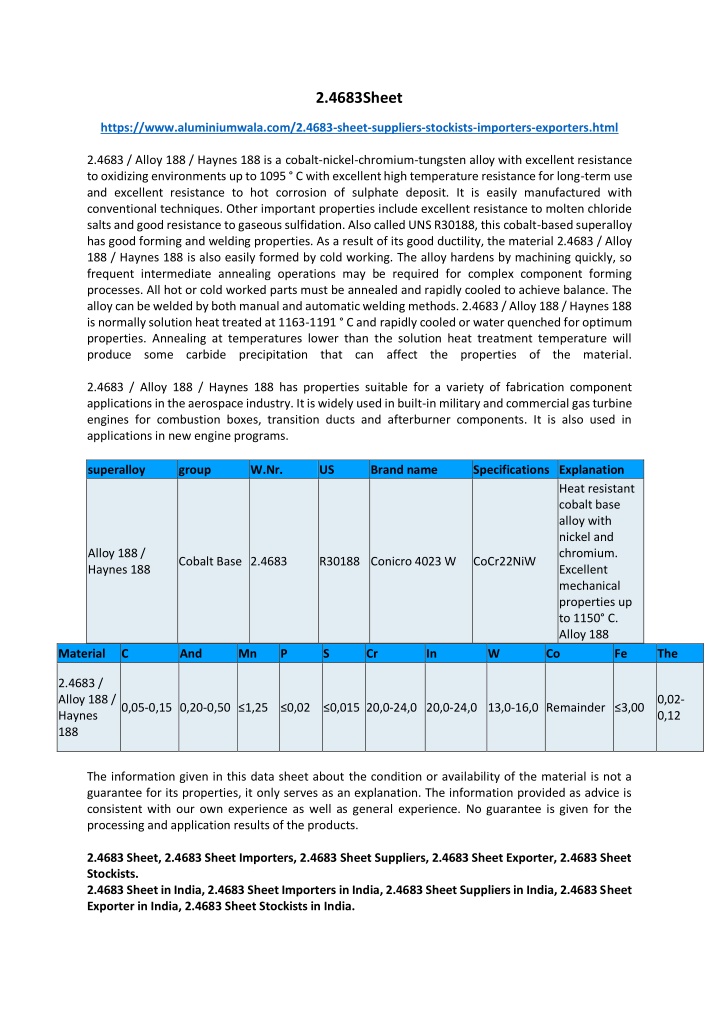

Presentation Transcript
2.4683Sheet https://www.aluminiumwala.com/2.4683-sheet-suppliers-stockists-importers-exporters.html 2.4683 / Alloy 188 / Haynes 188 is a cobalt-nickel-chromium-tungsten alloy with excellent resistance to oxidizing environments up to 1095 C with excellent high temperature resistance for long-term use and excellent resistance to hot corrosion of sulphate deposit. It is easily manufactured with conventional techniques. Other important properties include excellent resistance to molten chloride salts and good resistance to gaseous sulfidation. Also called UNS R30188, this cobalt-based superalloy has good forming and welding properties. As a result of its good ductility, the material 2.4683 / Alloy 188 / Haynes 188 is also easily formed by cold working. The alloy hardens by machining quickly, so frequent intermediate annealing operations may be required for complex component forming processes. All hot or cold worked parts must be annealed and rapidly cooled to achieve balance. The alloy can be welded by both manual and automatic welding methods. 2.4683 / Alloy 188 / Haynes 188 is normally solution heat treated at 1163-1191 C and rapidly cooled or water quenched for optimum properties. Annealing at temperatures lower than the solution heat treatment temperature will produce some carbide precipitation that can affect the properties of the material. 2.4683 / Alloy 188 / Haynes 188 has properties suitable for a variety of fabrication component applications in the aerospace industry. It is widely used in built-in military and commercial gas turbine engines for combustion boxes, transition ducts and afterburner components. It is also used in applications in new engine programs. superalloy group W.Nr. US Brand name Specifications Explanation Heat resistant cobalt base alloy with nickel and chromium. Excellent mechanical properties up to 1150 C. Alloy 188 Co Alloy 188 / Haynes 188 Cobalt Base 2.4683 R30188 Conicro 4023 W CoCr22NiW Material C And Mn P S Cr In W Fe The 2.4683 / Alloy 188 / Haynes 188 0,02- 0,12 0,05-0,15 0,20-0,50 1,25 0,02 0,015 20,0-24,0 20,0-24,0 13,0-16,0 Remainder 3,00 The information given in this data sheet about the condition or availability of the material is not a guarantee for its properties, it only serves as an explanation. The information provided as advice is consistent with our own experience as well as general experience. No guarantee is given for the processing and application results of the products. 2.4683 Sheet, 2.4683 Sheet Importers, 2.4683 Sheet Suppliers, 2.4683 Sheet Exporter, 2.4683 Sheet Stockists. 2.4683 Sheet in India, 2.4683 Sheet Importers in India, 2.4683 Sheet Suppliers in India, 2.4683 Sheet Exporter in India, 2.4683 Sheet Stockists in India.
2.4683 Sheet in Mumbai, 2.4683 Sheet Importers in Mumbai, 2.4683 Sheet Suppliers in Mumbai, 2.4683 Sheet Exporters in Mumbai, 2.4683 Sheet Stockists in Mumbai. SAC THICKNESS [mm] WIDTH [mm] 0,5 - 8 300 9 - 30 production width production length STRIP THICKNESS [mm] WIDTH [mm] KANGAL I.D. [mm] 0,10 - 0,5 15 - 250 125, 175, 300 0,50 - 1,2 20 - 250 1,2 - 8,0 20 - 270 ROD PRINT [mm] 10 - 350 LENGTH [mm] 3000 - cold rolling hot rolling COIL WEIGHT [kg] max. 250 max. 500 max. 800 300, 400, 500 LENGTH [mm] 1000 - 5000 For More Details Contact Us : +91 (916 734 7029) If any enquiries please contact us our support team will connect you as soon as possible.
